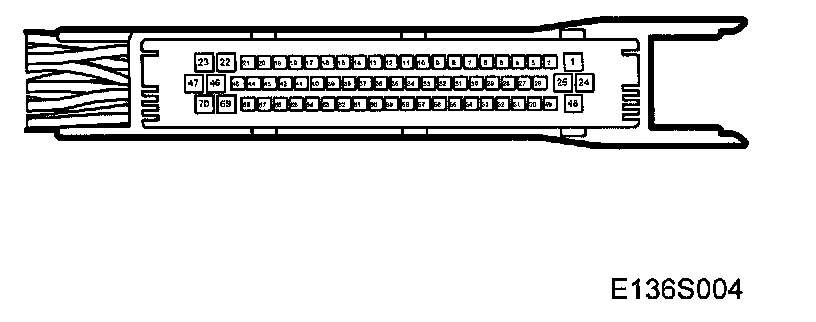

Test Readings, Control Module Connections

Scope
Readings and directions for measuring control module voltage levels can be found under this heading.

Remember:
^ Note the test conditions and use common sense when assessing the test result.
^ The specified readings are with the ignition in position ON unless otherwise stated.
^ First check that the control module has a power supply and is grounded.
^ Then check all sensor inputs and signals from other systems.
^ Finally, check the control module outputs. Remember that the readings do not determine whether the actuator is working.
^ If any reading is not OK, consult the wiring diagram to trace the leads, connectors or components which should be checked more thoroughly.
^ The specified test readings refer to those obtained with a calibrated Fluke 88/97.
^ Test readings in % (+) and ms (+) show the pulse ratio and pulse duration of the signal. A test instrument capable of giving pulse ratio and pulse duration readings must be used. The (+) sign indicates a positive trigger pulse, TRIG+.

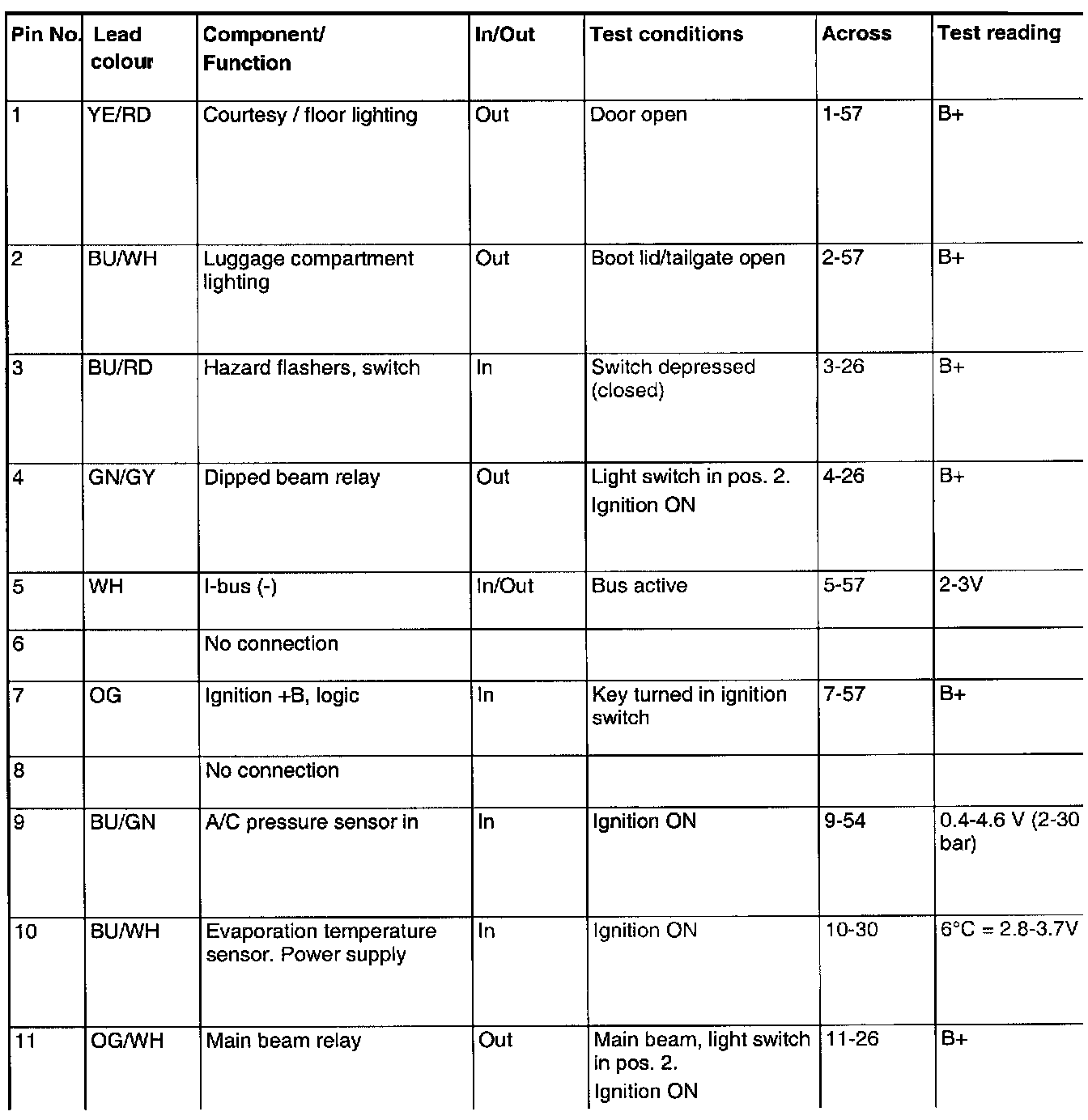

Pin No.1 - 11:

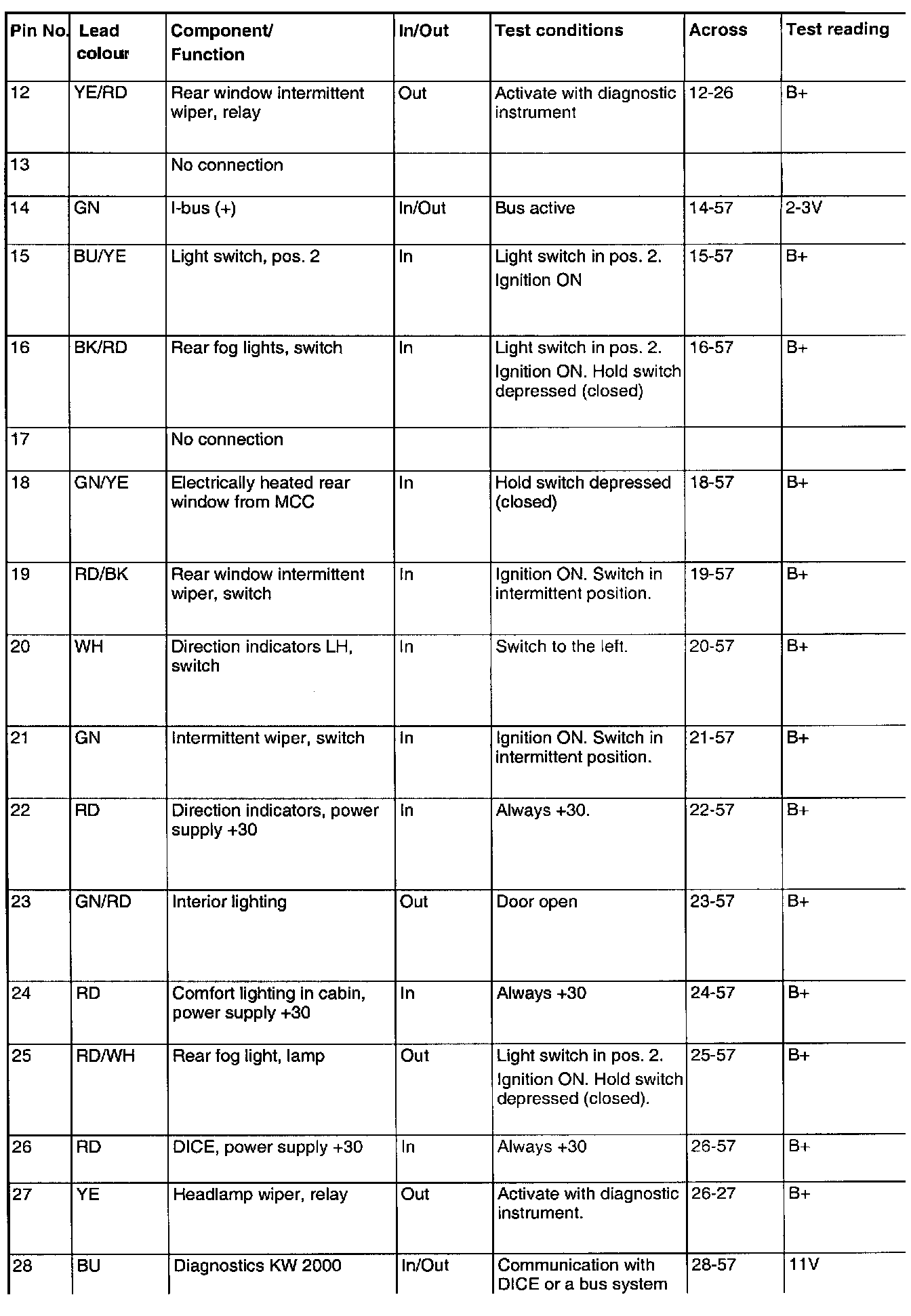

Pin No.12 - 28:

Pin No.29 - 45:

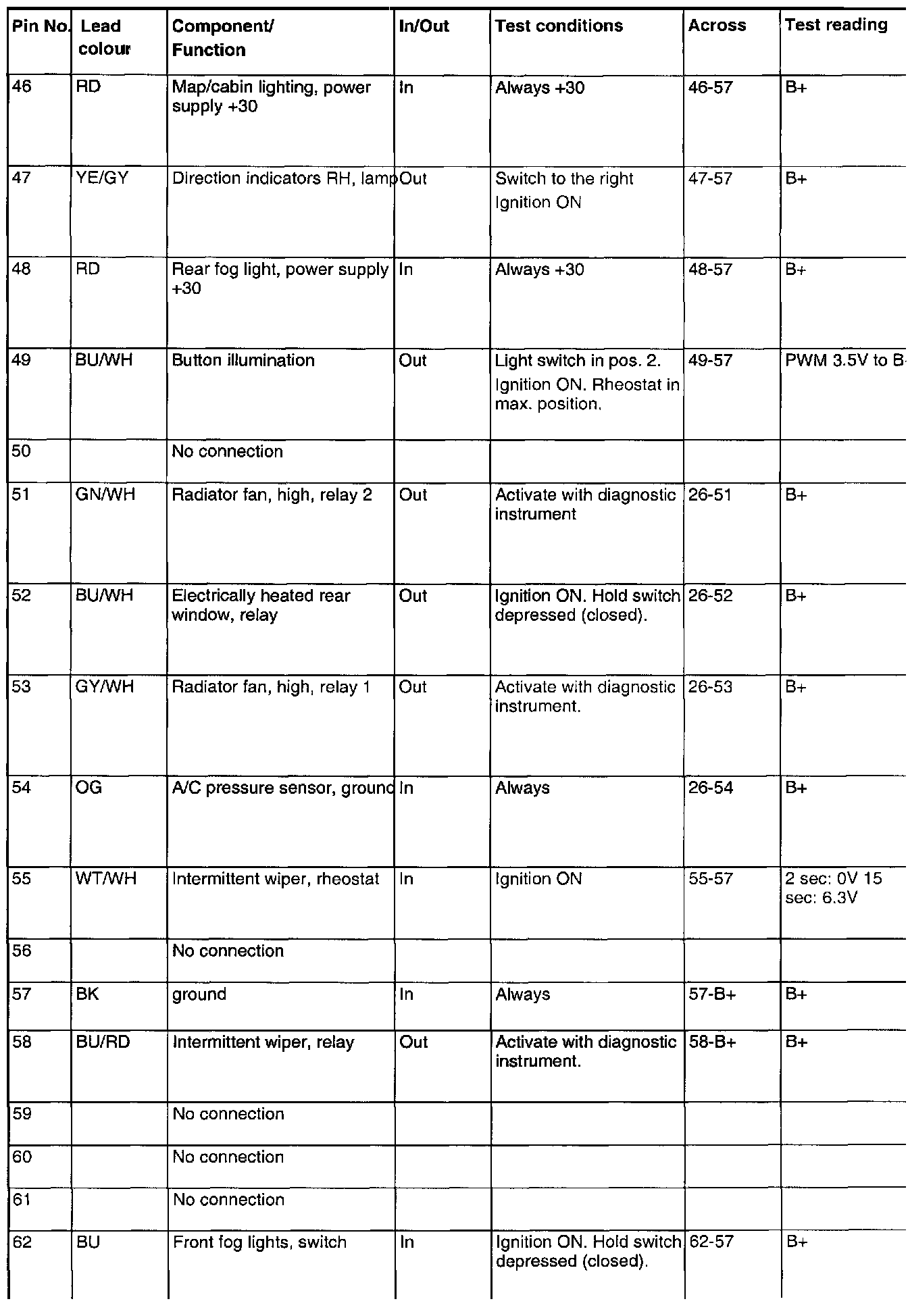

Pin No.46 - 62:

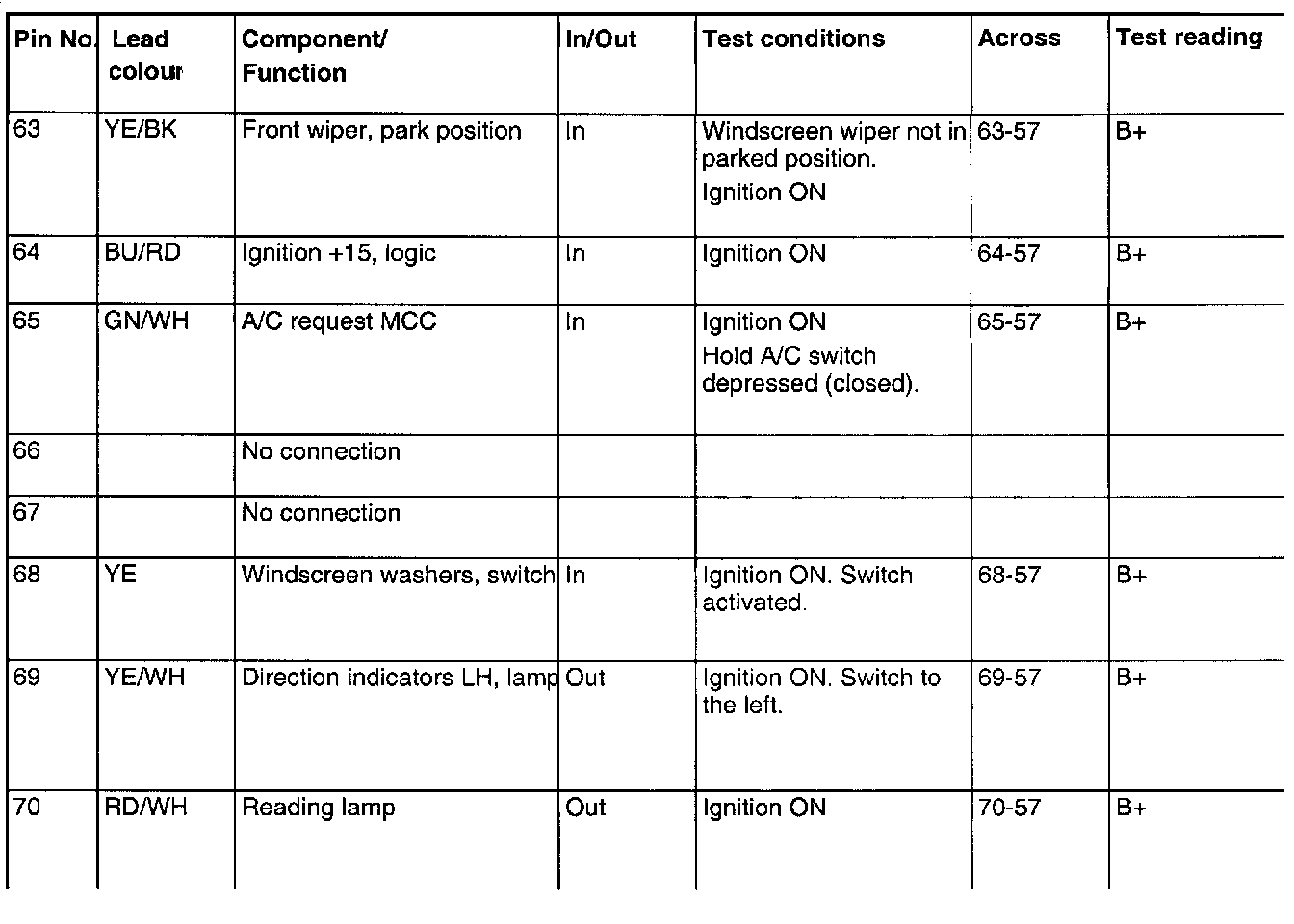

Pin No.63 - 70:
