T7 V6

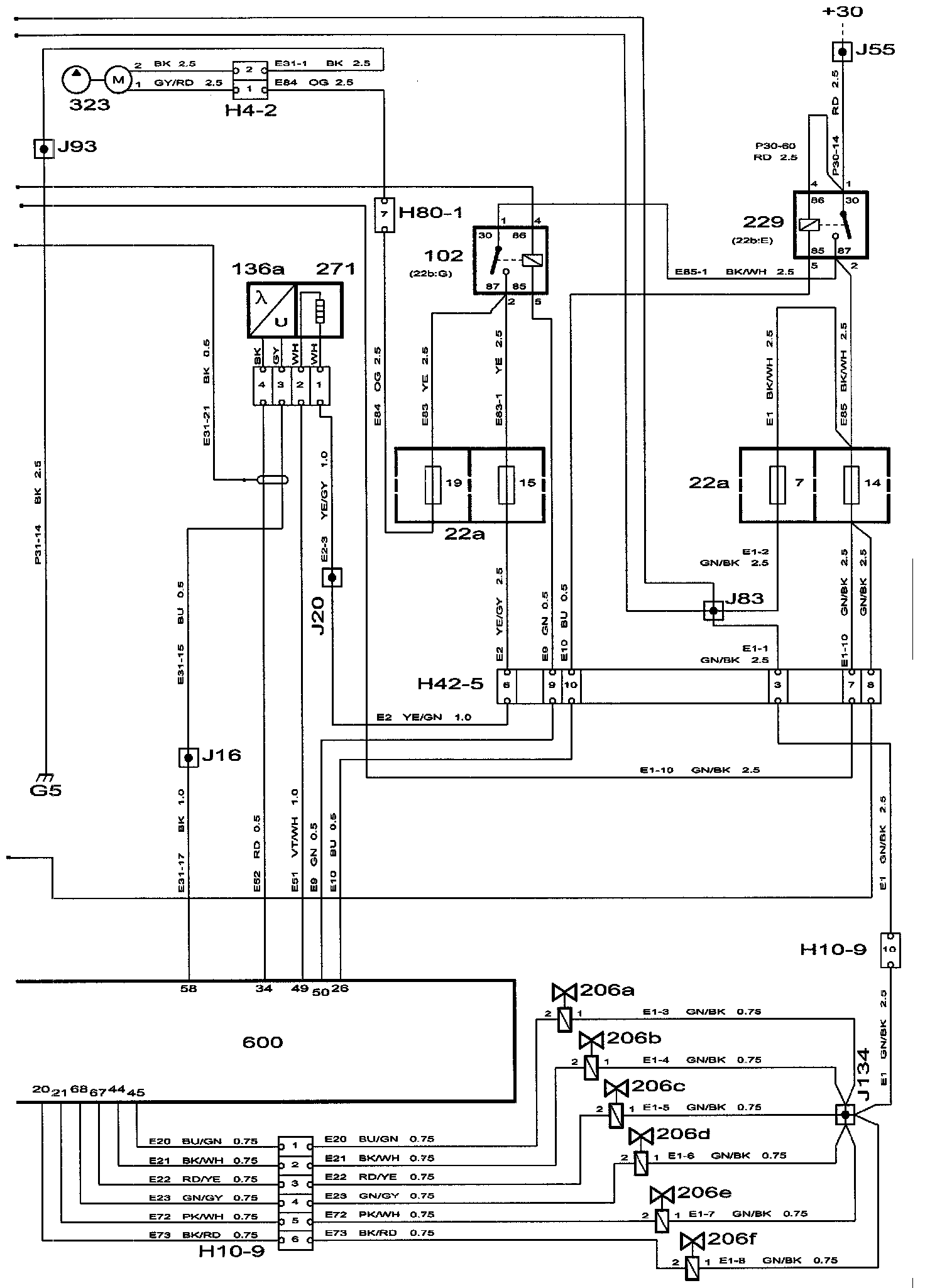

T7 V6 Wiring Diagram (1 Of 3):

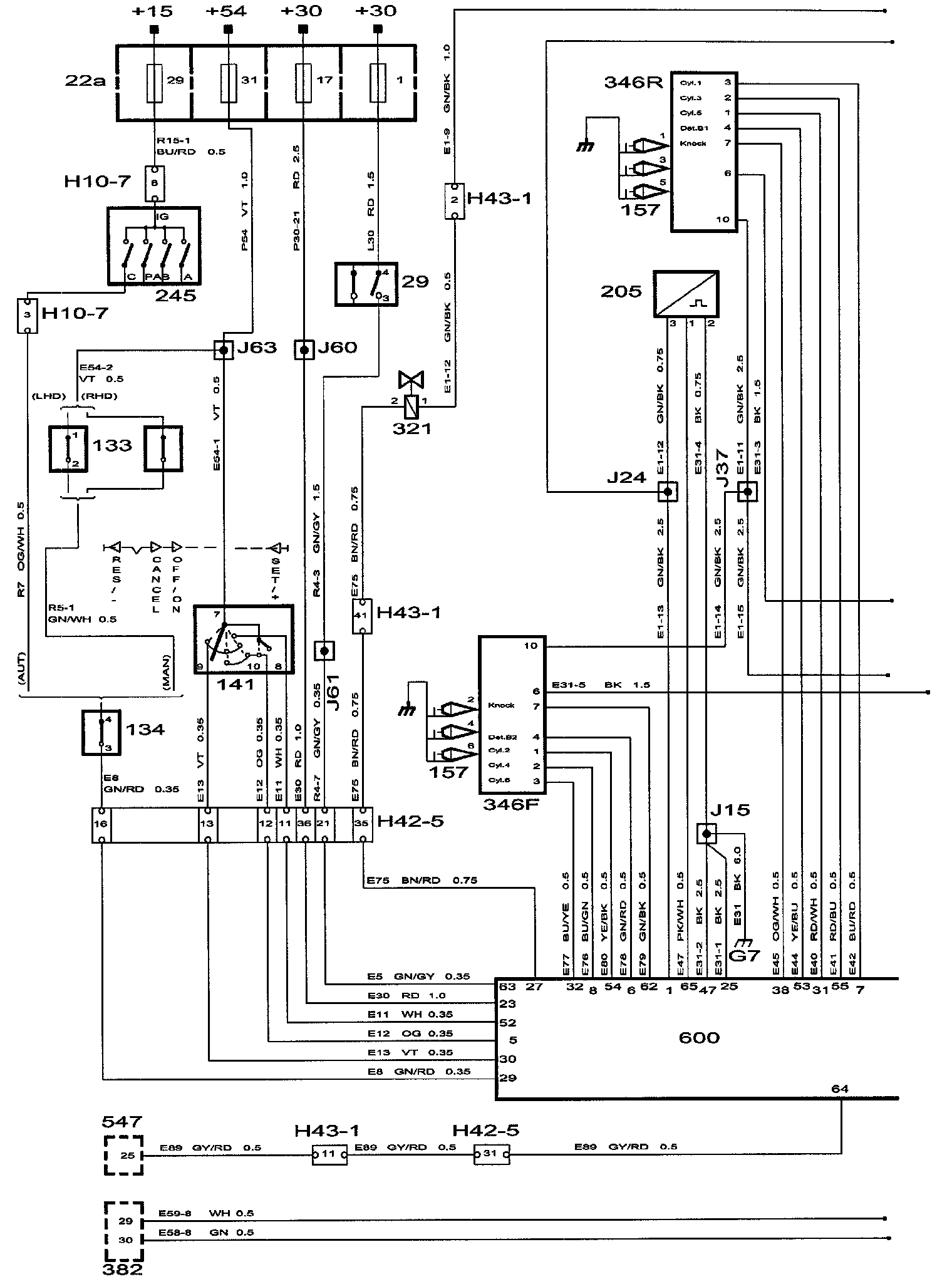

T7 V6 Wiring Diagram (2 Of 3):

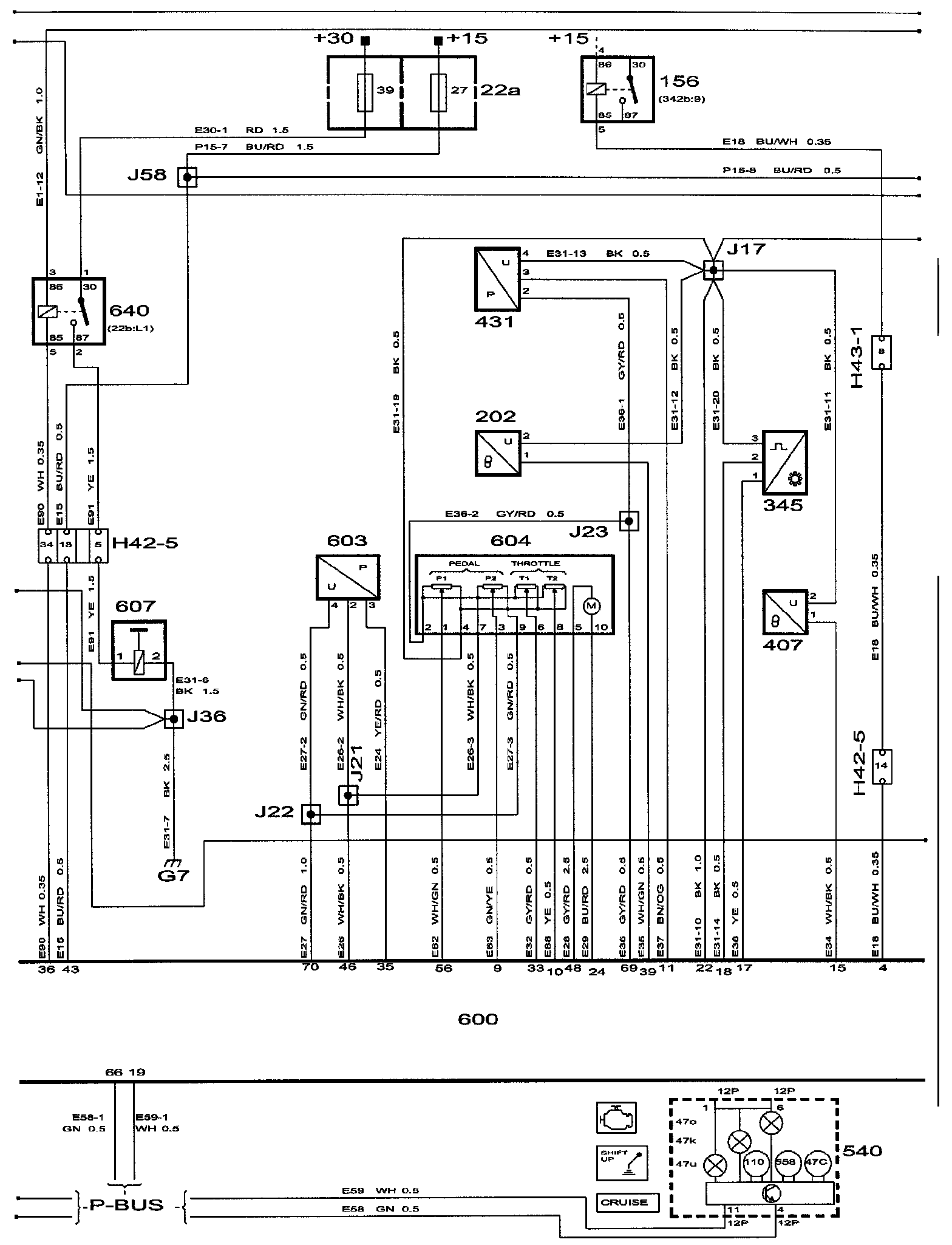

T7 V6 Wiring Diagram (3 Of 3):

Wiring Diagram

No. Name / Location
22a Main fuse board, dashboard / on end of dashboard by driver's door
29 Connector, brake lights / on pedal bracket
133 Switch, clutch, cruise control / on pedal bracket
134 Switch, brake, cruise control / on pedal bracket
141 Switch, cruise control / integrated in direction indicator stalk switch to left of steering column
157 Spark plugs / on the engine
205 Mass air flow sensor / behind the RH headlamp
245 Transmission range switch 1, automatic transmission / on the gearbox
321 EVAP canister purge valve / on hose to mass air flow sensor
346F Ignition discharge module / on camshaft cover for cylinder bank 2
346R Ignition discharge module / on camshaft cover for cylinder bank 1
382 Control module, TC/ABS / integrated in brake unit behind battery
547 Control module, ABS / integrated in brake unit behind battery
600 Trionic control module, V6 / in space (cabin side) in front of windscreen on passenger side

10-pin connectors
H10-7 Under the battery tray.

42-pin connectors
H42-5 In the centre of the bulkhead (engine-bay side)

43-pin connectors
H43-1 White connector in connector bracket under LH A-pillar

Crimp connections
J15 Approx. 130 mm from grounding point G7 towards connector H10-9

J24 Approx. 50 mm from the branching point of the throttle actuator unit in the throttle body towards connector H42-5.

J37 Approx. 230 mm from the branching point of the engine coolant temperature sensor towards connector H42-5.

J60
LHD: Approx. 30 mm from the branching point of the DICE control module towards the main fuse box.
RHD: Approx. 20 mm from branching point of the DICE control module towards the engine bay grommet

J61
LHD: Approx. 90 mm from the branching point of the floor lighting (front, left) towards the DICE control module.
RHD: Approx. 210 mm from branching point of grounding point G40 towards the radio

J63
LHD: Approx. 300 mm from branching point grounding point G40 towards DICE control module
RHD: Approx. 210 mm from the MIU branching point (20-pin connector) towards the DICE control module.

Grounding points
G7 - On the engine
