Home >> Saab >> 2000 >> 9-5 SE Wagon (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Body and Frame >> Seats >> Memory Positioning Systems >> Diagrams >> Electrical Diagrams >> Electrically Adjustable Door Mirrors With Memory, LHD (Rev. 1)

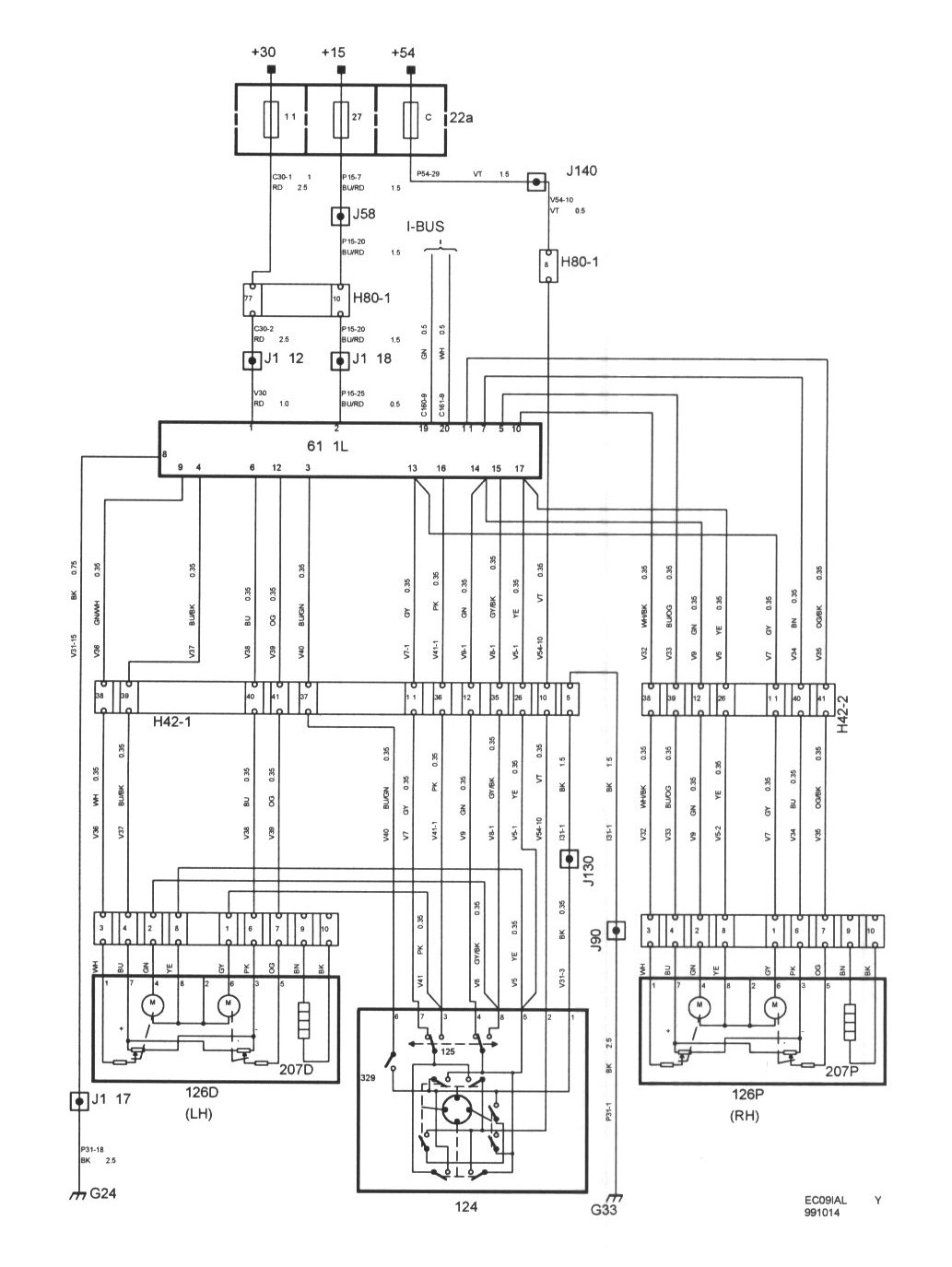

Electrically Adjustable Door Mirrors With Memory, LHD (Rev. 1)




Rev. 1: From Y3009267:

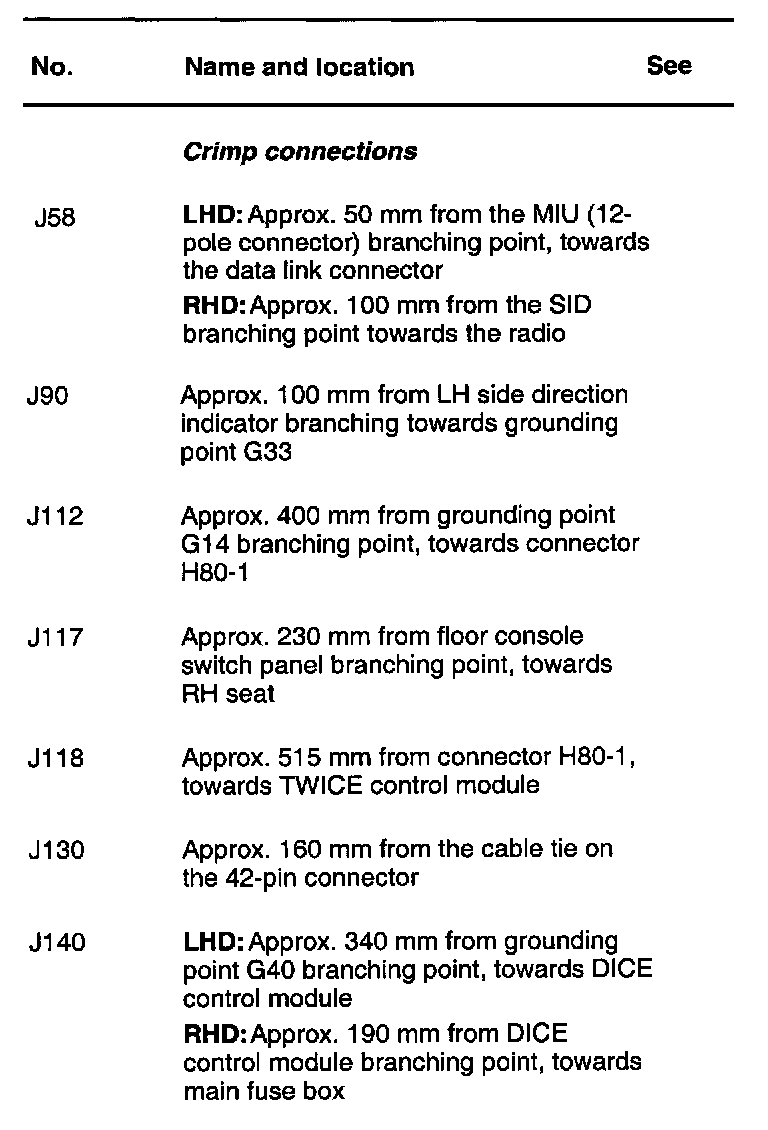

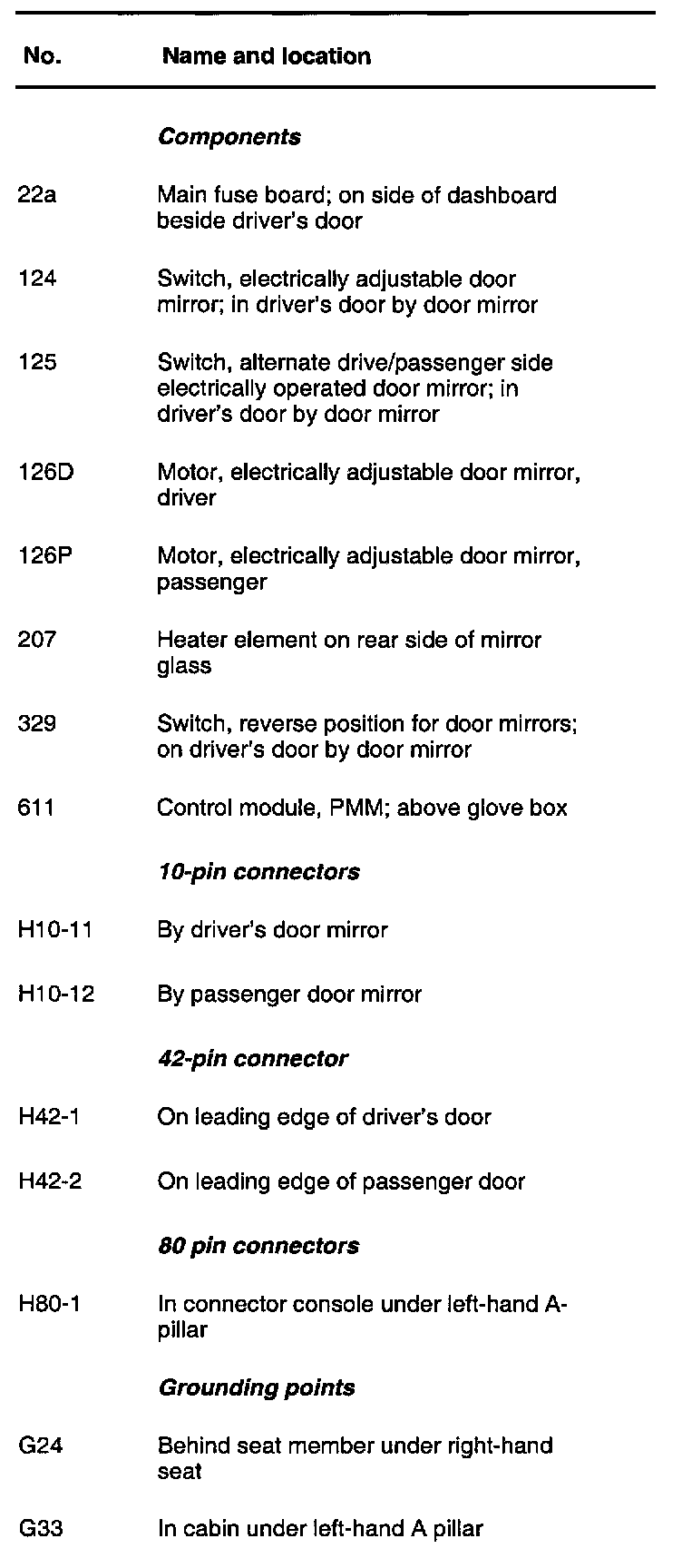

List Of Components
