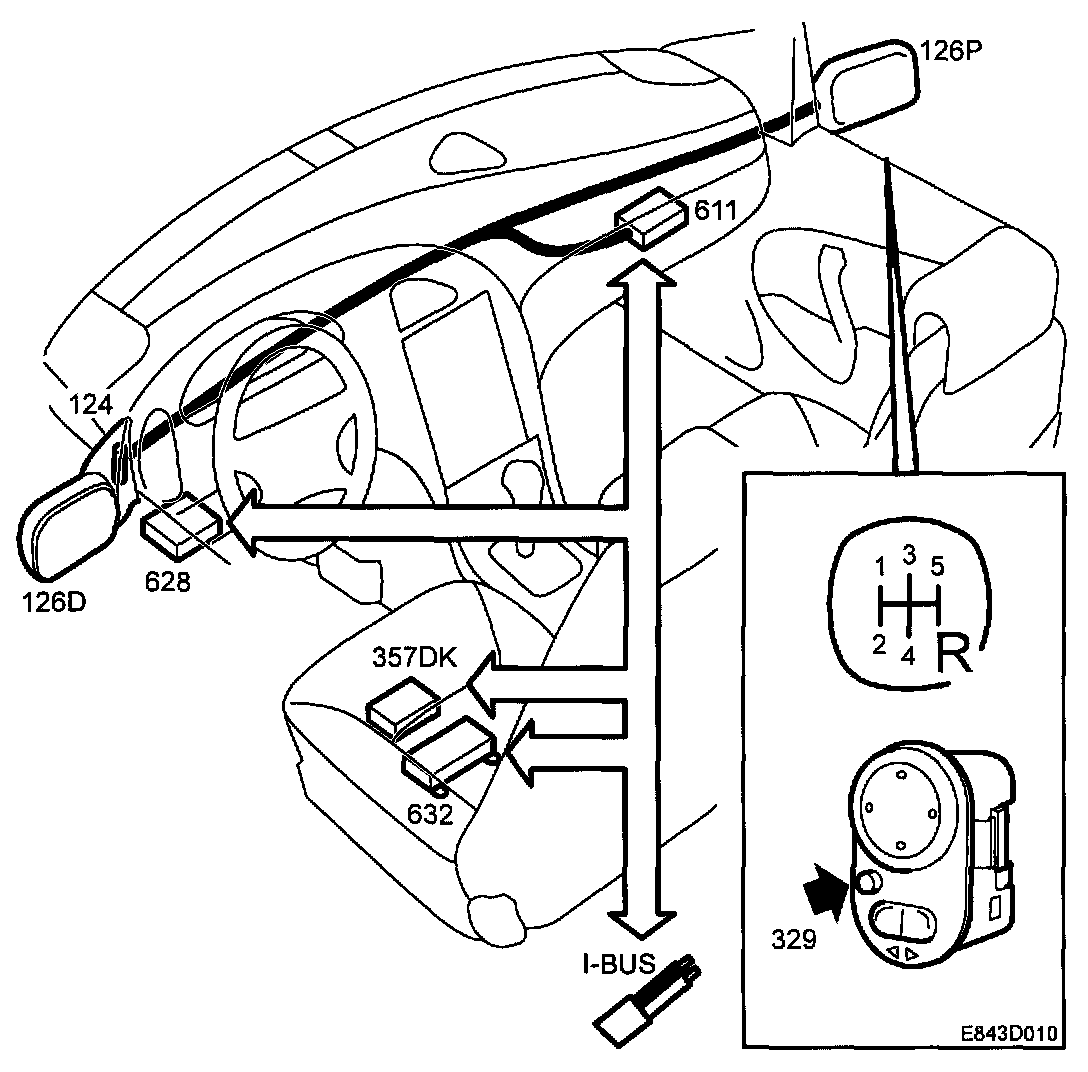

System Overview, Power Mirror Memory (PMM)

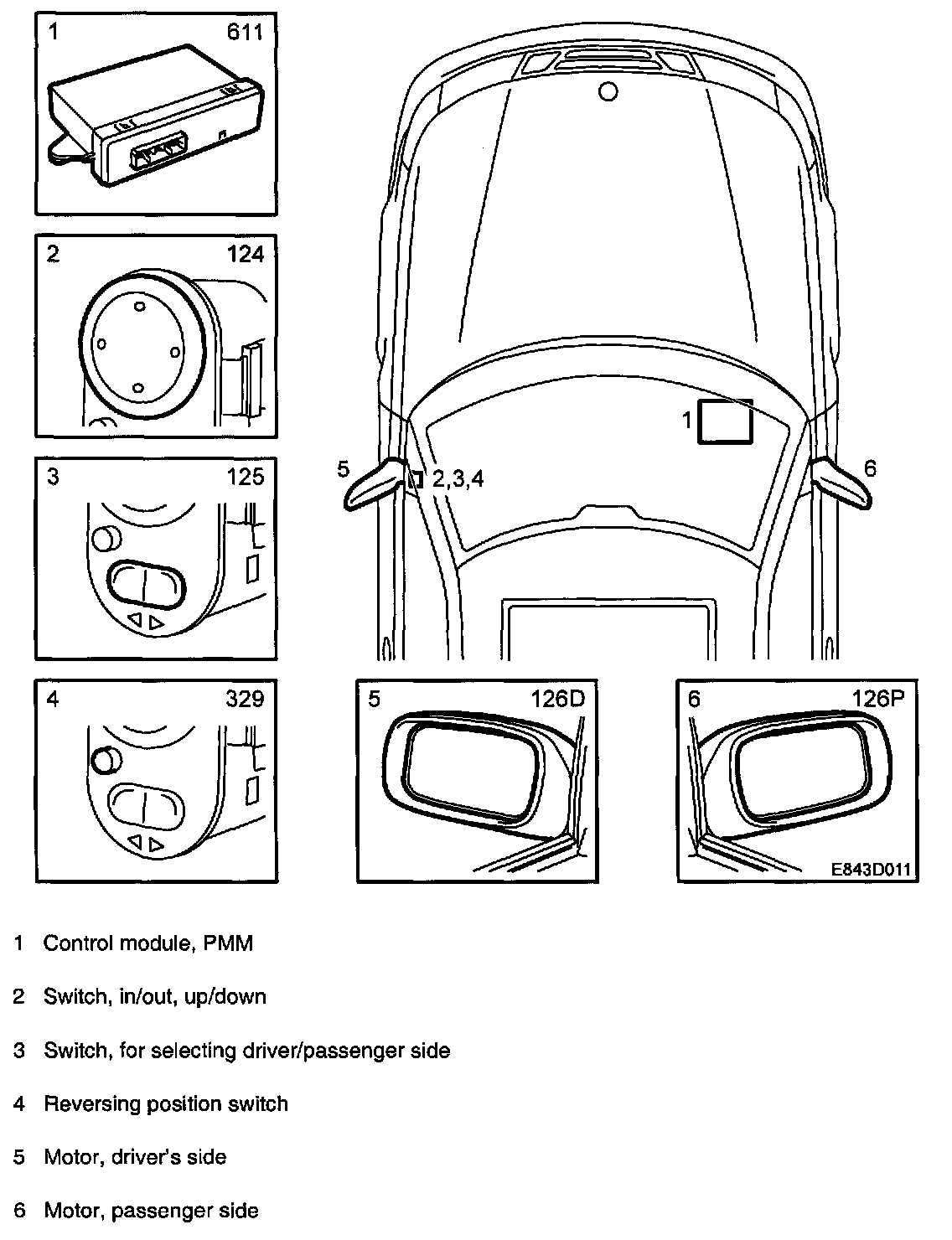

Main components, PMM







Brief description, PMM
The Power Mirror Memory (PMM) function is available as an option
Different positions are stored and activated via the seat memory function. The mirror on the passenger door can also be tilted downwards while reversing by putting the selector lever in the R position and pressing the tilt-down switch on the mirror switch unit.

P bus and I bus
For further information about P and I busses, see Powertrain Management/Computers and Controls/Information Bus/Description and Operation/System overview
