Microswitch In Luggage Compartment Lock (5D)

To remove







1 Open the tailgate.

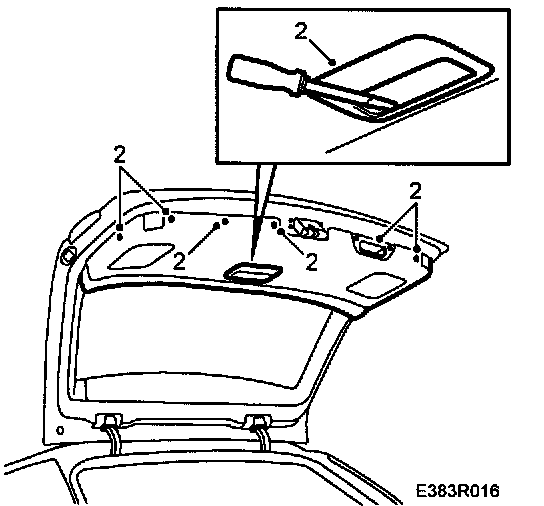

2 Remove the door pull and trim.

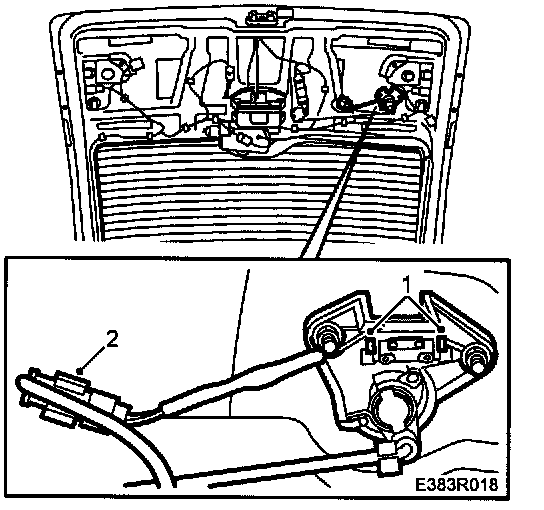

3 Detach the microswitch from the luggage compartment lock.







4 Separate the connector and remove the microswitch.

To fit







1 Fit the microswitch to the luggage compartment lock.
2 Plug in the connector.

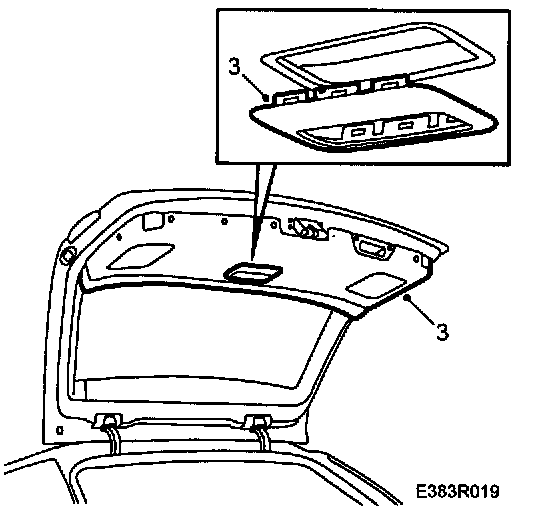

3 Fit the trim and door pull.
