Glass Breakage Sensor, Rear (5D)

To remove


NOTE: The rear glass breakage sensor integrated in the roof lamp in the luggage compartment is not available as a spare part. The entire roof lamp must be replaced.

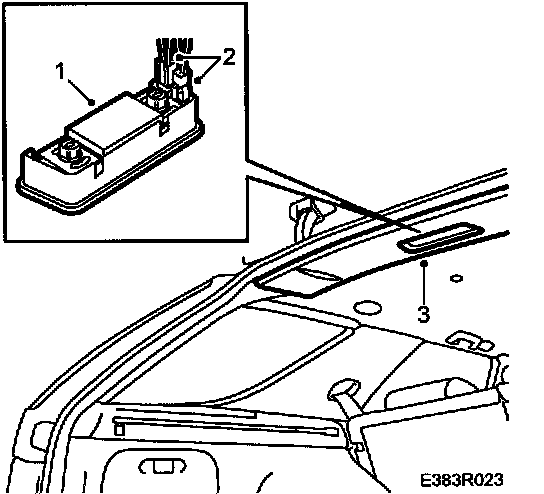

1 Remove the rear cover with roof lamp in the luggage compartment.
2 Unplug the roof lamp connectors.
3 Remove the lens from the cover by prying it loose with a screwdriver in the recesses.







To fit

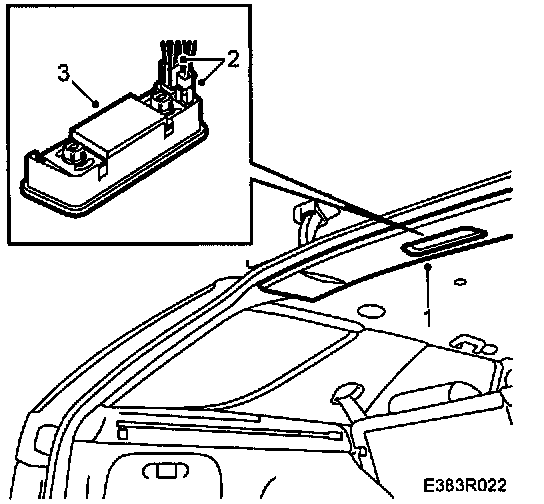

1 Fit the lens into the cover.
2 Plug in the roof lamp connectors.
3 Fit the rear cover.
