Antenna Unit, Immobilization
Antenna Unit, Immobilization

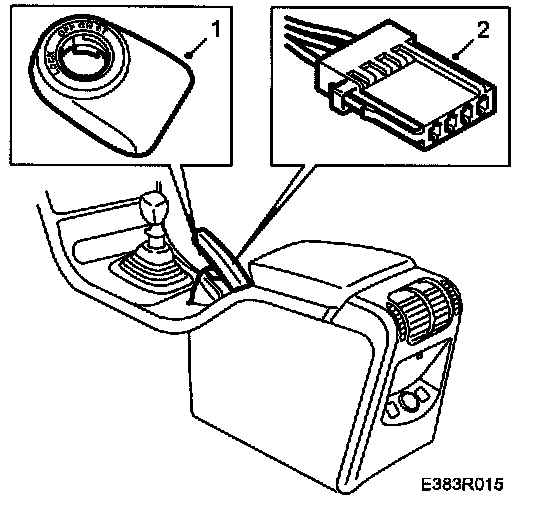

To remove
1
Remove the ignition switch.
2
Unplug the connector and remove the ignition switch.
To fit
Fit in reverse order.
