Home >> Saab >> 2000 >> 9-5 SE Wagon (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Description and Operation >> TWICE >> System Overview, Electrical Opening of Tailgate (5D)

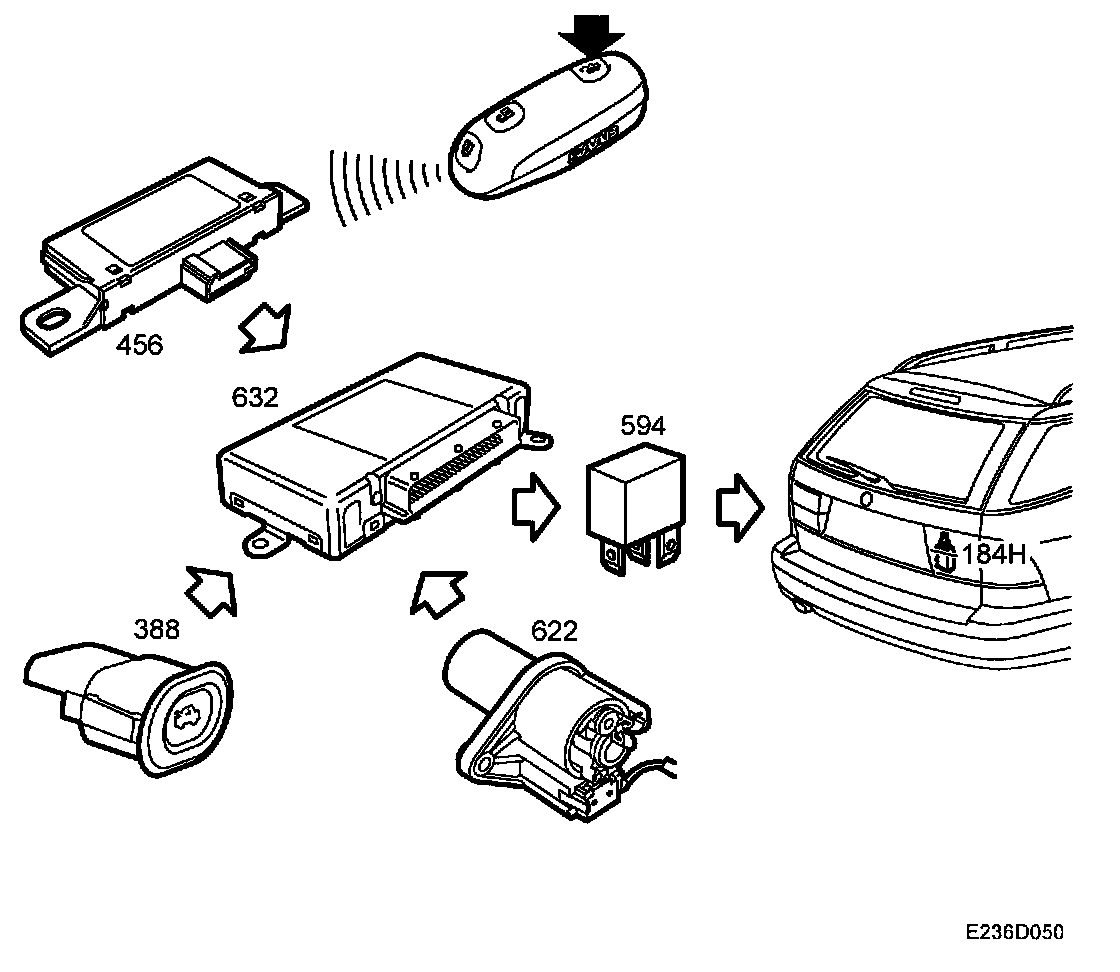

System Overview, Electrical Opening of Tailgate (5D)









- Control module TWICE (632)
- Car key/remote control
- Antenna, remote control, central locking system (456)
- Switch, tailgate (388)
- Relay, tailgate (594)
- Motor, central locking system, tailgate (184H)
- Microswitch, tailgate lock (622)

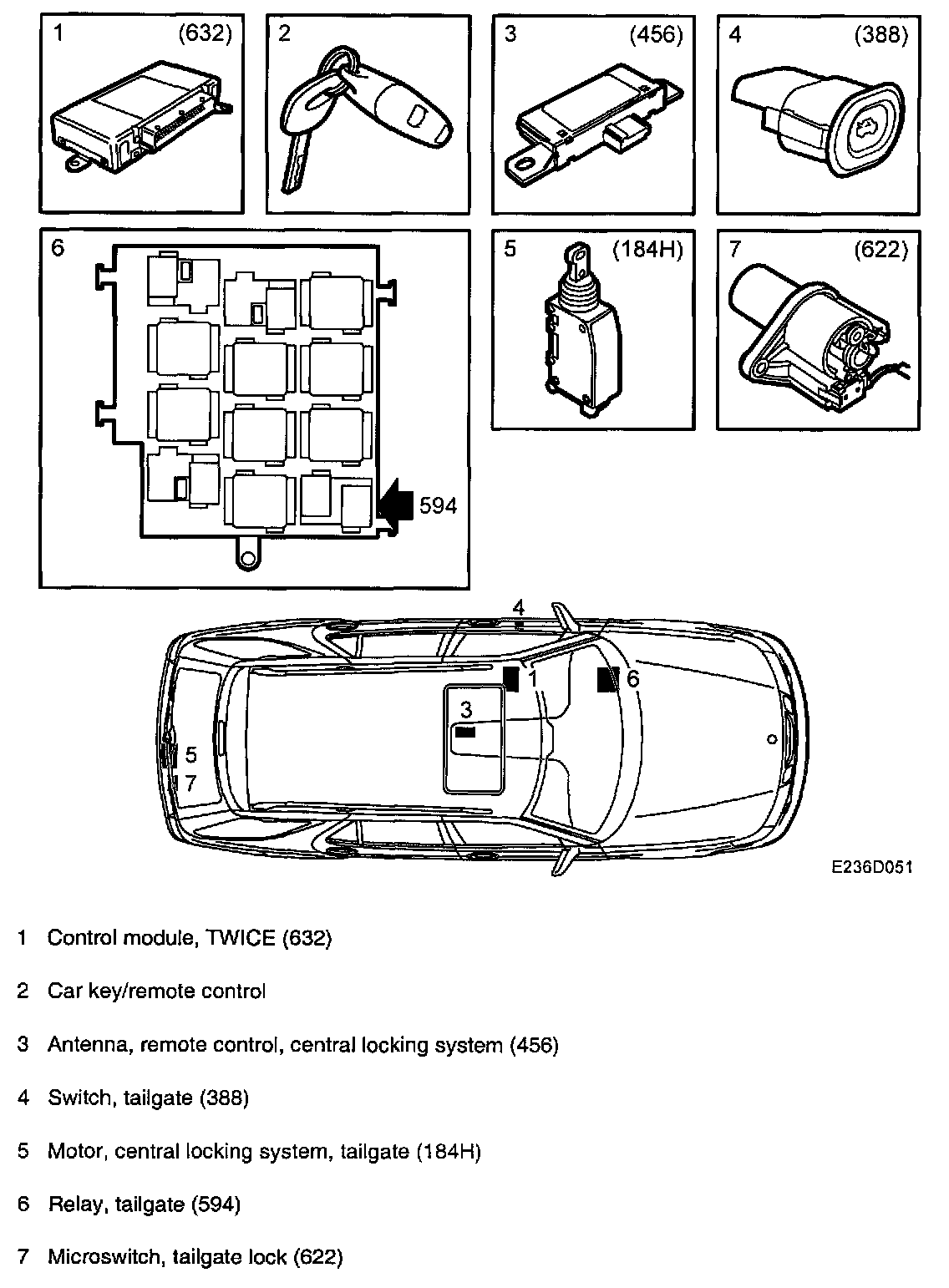

Main Components, Electric Opening Of Tailgate (5D):
