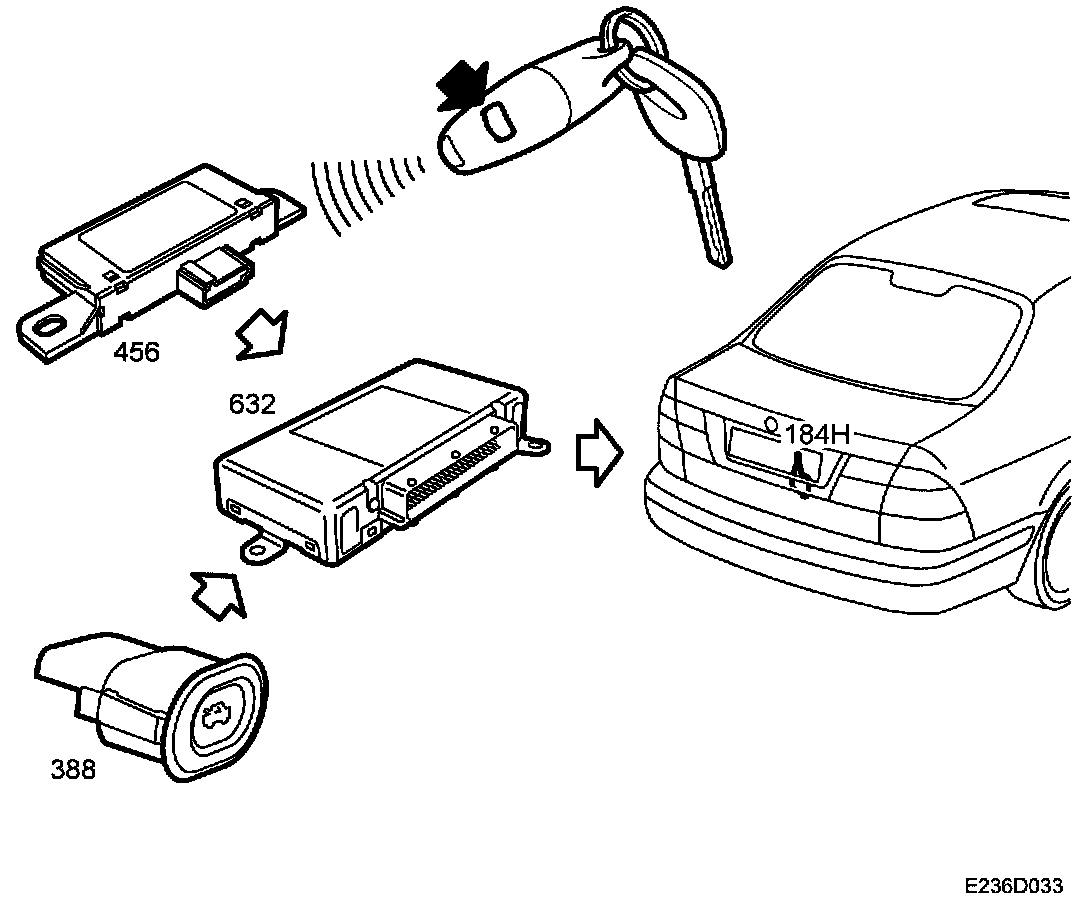

System Overview, Electrical Opening of Boot Lid (4D)









- Control module, TWICE (632)
- Car key/remote control
- Antenna, remote control, central locking system (456)
- Switch, boot lid (388)
- Motor, central locking system, boot lid (184H)

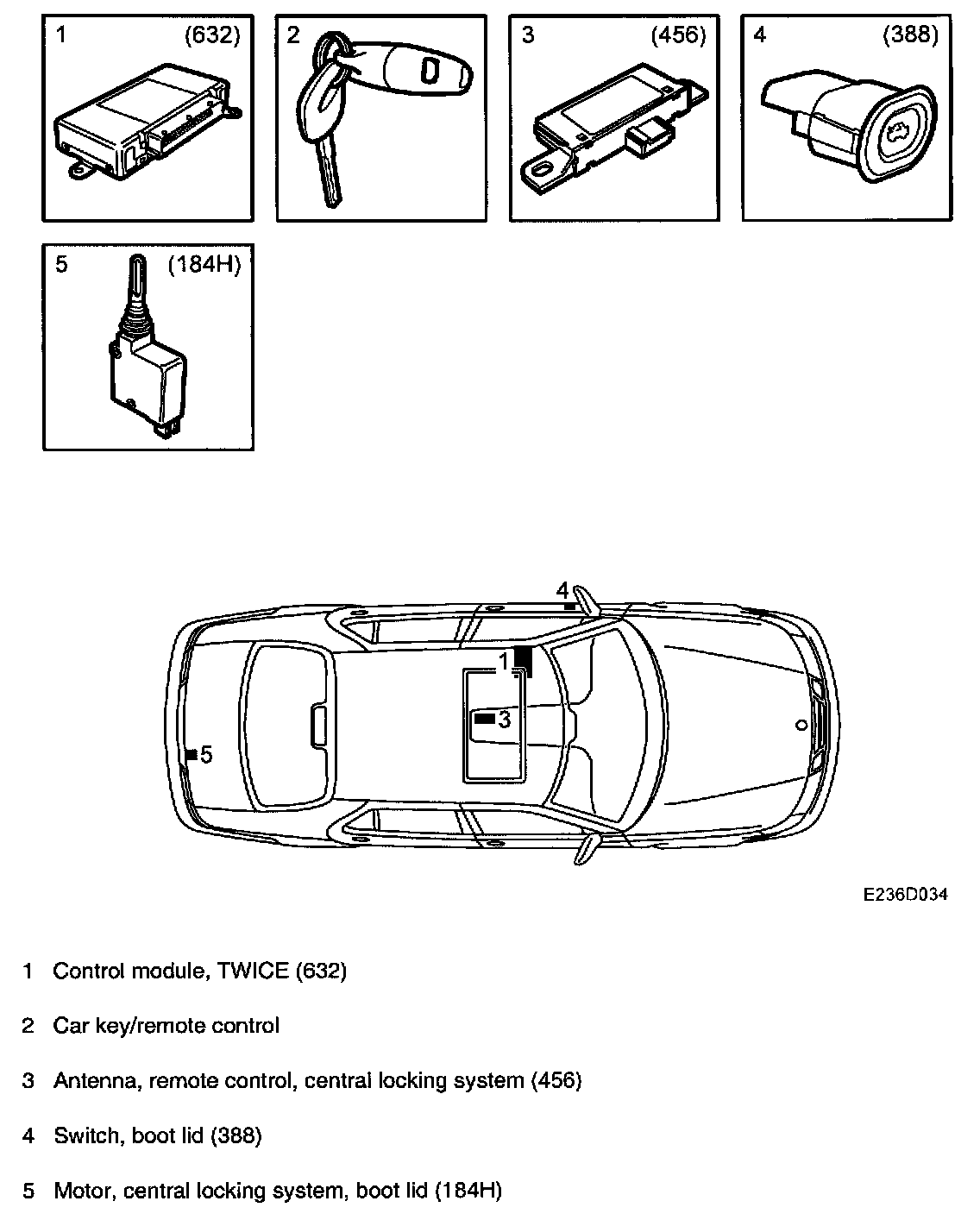

Main Components, Electrical Opening Of Boot Lid (4D):
