Alarm System Transponder: Service and Repair

To remove

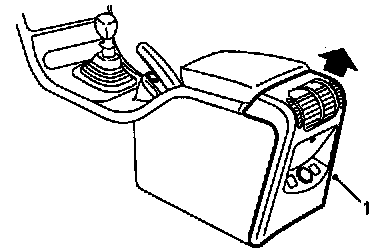

1 Remove the rear section of the floor console.

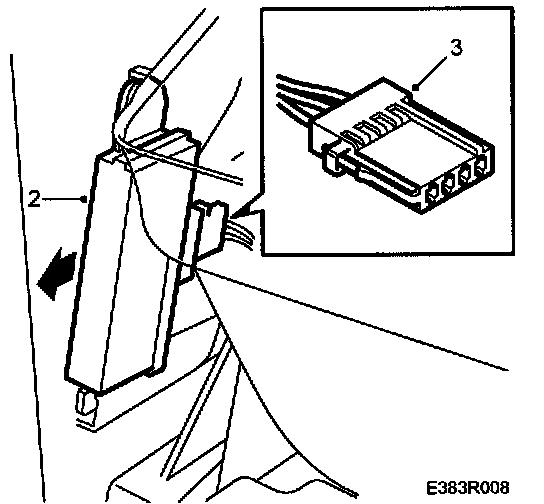

2 Undo the receiver unit from the side wall of the floor console.







3 Unplug the connector and remove the receiver unit.

To fit
Fit in reverse order.
