Conditions

EVAP Tank Pressure Sensor Circuit. Open/Short To B+.





Fault symptoms
- Market US/CA: CHECK ENGINE

On-Board Diagnostics

Type of diagnosis:
- Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle.

Enable criteria:
- Engine running.

Fault criteria:
- Voltage higher than 4.950 V for more than 5 s.

Dependents:
- None.

System reaction to a fault:
- Integrity diagnosis of purge system blocked.

OK report:
- Diagnoses for P1451, P1452 and P1453 performed once and fault criteria not fulfilled. Fault criteria for P0452 or P0453 not fulfilled.

Fault handling: Fault Handling III, Other Emission-Related Comp. & Function
- Type III.

Diagnostic help
Fault diagnosis concerns electrical faults in connected leads or in the sensor.

Diagnostic tool functions related to this fault are:
- Diagnostic status for the diagnosis.
- Pressure sensor value, unit kPa. The value should be about 0 kPa when the filler cap is removed.

See also the description of test values under "Fault diagnosis, general" for more information.
Tech 2 Menu Structure, DTC Menu, Read Value, Activate, Sys Info

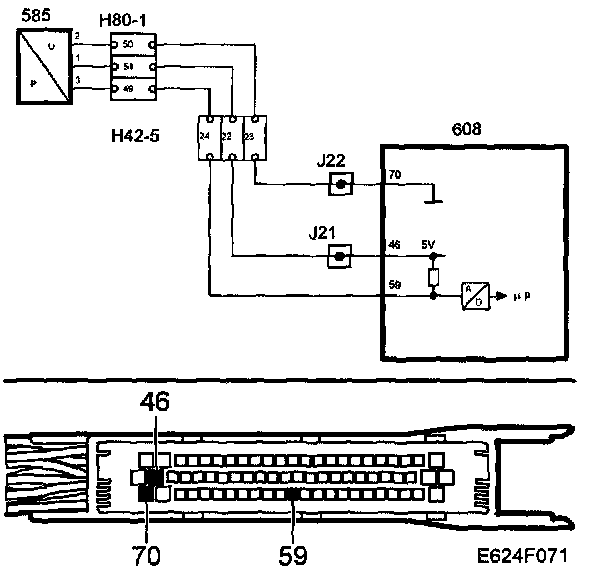

Check the wiring
Jiggle the leads and in-line connectors at various points and in different directions to detect any intermittent breaks or short circuits in the wiring. Observe the multimeter, test lamp or diagnostic tool while doing this.
