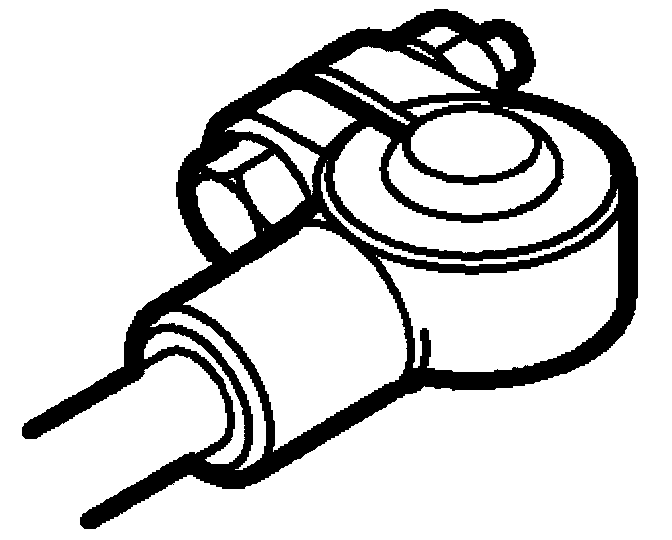

Check the Ground Lead to the Sensor

Check The Ground Lead To The Sensor

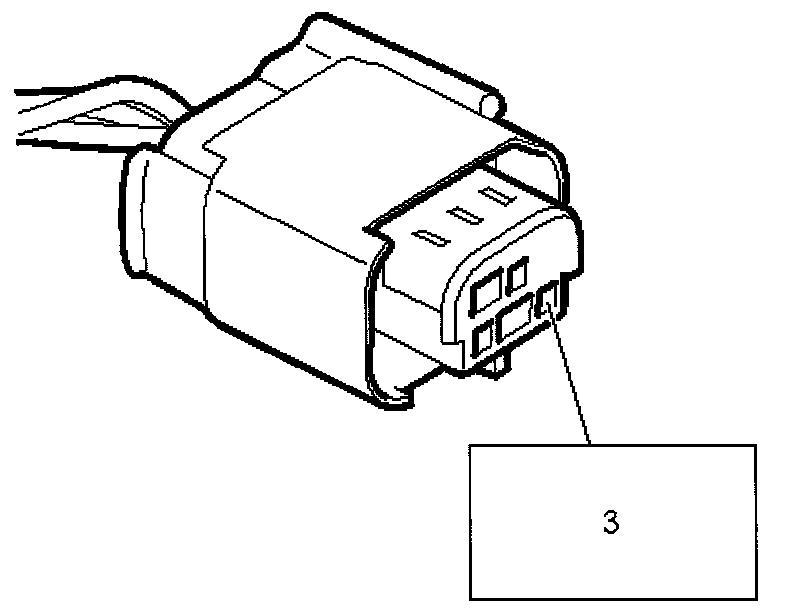

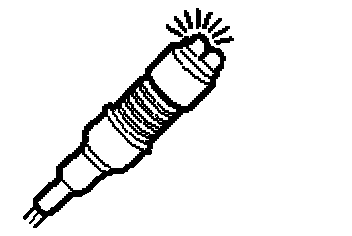

- Connect a test lamp to B+ and pin 3 of the female connector.





- The test lamp should light.

Checking the wiring harness
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - III

YES - Continue with Check The Ground Lead To The Sensor.

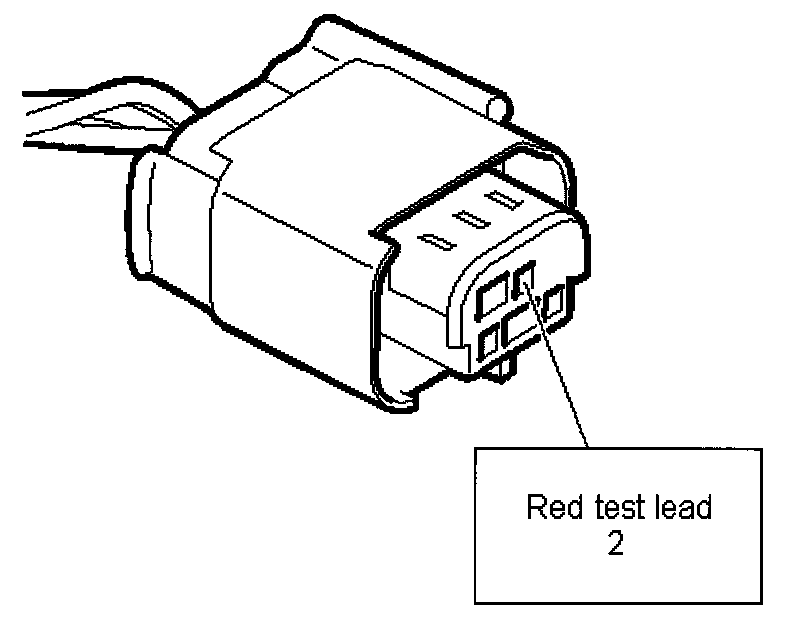

Take a resistance reading between

- 2 - Rear right sensor
- B-

The reading should be 95 kOhm - 105 kOhm

Checking the wiring harness
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - II

YES - Checking the Control Module's Sensor Input (Continued)
