Checking the Wiring Between the Cntrl Module and Hall Sensor

Checking The Wiring Between The Control Module And The Hall Sensor

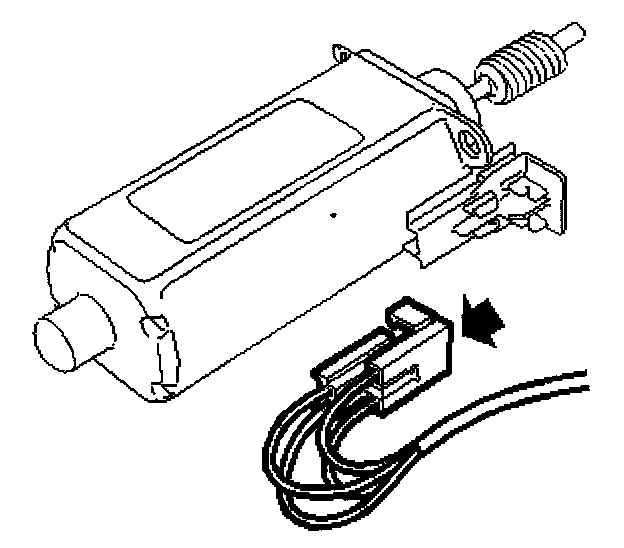

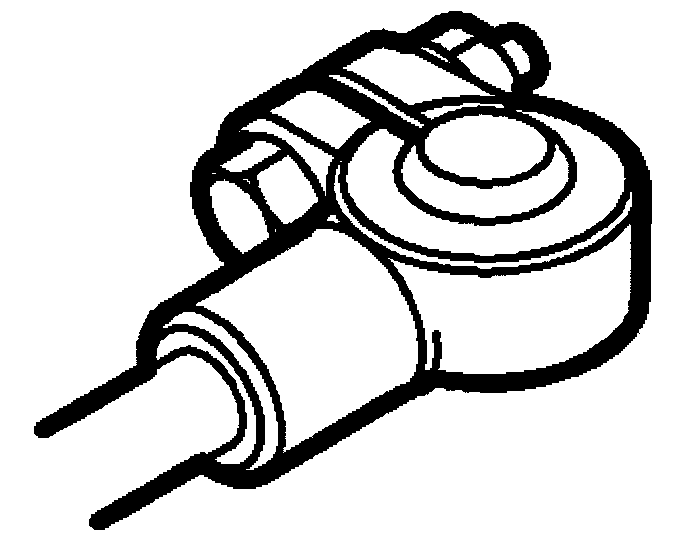

Unplug the connector:
- Hall sensor Backrest (357Dh)

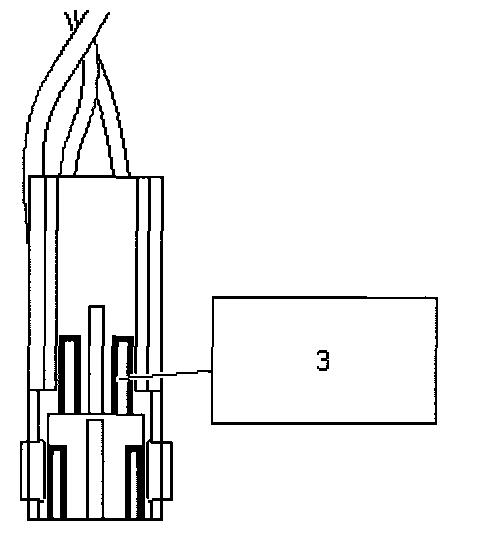

- Connect test lamp 86 11 857 to B+ and pin 3 of the female connector.





- The test lamp should light.

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead

YES - Checking the Lead
