Checking the Control Module Output For A Short-Cir to Gnd

Checking The Control Module Output For A Short-circuit To Ground

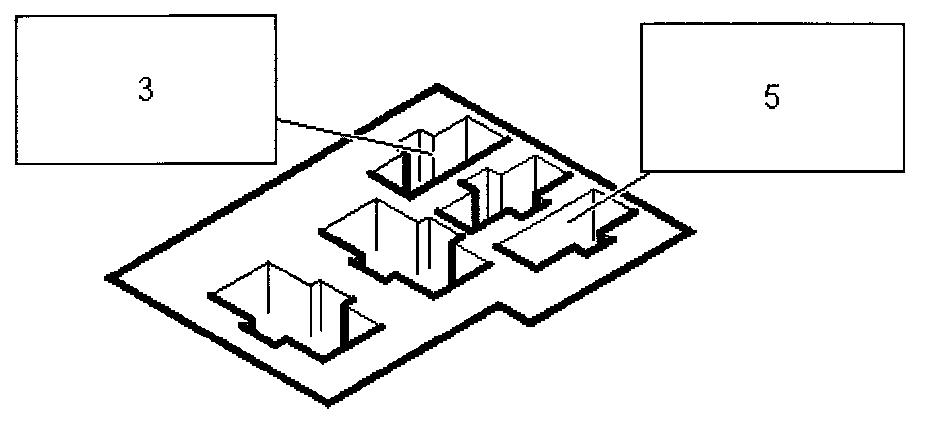

- Connect test lamp 86 11 857 to pins 3 (86) and 5 (85) of the relay holder.





- The test lamp should NOT light.

Is the function correct?

NO - Rectifying the Lead - III

YES - Checking the Cntrl Module Output Open or Short-Cir to B+
