Home >> Saab >> 2000 >> 9-5 SE Sedan (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Windows and Glass >> Heated Glass Element >> Diagrams >> Electrical Diagrams

Electrical Diagrams

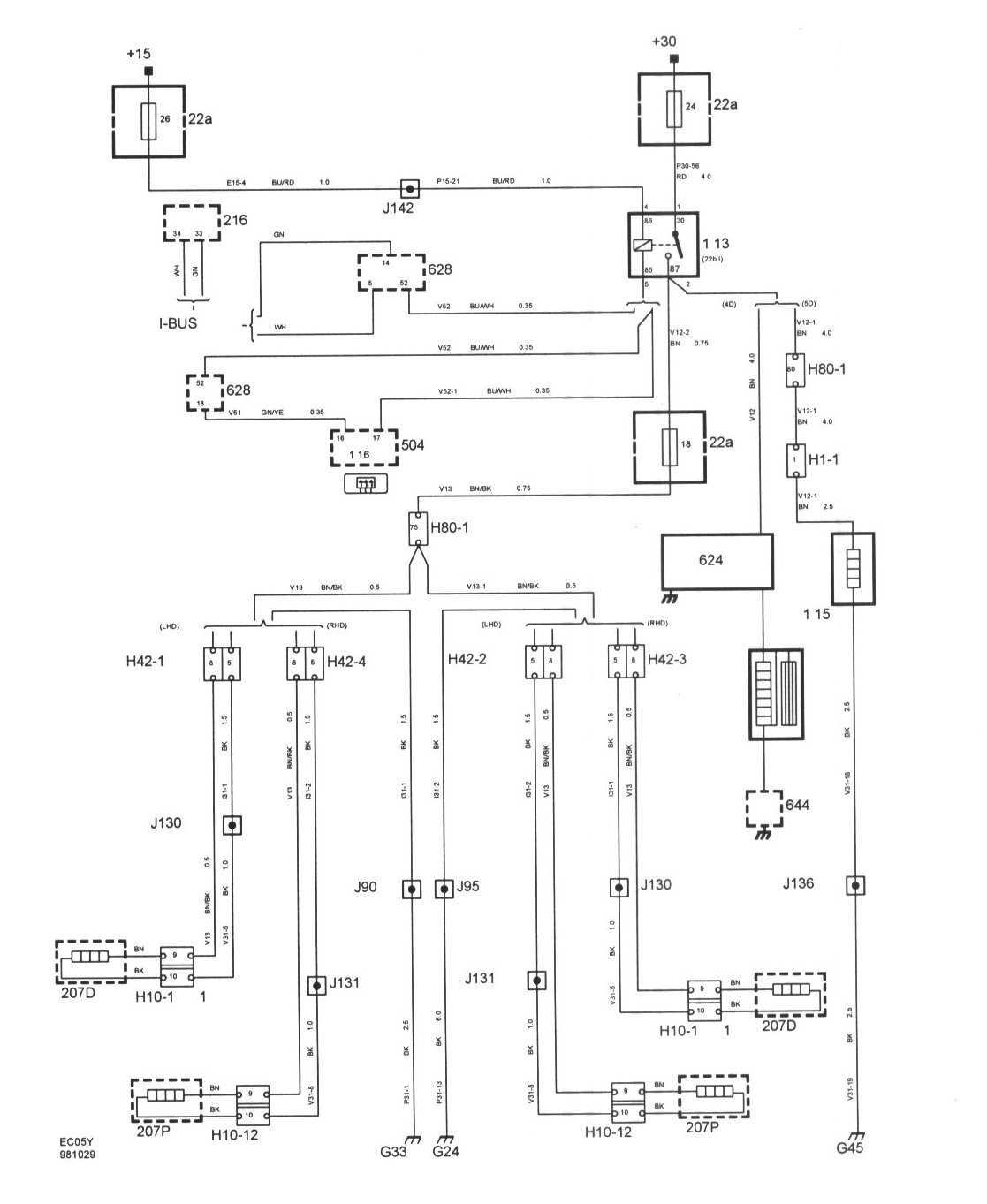

Electrically Heated Rear Window and Door Mirrors

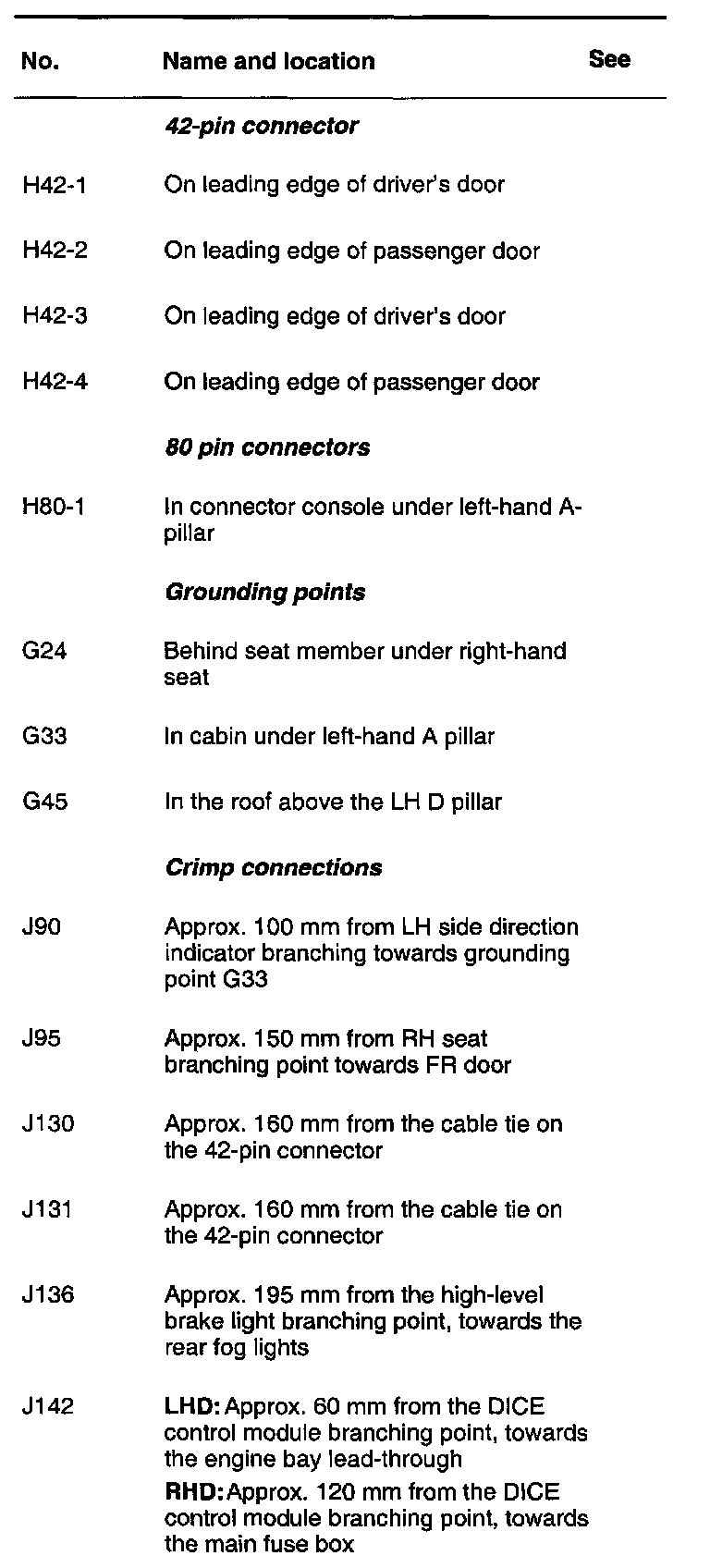

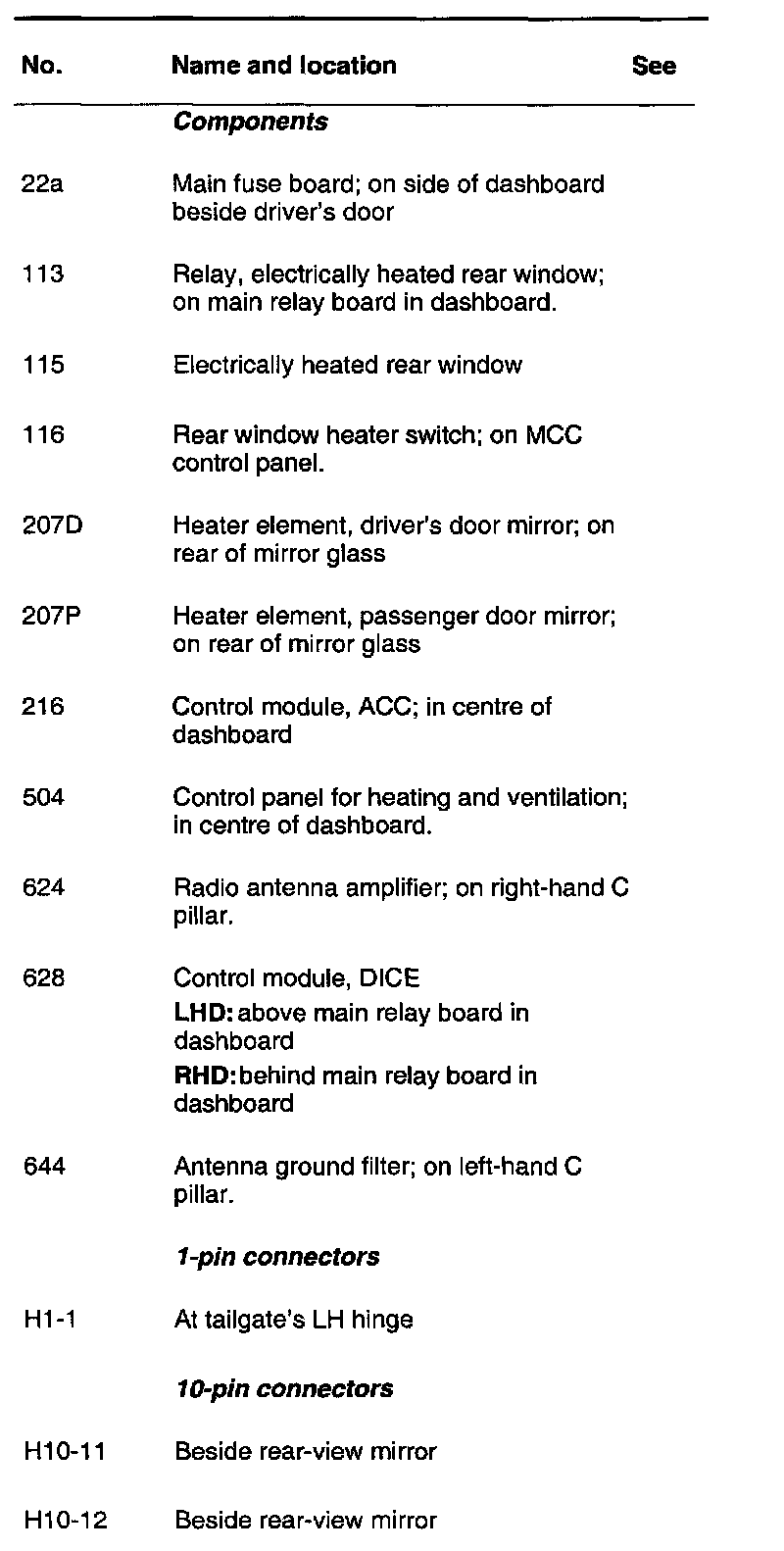

List of components
