Drive Shaft Seal, Right-Hand Side

To Remove
1. Remove the intermediate shaft, refer to Drive Axles, Bearings and Joints, Axle Shaft Assembly, Constant Velocity Joint.

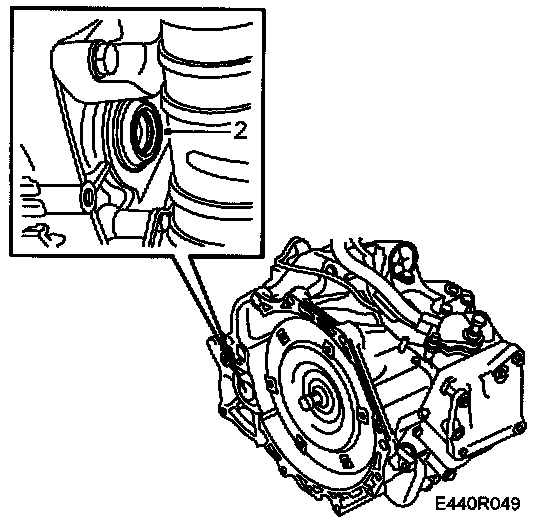

2. Remove the seal using a large screwdriver.

Fitting

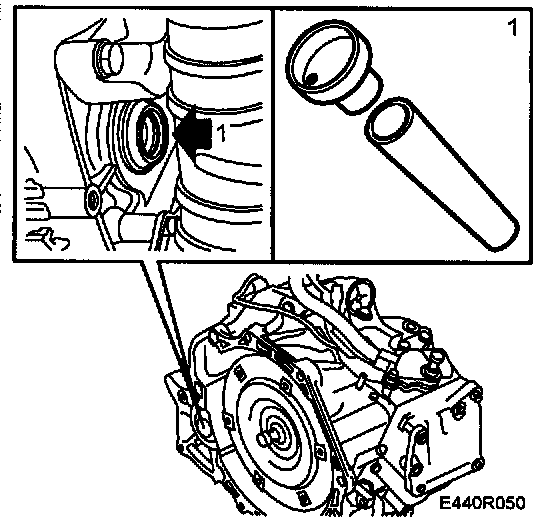

1. Lubricate and fit the new seals with tool 83 90 122 and 83 90 148.
2. Fit the intermediate shaft.
