Steering Linkage

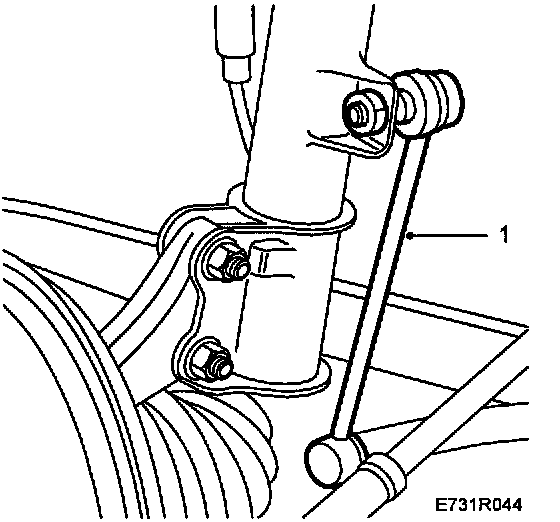

Anti-roll bar link
To remove





1. Raise the car.
2. Remove the wheel.
3. Undo the anti-roll bar link's nuts and remove the link.

To fit





1. Bolt the anti-roll bar link to the MacPherson strut and the anti-roll bar
Tightening torque 90 Nm (65 ft. lbs.).
2. Fit the wheel.
Tightening torque 120 Nm (90 ft. lbs.)
Lower the car to the floor.
