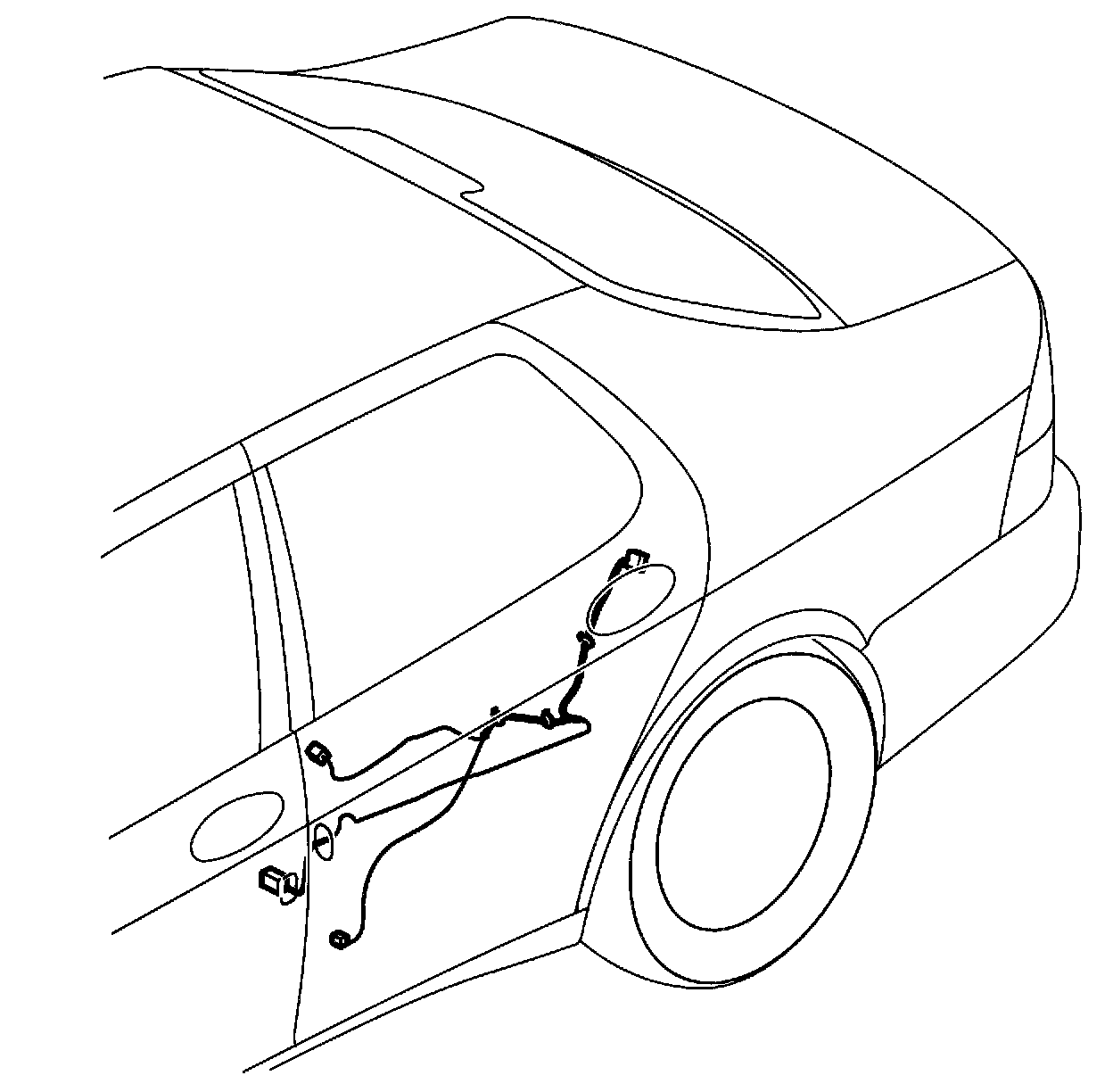

Rear Door Wiring Harness

Rear door wiring harness, associated components:

SMS Component name
164RR Motor, electric window lift, rear RH
164RL Motor, electric window lift, rear LH
184RR Motor, central locking, rear RH
184RL Motor, central locking, rear LH
190RR Switch, electric window lift, rear RH
190RL Switch, electric window lift, rear LH
209RR Lamp, courtesy light, rear RH
209RL Lamp, courtesy light, rear LH
266RR Loudspeaker, rear door, RH
266RL Loudspeaker, rear door, LH
H16-1/2 Connector
