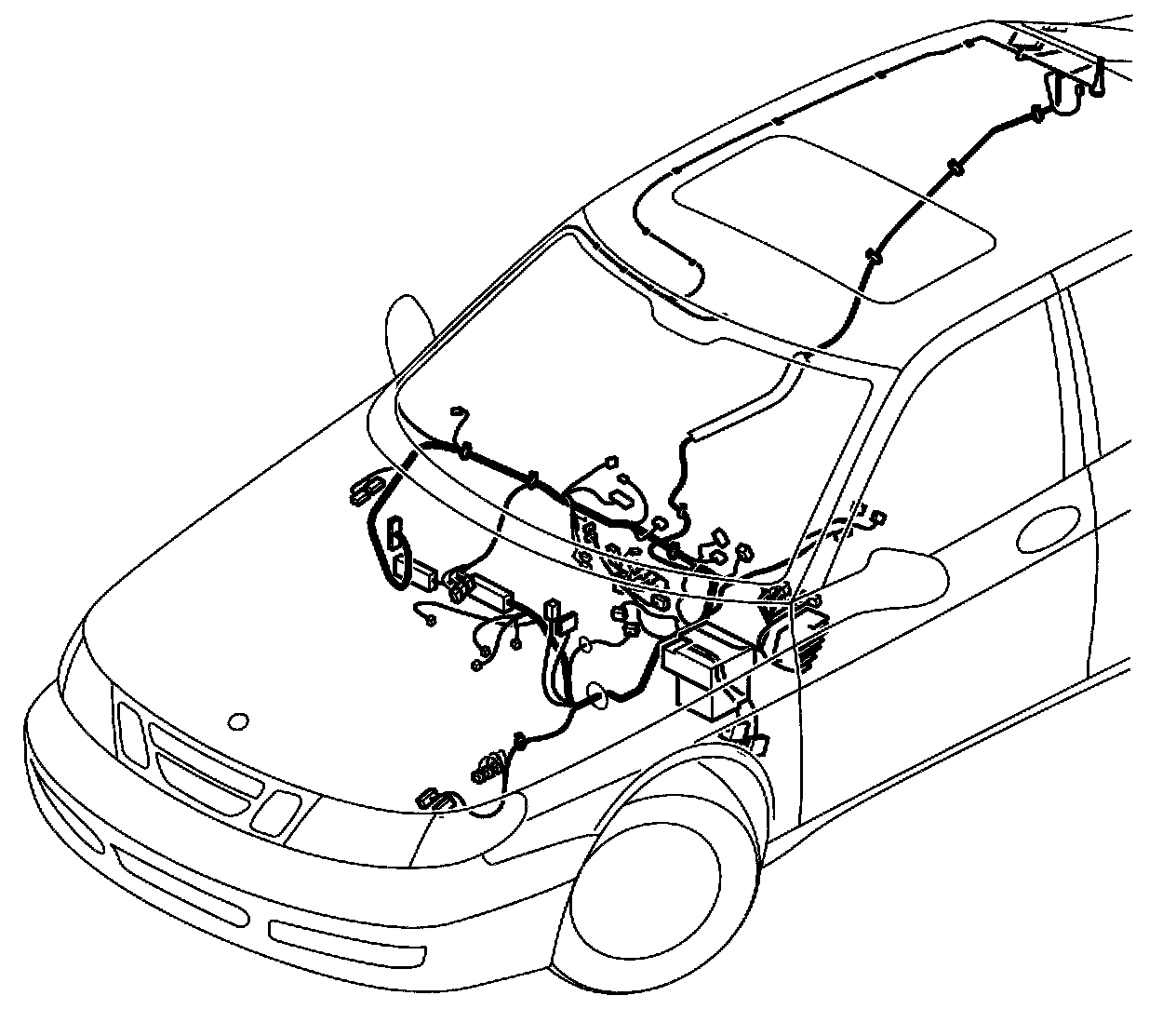

Dashboard Wiring Harness

Dashboard wiring harness, associated components:

SMS Component name
10 Switch, lights
19 Lamp, glove box light
20 Ignition switch
24 Switch, direction indicators
25 Switch, hazard flashers
29 Switch, brake light
31 Switch, reversing lights
36 Motor, ventilation fan
38 Motor, circulation flap
42 Level switch, brake fluid
43 Switch, handbrake
48F Cigarette lighter, front
48R Cigarette lighter, rear
54RR Door switch, rear, RH
61 Stalk switch, windscreen wipers
62F Motor, windscreen wipers
88 Switch, fog lights
91 Lamp, selector lever position indicator lighting
116 Switch, electrically heated rear window
133 Switch, clutch, cruise control
134 Switch, brake, cruise control
148F Lamp, ashtray/cigarette-lighter illumination, front
148R Lamp, ashtray/cigarette-lighter illumination, rear
220 Ventilation fan control
223 Solar sensor
242 Level switch, coolant
252LH Switch, heating pad, LH seat
252RH Switch, heating pad, RH seat
266FC Loudspeaker, dashboard, centre
266FL Loudspeaker, dashboard, LH
266FR Loudspeaker, dashboard, RH
266RR Loudspeaker, parcel shelf, RH
267a Connector, radio, switch A
267b Connector, radio, switch B
267c Connector, radio, switch C
276 Bonnet switch, anti-theft alarm
282 Switch, headlamp beam adjustment
305 LED, anti-theft alarm
331 Control module, SRS
333D Airbag, driver
333P Airbag, passenger
353 Radio/cassette player, audio system
354h Connection, amplifier, audio system
354 Amplifier, audio system
359RH Lamp, vanity mirror light, RH
375 Connector, mobile telephone
417 Temperature sensor, EXH
445 Data link connector, 16-pin, CARB
449 Switch, TCS OFF
502 Control module, TCM
503 Switch, electrically heated rear seat
540 Main instrument unit
541 Control module, SID
581 Solenoid valve, heat exchanger
613FL Lamp, floor lighting, front LH
613FR Lamp, floor lighting, front RH
615LH Switch, seat ventilation, LH seat
615RH Switch, seat ventilation, RH seat
618 Rheostat, intermittent wiper control
621 Temperature sensor, evaporator A/C
624 Antenna amplifier, radio
628 Control module, DICE
633 Switch unit, steering wheel
634 Microphone, mobile telephone
H10-5 Connector
H10-6 Connector
H16-3 Connector
H16-4 Connector
H43-1 Connector
H70-1 Connector
H80-1 Connector
