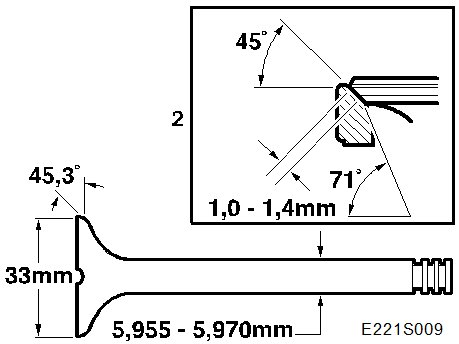

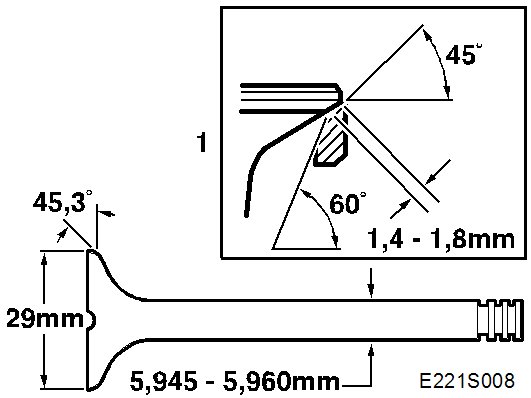

Valve, Intake/Exhaust
Valve, Intake/Exhaust
Valve Gear

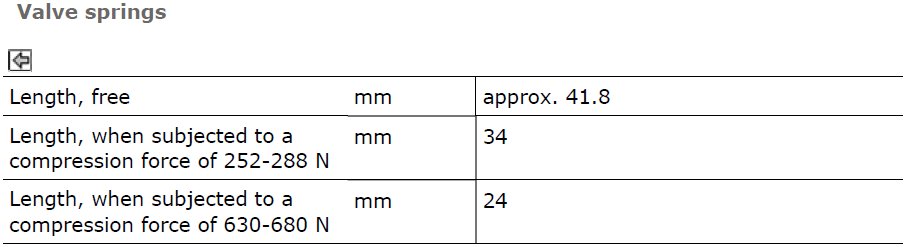

Note
The exhaust
valve springs
for the front cylinder head (6x) are "double coil springs", see illustration. Their mounting dimensions are the same as for the other valve springs however.
