Home >> Saab >> 2000 >> 9-5 SE Sedan (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Canister Purge Control Valve >> Trionic T7, V6 LEV (B308E) VIN: 040000-

Trionic T7, V6 LEV (B308E) VIN: 040000-

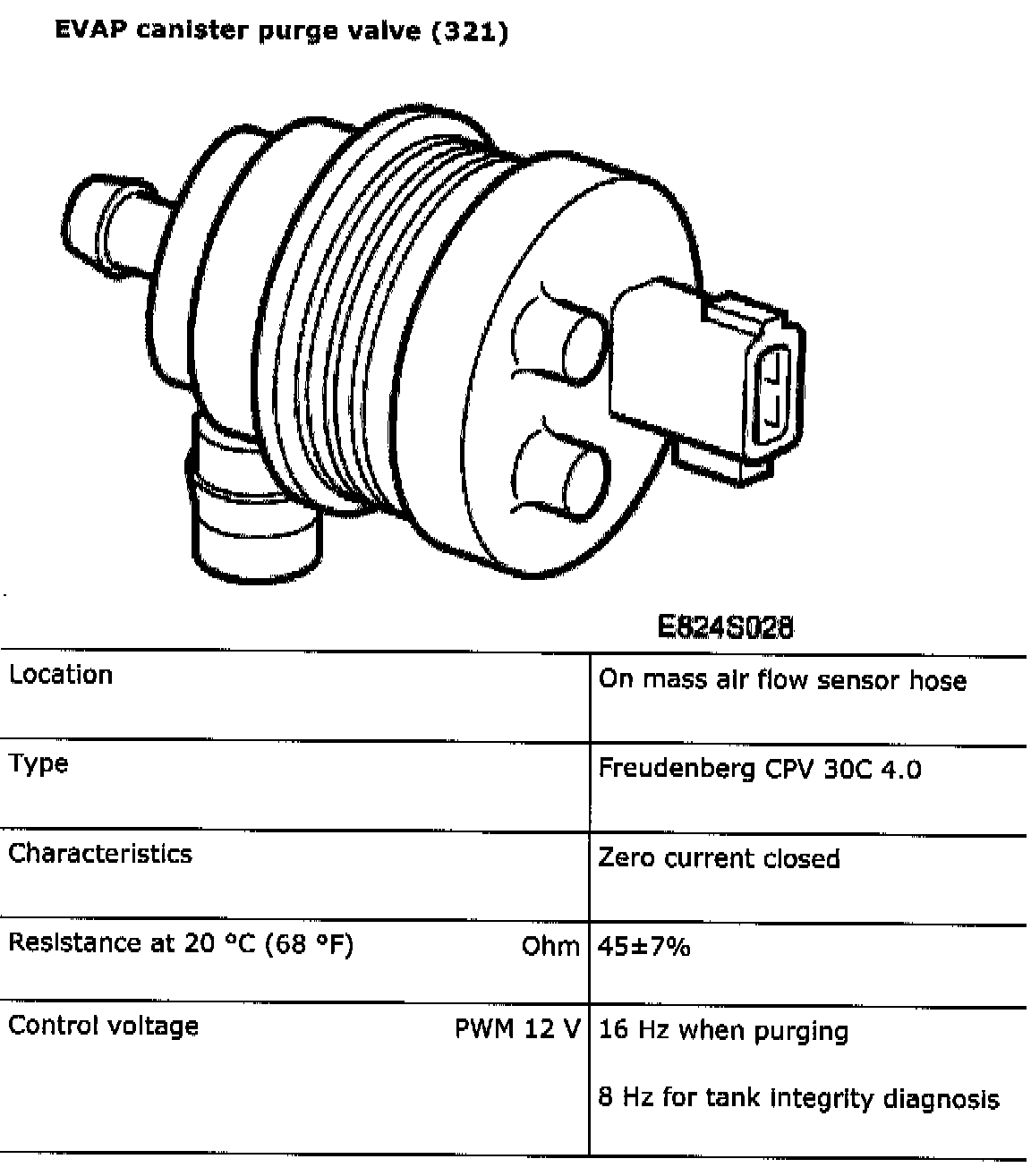

Image And Chart:
