Specifications
>>
Electrical Specifications
>>
Air Door Actuator / Motor, HVAC
>>
Stepping Motor, Mixed-Air (222 LH/RH)
Stepping Motor, Mixed-Air (222 LH/RH)

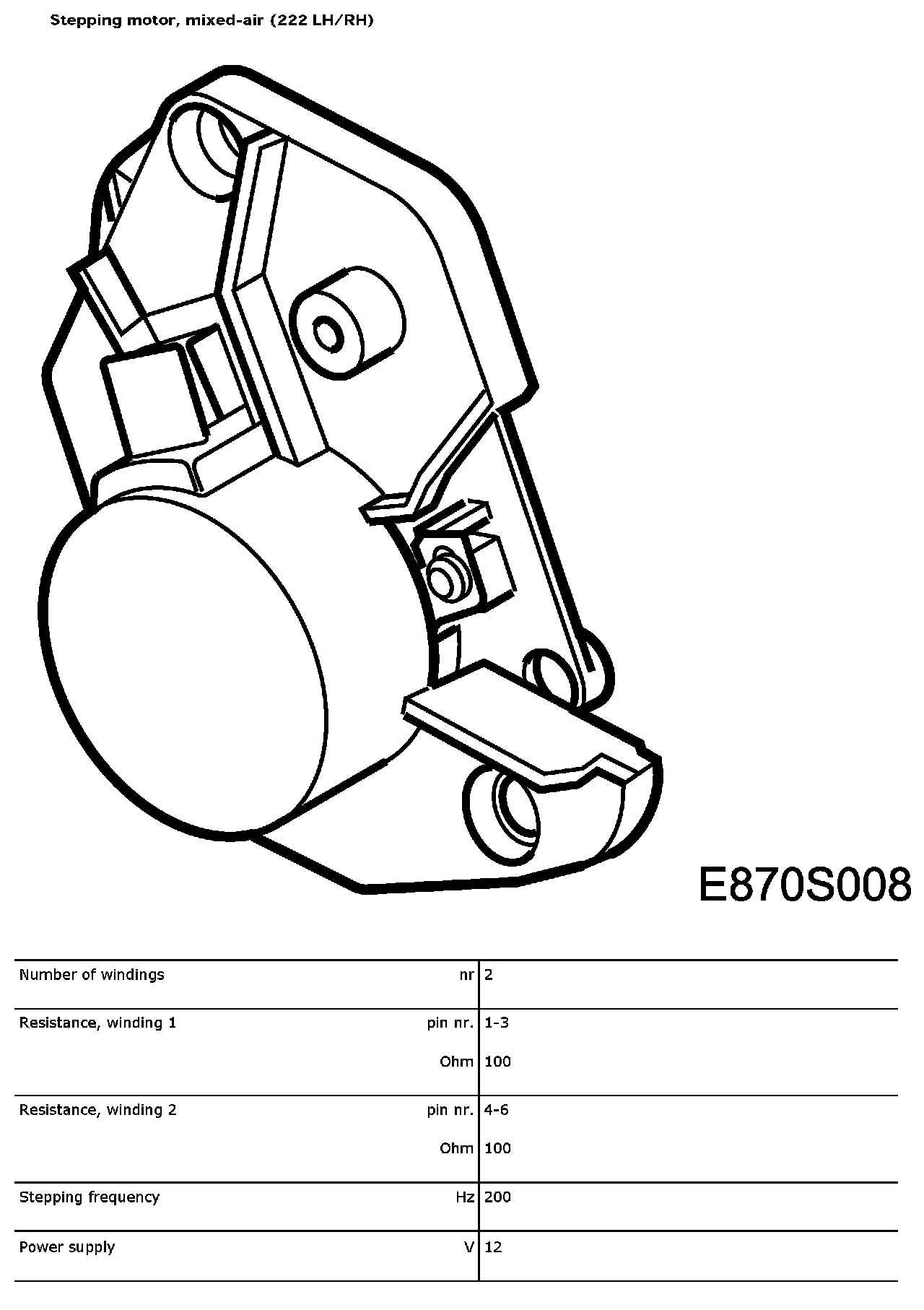

Stepping Motor, Mixed-air (222 LH/RH):

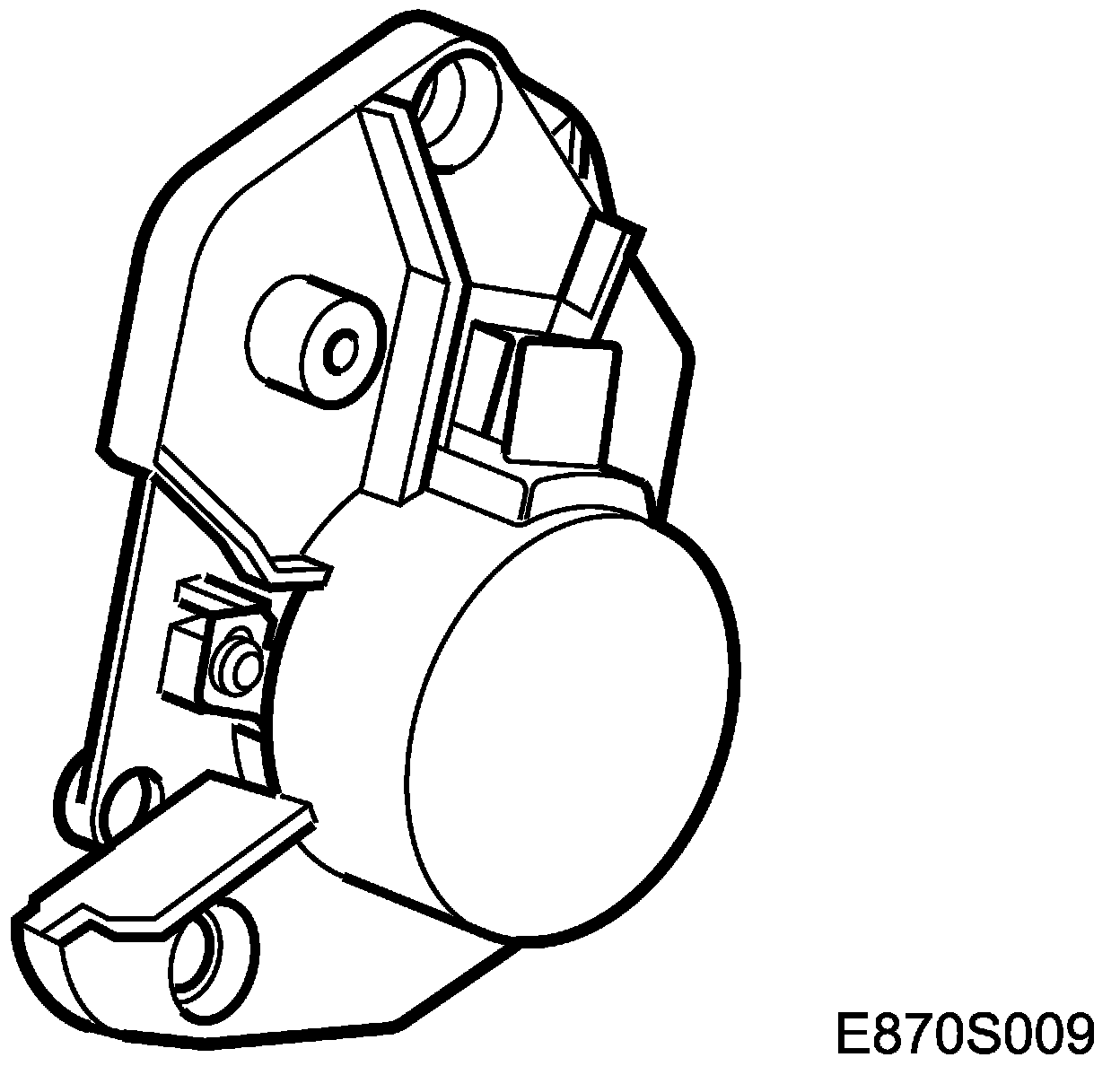

Stepping Motor, Mixed-Air (222 LH/RH):
