Procedures

Resetting activated limp-home solenoid

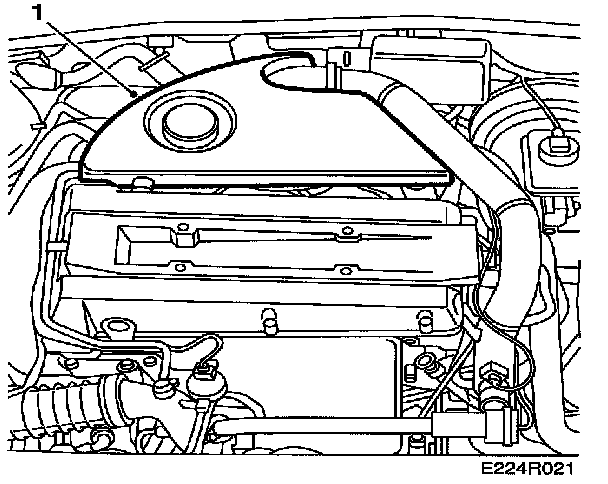

1 Remove the engine cover.

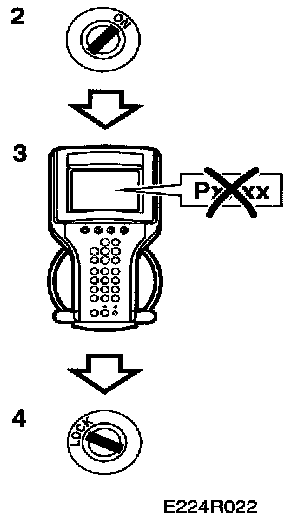

2 Turn the ignition switch to ON.
3 Contact the Trionic and clear diagnostic trouble codes.
4 Turn the ignition switch to OFF and wait 10 seconds.

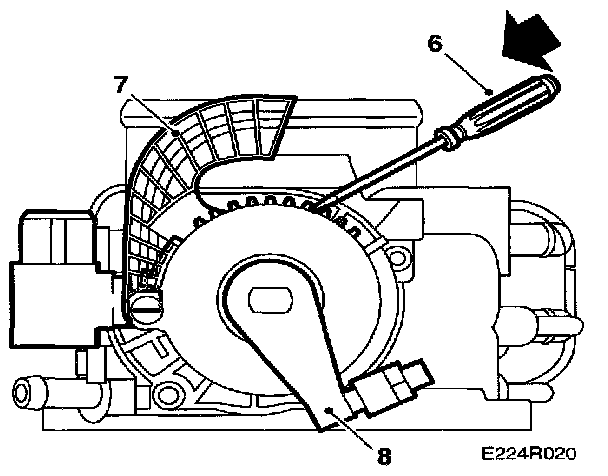

5 Carefully push the end 0f the spring towards the throttle body.






6 Turn the black toothed disc anticlockwise, using a screwdriver. When it reaches the stop position a click will be heard.
7 Turn the pedal arm clockwise.
8 Check that the throttle arm does not follow the movement of the pedal arm.
