Accelerator Pedal: Adjustments

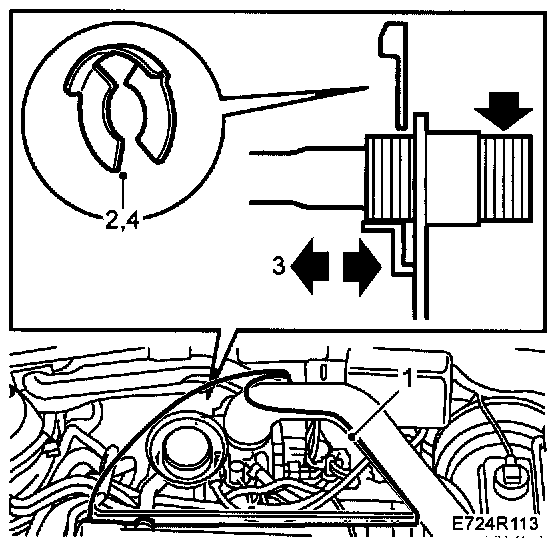

1 Remove the engine cover.





2 Undo the Cable adjuster clip.
3 Adjust the tree play in the cable by holding the pedal arm in the fully spring-loaded return position with one hand while moving the cable towards a taut position with the other hand. Then, slacken it to the nearest groove on the sleeve
4 Fit the clip.
