Evaporative System Service Port: Service and Repair

To remove
1 Open the bonnet and cover the wings.





2 Detach the power steering fluid reservoir

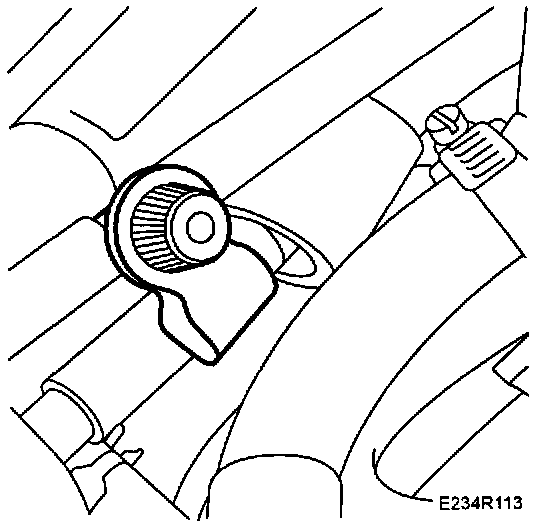

3 Cut the cable tie securing the vent hose.
4 Carefully cut a groove in the chafing guard on both sides of the service port but do not cut through completely.
5 Fold back and cut off excess chafing guard
6 Separate the service port and the line by carefully cutting off the vent line with a sharp knife, scalpel or similar tool.

NOTE:
Cut the line so that as short a piece as possible is used.
Note the position of the service port.

To fit





1 Press the vent line onto the service port with tool 83 94 546.

NOTE: The service port must be pointing in the same direction as before removal.

2 Secure the hose with a cable tie.





3 Fit the power steering fluid reservoir.
4 Pressurize the system with the EVAP equipment and check for leaks in the service port installation.
