Evaporative Emission Canister-I

To remove
1 Raise the car.





2 Remove the right-hand front wheel.
3 Remove the wing liner from the wheel housing. Press in the plastic liner and bend it down to remove it.

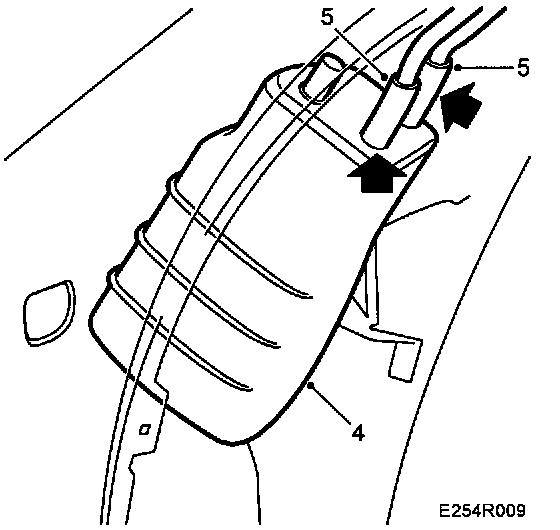

4 Remove the evaporative emission canister by unhooking it from its mounting.





5 Mark and remove the two connected hoses.
6 Change the filter.

To fit
Fit in reverse order.

Tightening torque:
Wheel: 120 Nm (88.5 lbf ft)
