Checking A Missing Condition

Checking A Missing Condition

- Turn the ignition switch to the ON position.

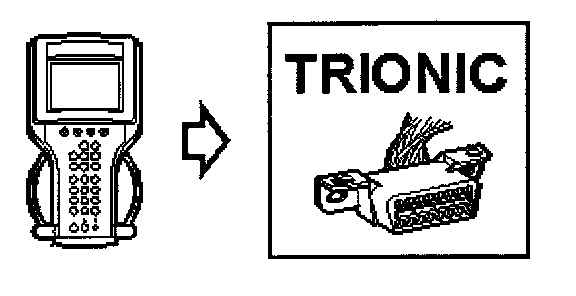

- Contact Trionic.
- Read all values in the group:
CONDITIONS FOR CRUISE CONTROL





- Start the engine and run it at idling speed.





- Depress the brake pedal for a second or so.

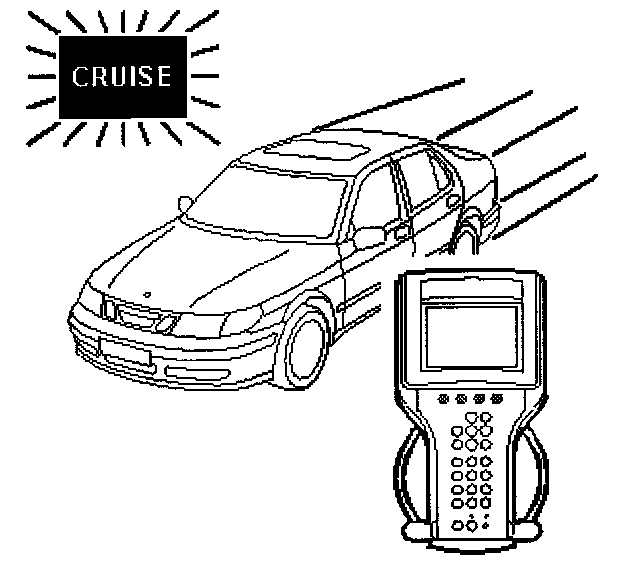

- Drive the car at speeds above 40 km/h.
- Move the Cruise Control switch to 'ON/OFF' and then release it.
- All readings should show 'ON'.

NOTE: Disregard the 'All inputs allow cruise control' readout, which always shows 'OFF' until all conditions have been satisfied.

Is the function correct?

NO - Determining the Cause of A Fault

YES - Final Check
