Test the Odometer/Trip Meter

Test The Odometer/trip Meter

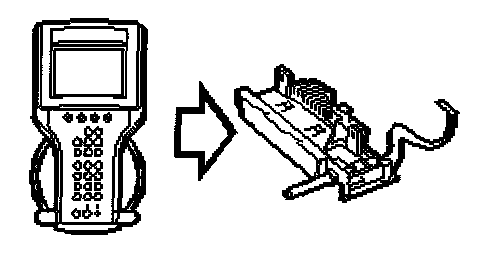

^ Contact Main Instrument unit.





^ Activate the odometer or trip meter with the diagnostic tool.

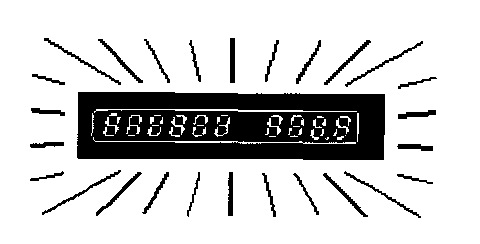

^ All segments should light up.

Is the function correct?

NO ^ Continue with Test The Odometer/trip Meter.

YES ^ Final Check





^ Check the bulb in the instrument.

Is the function correct?

NO ^ Change the bulb.

YES ^ Change the display unit.

After performing this procedure Final Check
