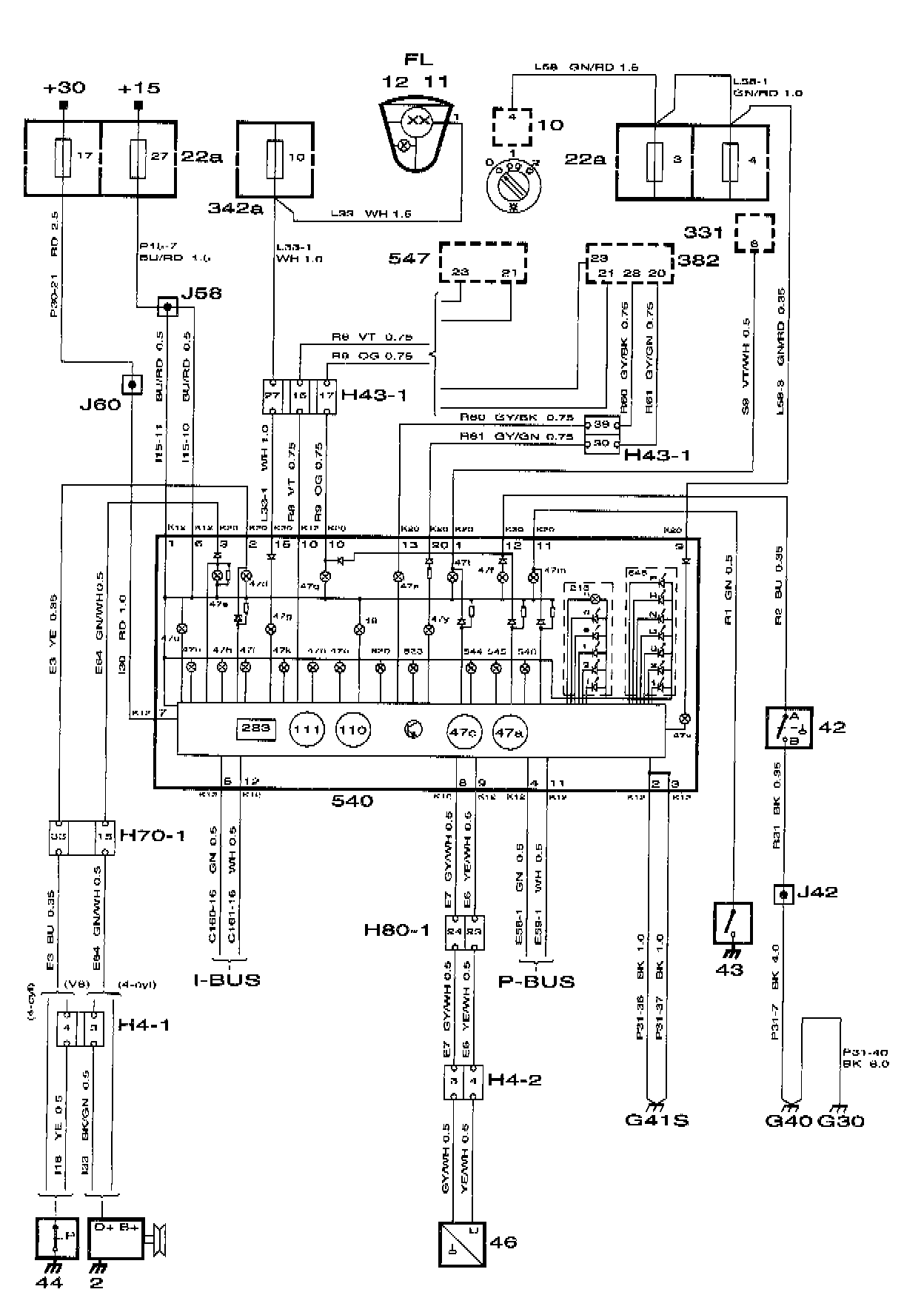

Instrument Panel Display

Instrumentation Display

NOTE: Go to "Vehicle/Locations/List of Components" for an association of reference numbers to the component name.
