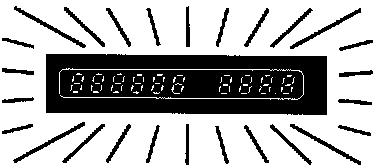

Fault symptoms
The trip meter is reset each time the car is started.

Diagnostic procedure

1. Checking the power supply
^ Make sure that current is being supplied to fuse 17.

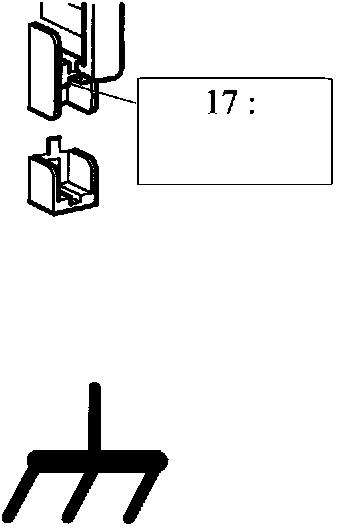

^ Connect a test lamp to fuse 17 and a good ground.





^ The test lamp should light up.





Is the function correct?
YES
^ Go to step 2.
NO
^ Repair or replace the lead.
^ Go to step 4.

2. Checking the fuse
^ Check that fuse 17 is intact.





Is the function correct?
YES
^ Go to step 3.
NO
^ Replace: Fuse 17.
^ Go to step 4.

3. Checking the power supply

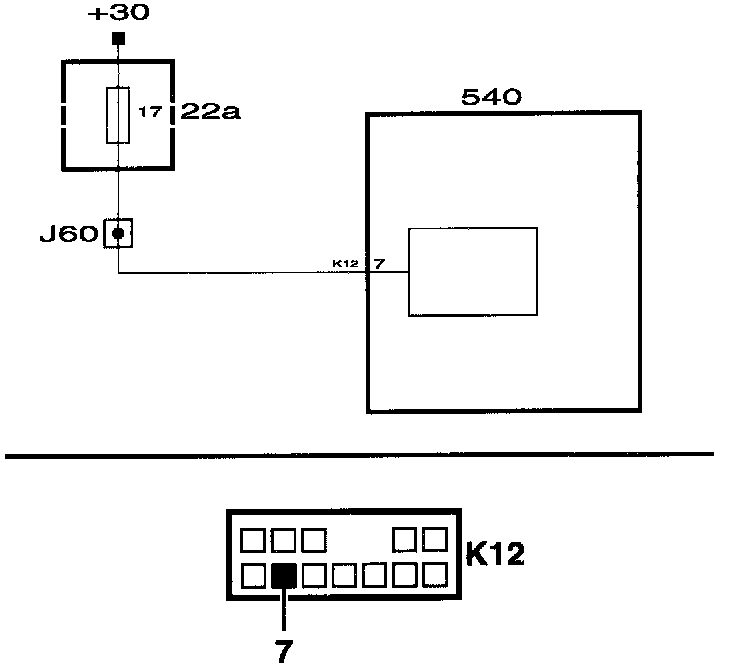

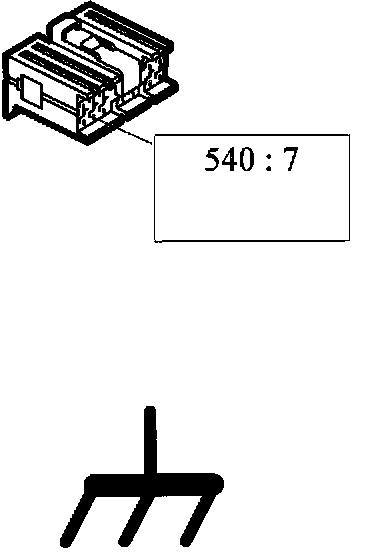

^ Unplug the main instrument unit's 12-pin connector: (540)





^ Connect a test lamp to pin 7 of MIU K12 and a good ground.





^ Turn the ignition switch to ON.





^ The test lamp should light up.





Is the function correct?
YES
^ Go to step 4.
NO
^ Repair or replace the lead between fuse 17 and the main instrument unit.
^ Go to step 4.

4. Final check
^ Clear diagnostic trouble codes in all systems.





^ Carry out a function check.





Is the function correct?
YES
^ The steps taken to rectify the fault were correct.
NO
^ See Fault diagnosis, general, "Before changing a control module." Before Changing A Control Module
