Washer Fluid System (5D)
^ Control module, DICE (628)
^ Stalk switch, windscreen wipers (61)
^ Rear window wiper switch (61a)
^ Washer fluid pump relay (432)
^ Intermittent wiper rheostat (618)
^ Headlamp washer fluid, pump motor (63a)
^ Window washer fluid, pump motor (63b)

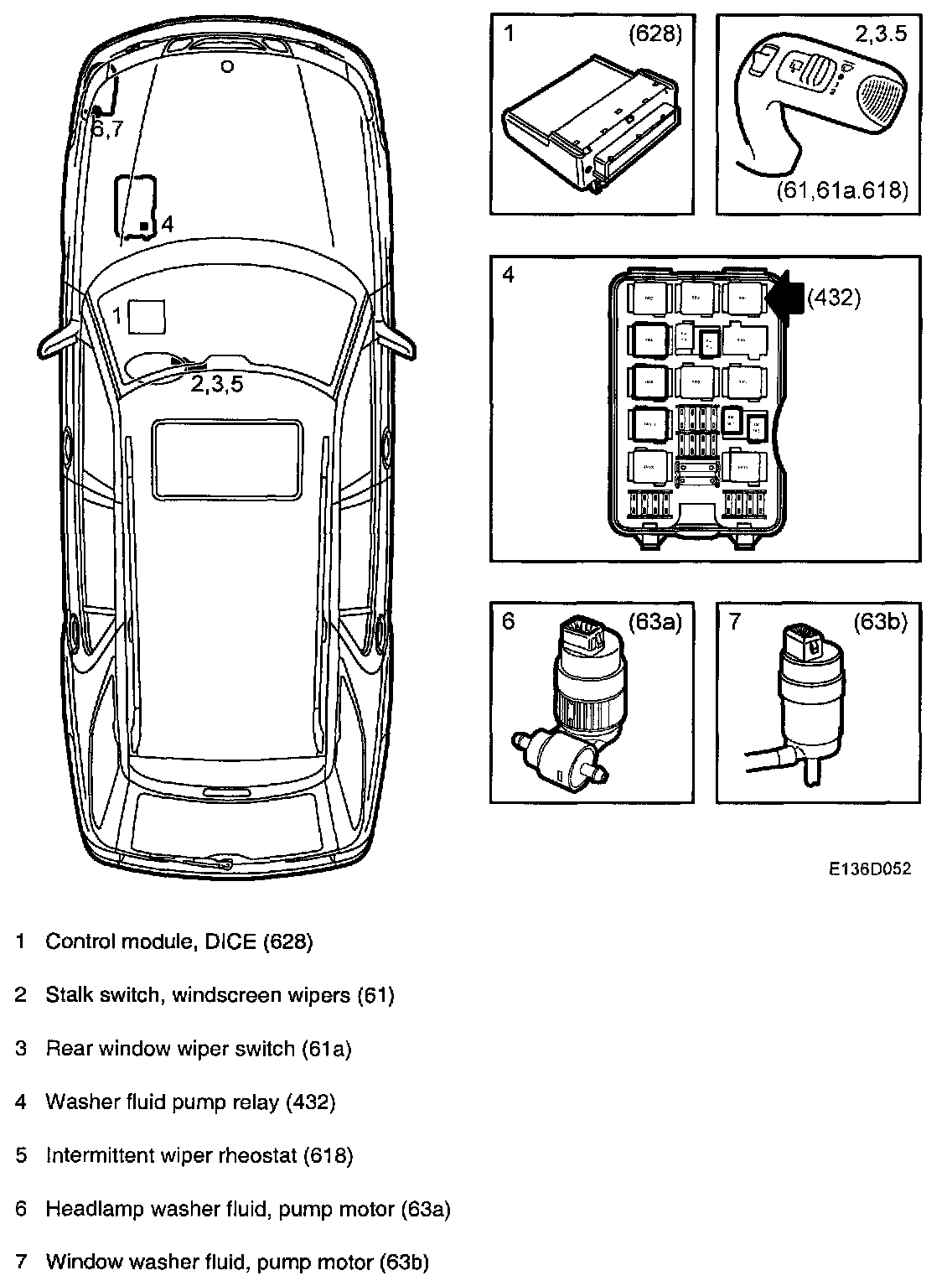

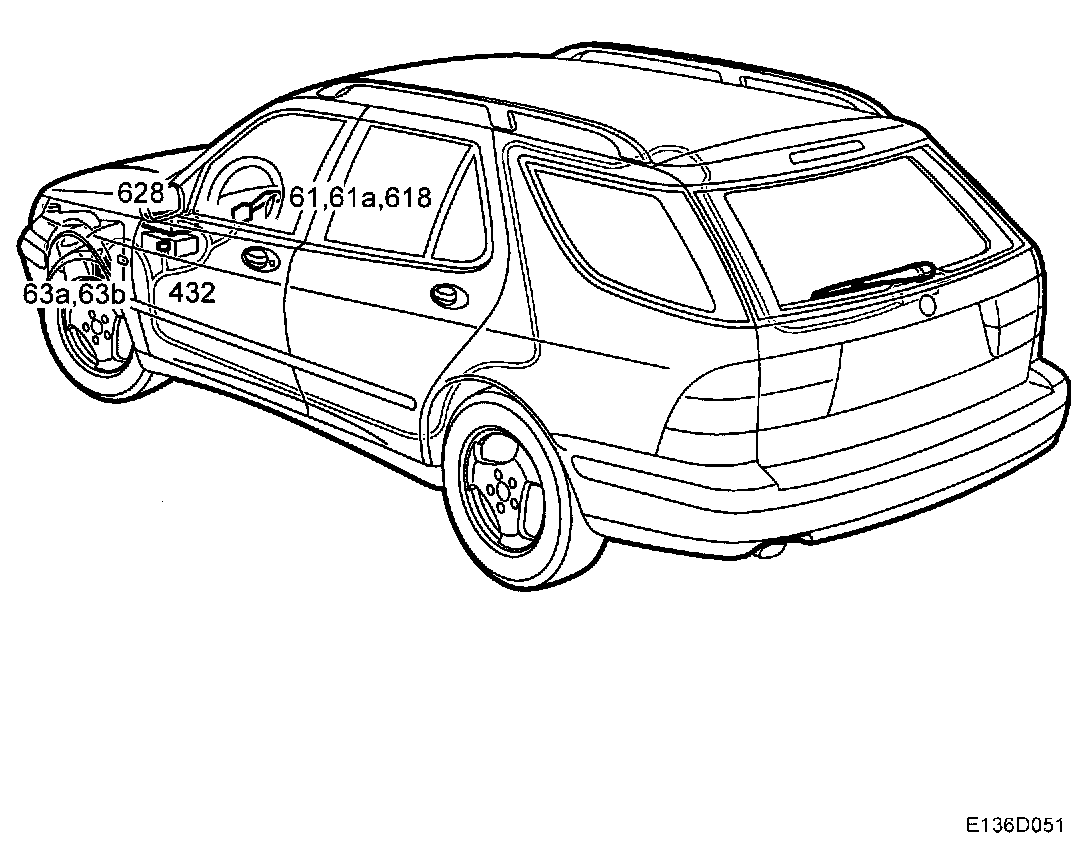

Main Components, Washer Fluid System (5D):
