Checking Compressor Engagement

Checking Compressor Engagement





Start the engine and run it at idling speed.

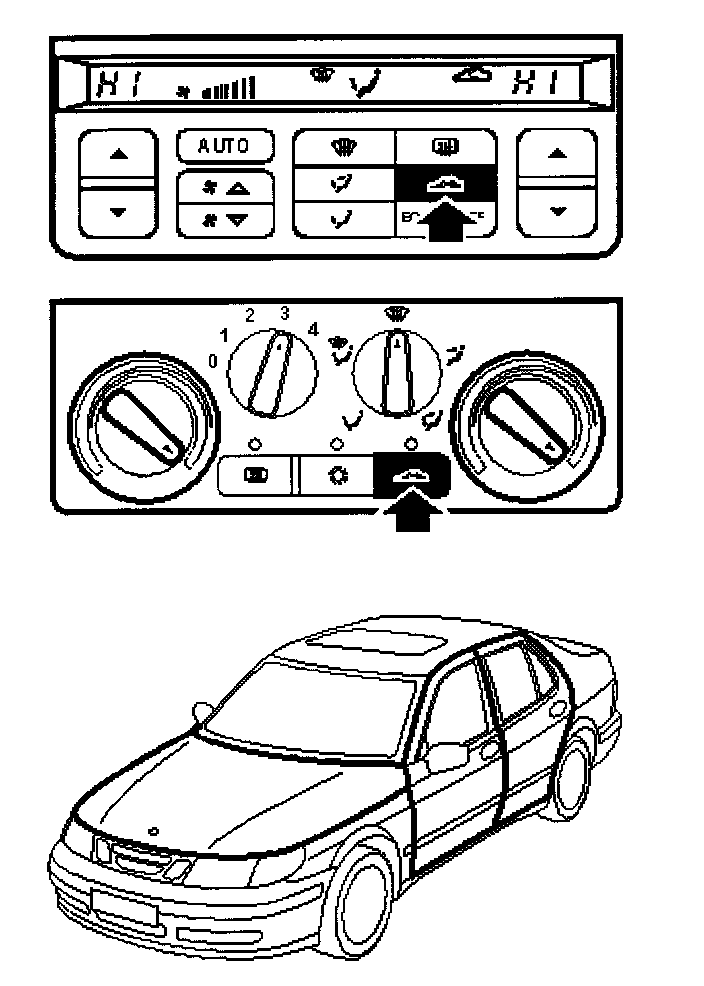

^ Turn on air recirculation, select maximum heat for both zones and set the fan to maximum speed.
^ Close all the doors and windows. Wait for five minutes.
The compressor should run continuously.

Is the function correct?

NO ^ Checking Conditions For Engagement

YES ^ Checking Evaporator Temperature In DICE - I
