Right-Hand

Engine mounting, right-hand
To remove





1 Drape wing protectors over the wings.
2 Position a jack under the oil sump, using a wooden block or the like between sump and jack, and take the weight of the engine off the engine mounting.

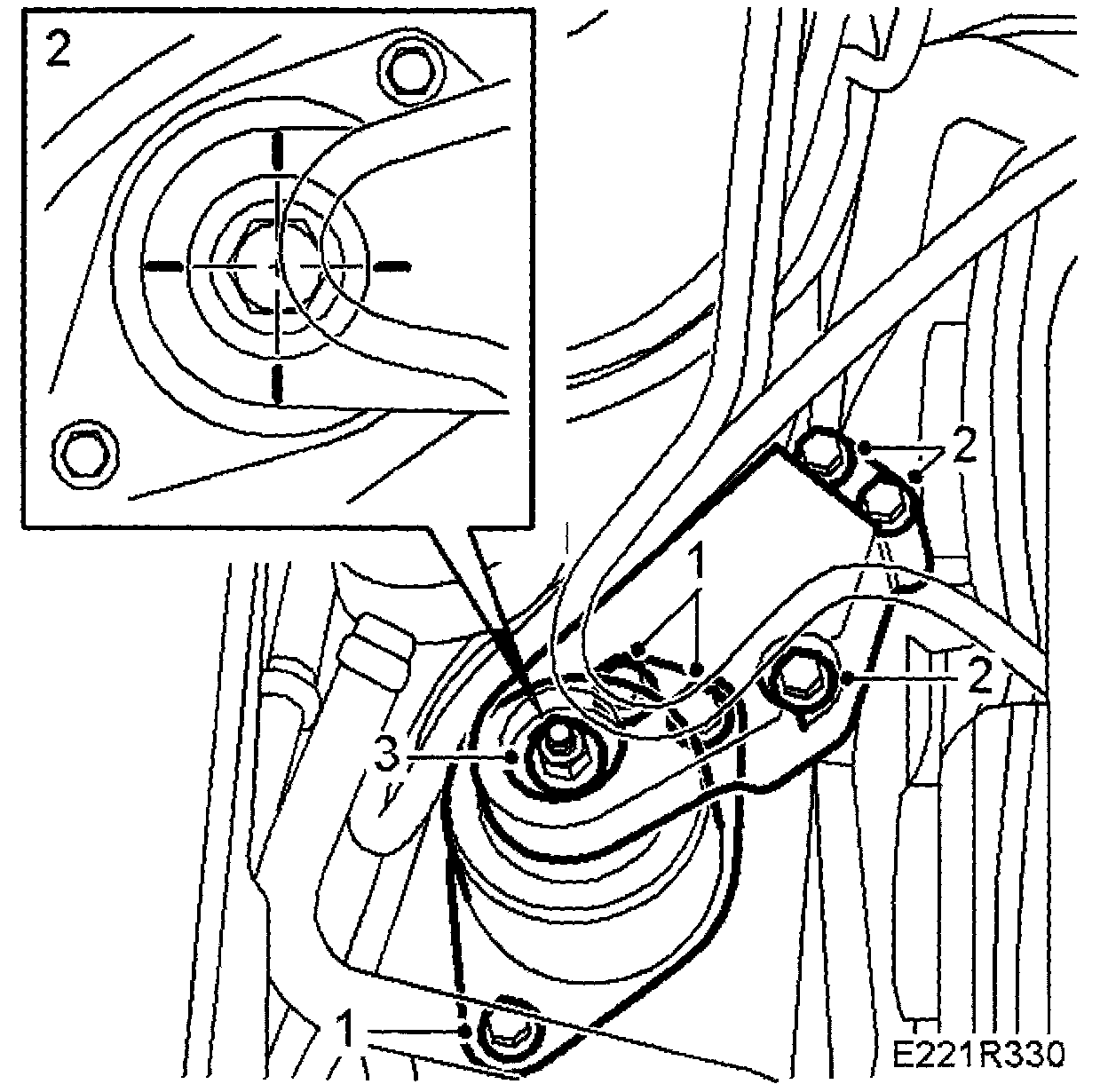

3 Mark the position of the engine mounting on its yoke with a cross.
4 Remove the engine mounting's yoke.

IMPORTANT: Since the retaining yoke's bolts are screwed into aluminum, it is easy to damage the threads in the metal.

5 Remove the engine mounting.

To fit
1 Fit the engine mounting.
Tightening torque: 63 Nm (46.5 ft. lbs.)





2 Fit the yoke, center the engine mounting in the yoke as marked, lower the engine and check that it hangs neutrally by shaking it.
3 Tighten the engine mounting's retaining nuts, using a torque wrench.
Tightening torque: 105 Nm (77.5 ft. lbs.)
4 Remove the jack and wing protectors.
