Crimp Connection J58, Instrument Harness
Crimp Connection J58, Instrument Harness
Location:
On the centre console between the front seats.

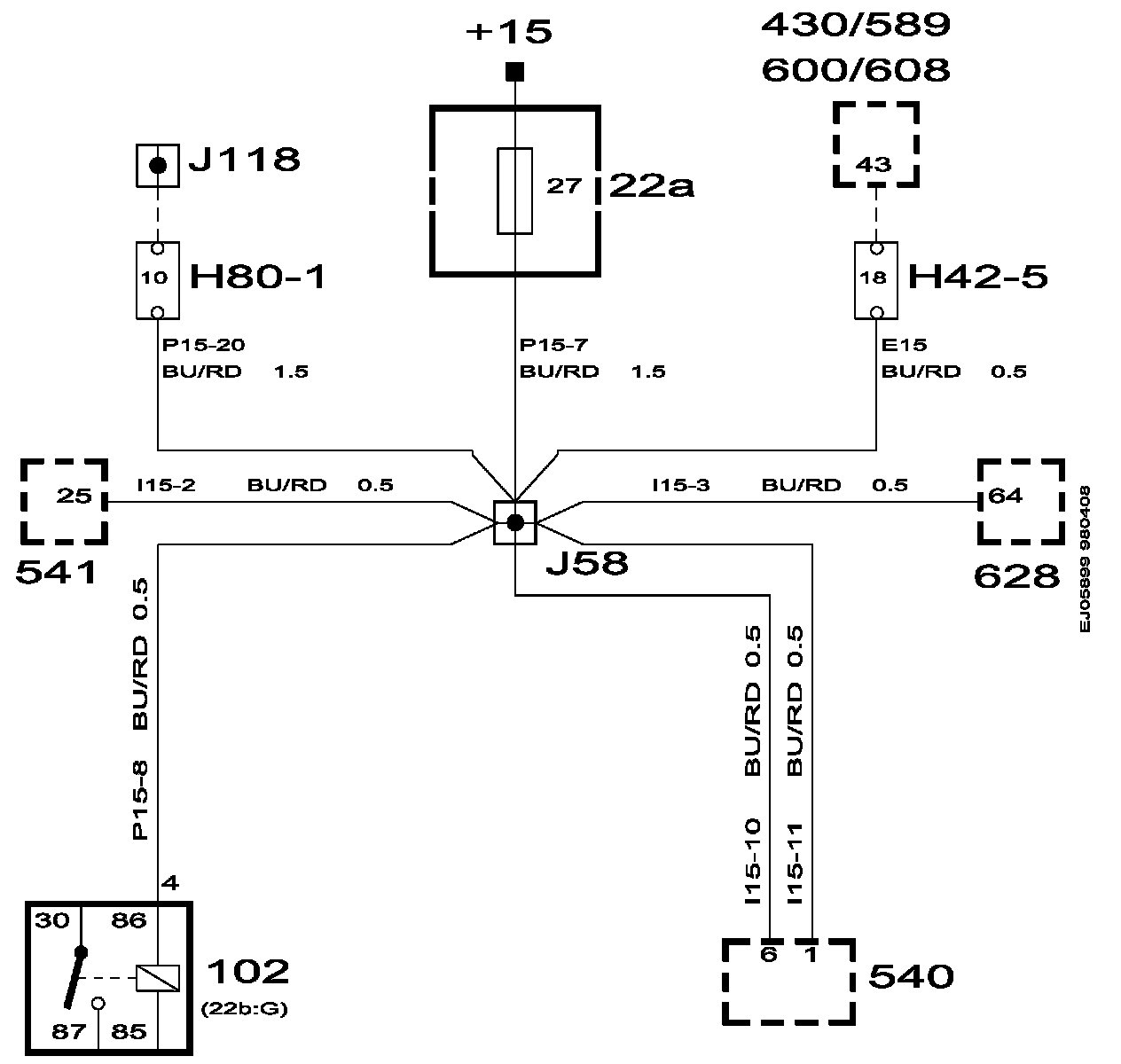

Crimp Connection J58, Instrument Harness:
Connected Components:
