Grounding Point G30

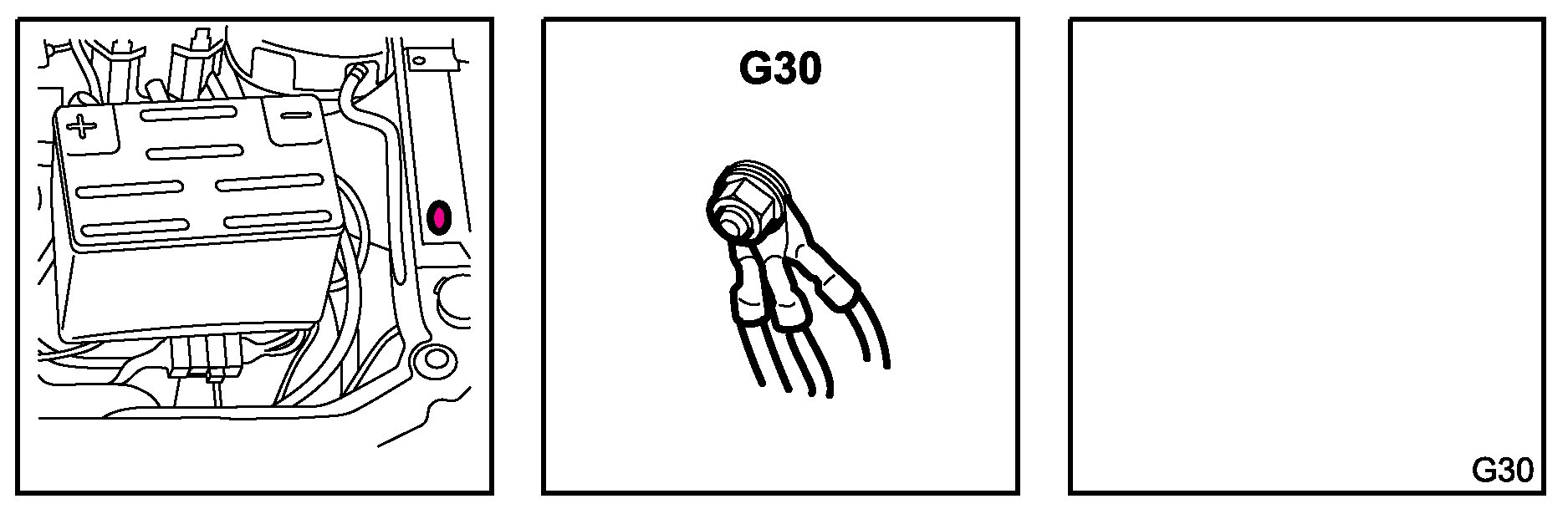

Location: In the engine bay, on the side section in front of the left-hand wheel housing.

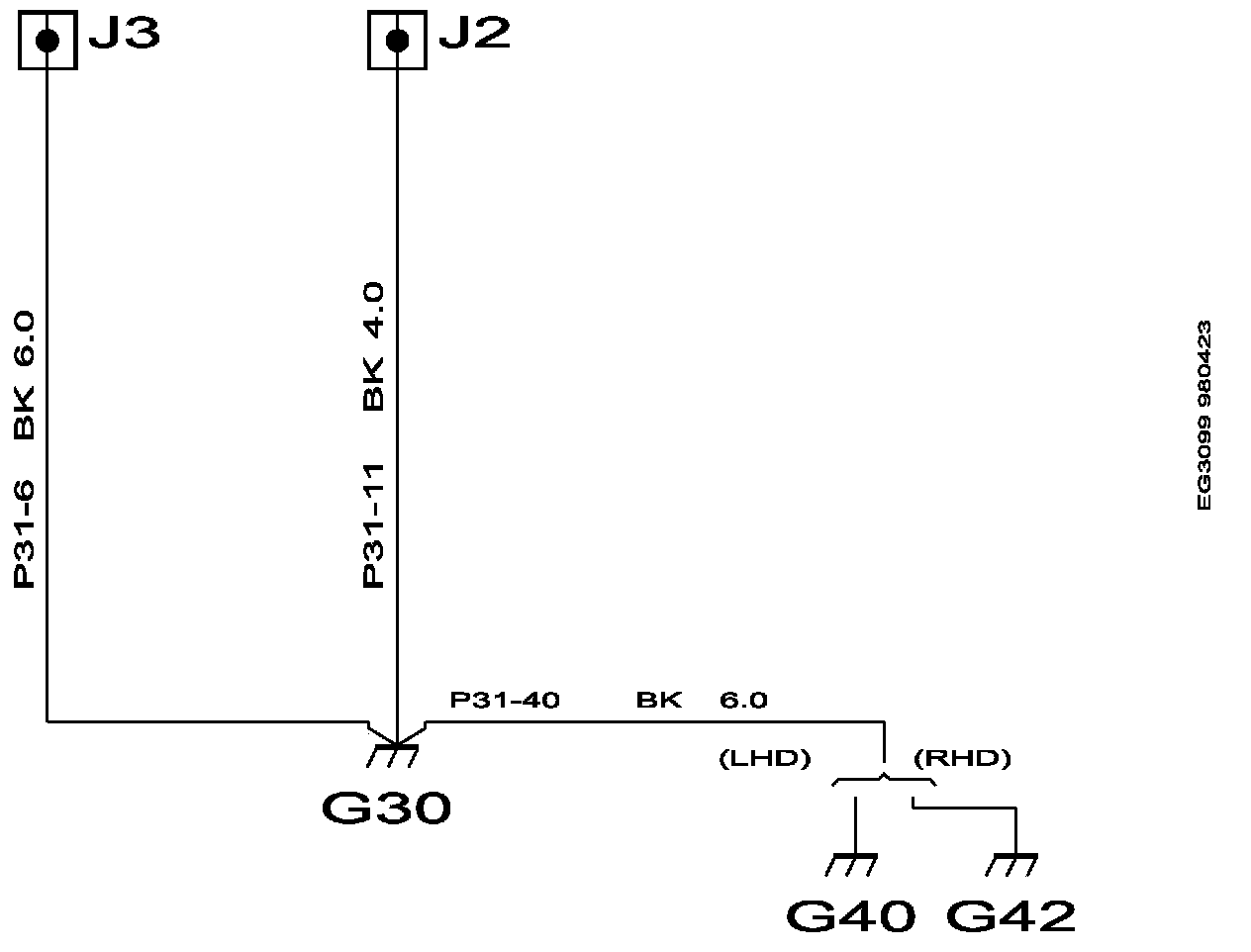

Grounding Point G30:

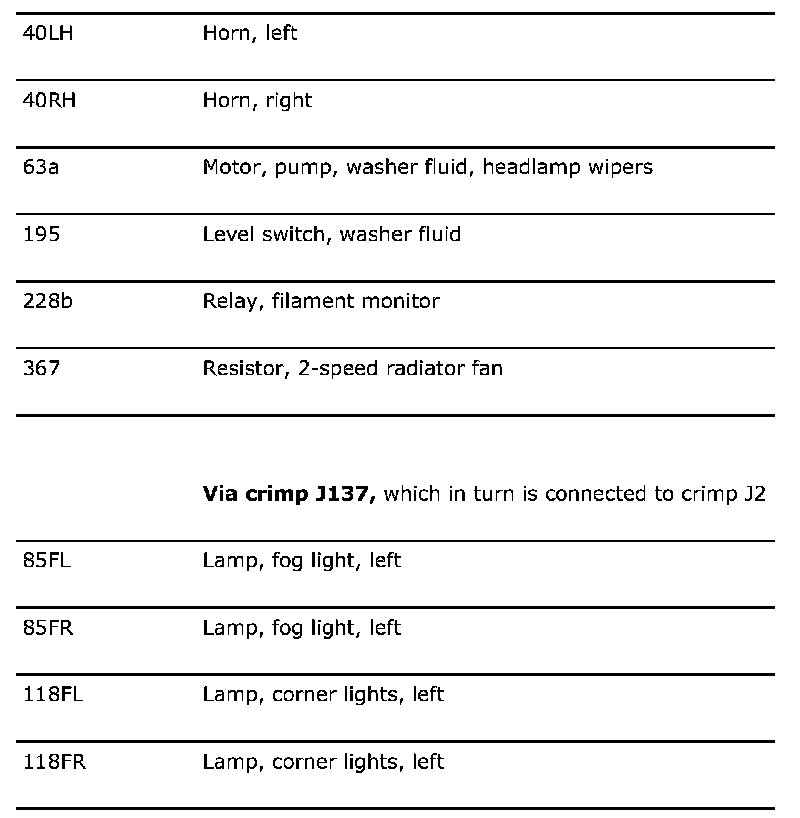

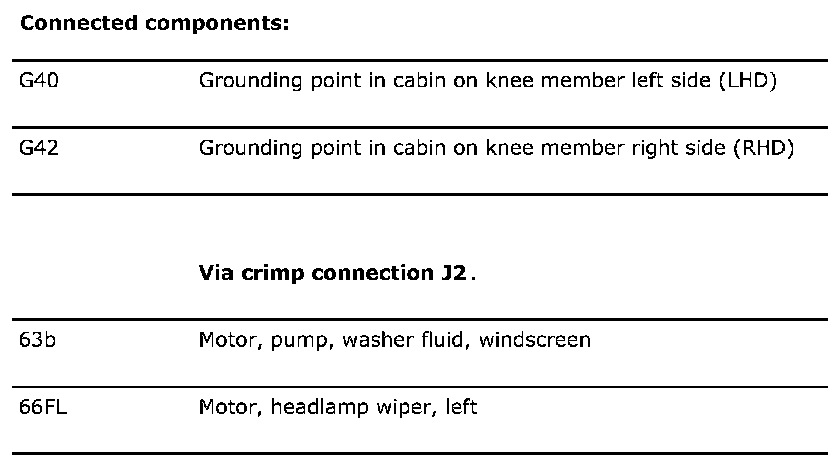

Connected Components (Part 1):

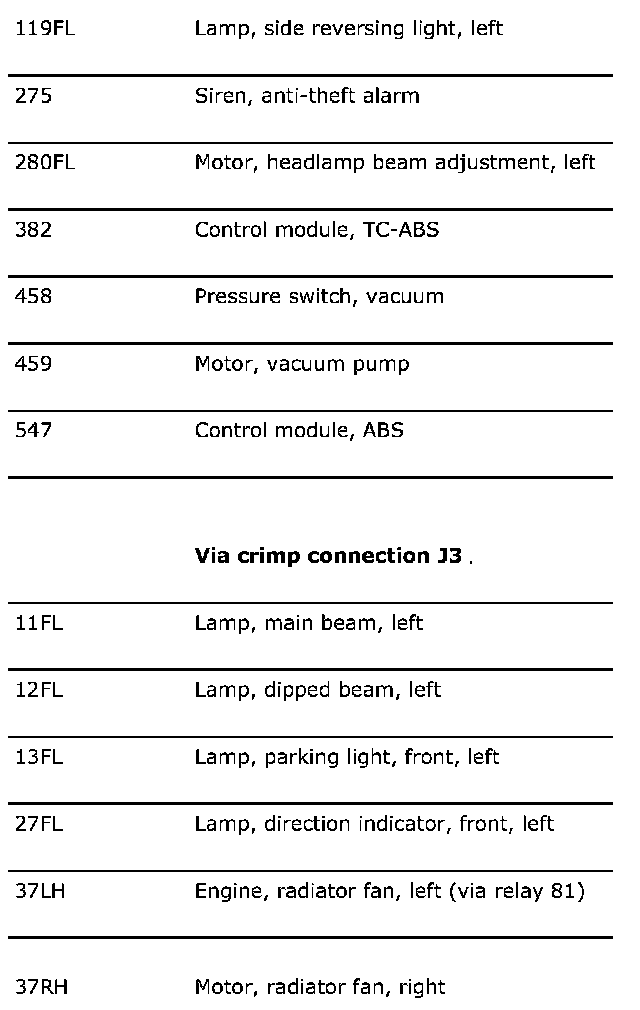

Connected Components (Part 2):
Connected Components (Part 3):
Location: In the engine bay, on the side section in front of the left-hand wheel housing.
