Electrically Adjustable Driver's/Passenger Seat




Electrically adjustable driver's seat

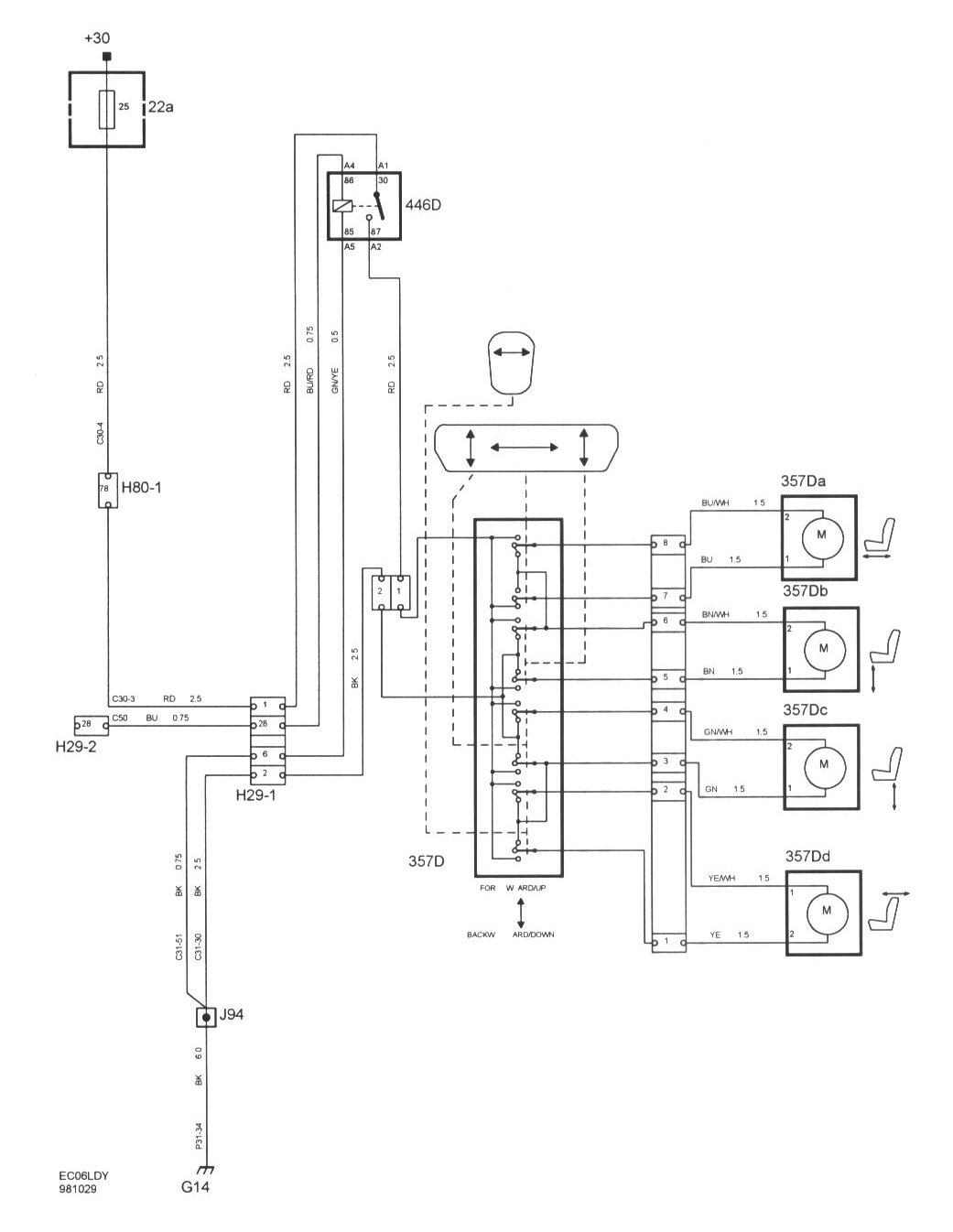

Diagram, LHD:











Diagram, RHD:

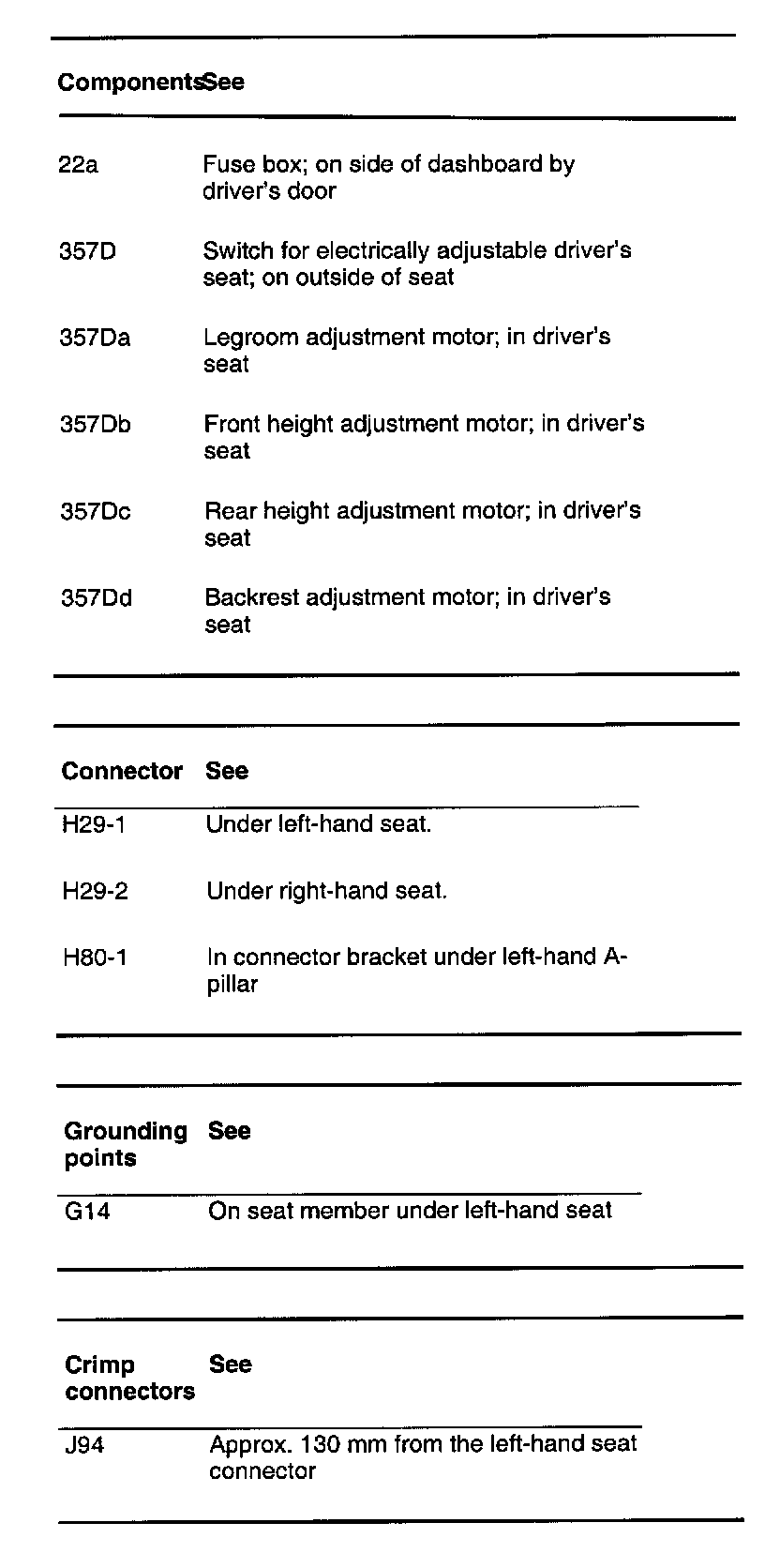

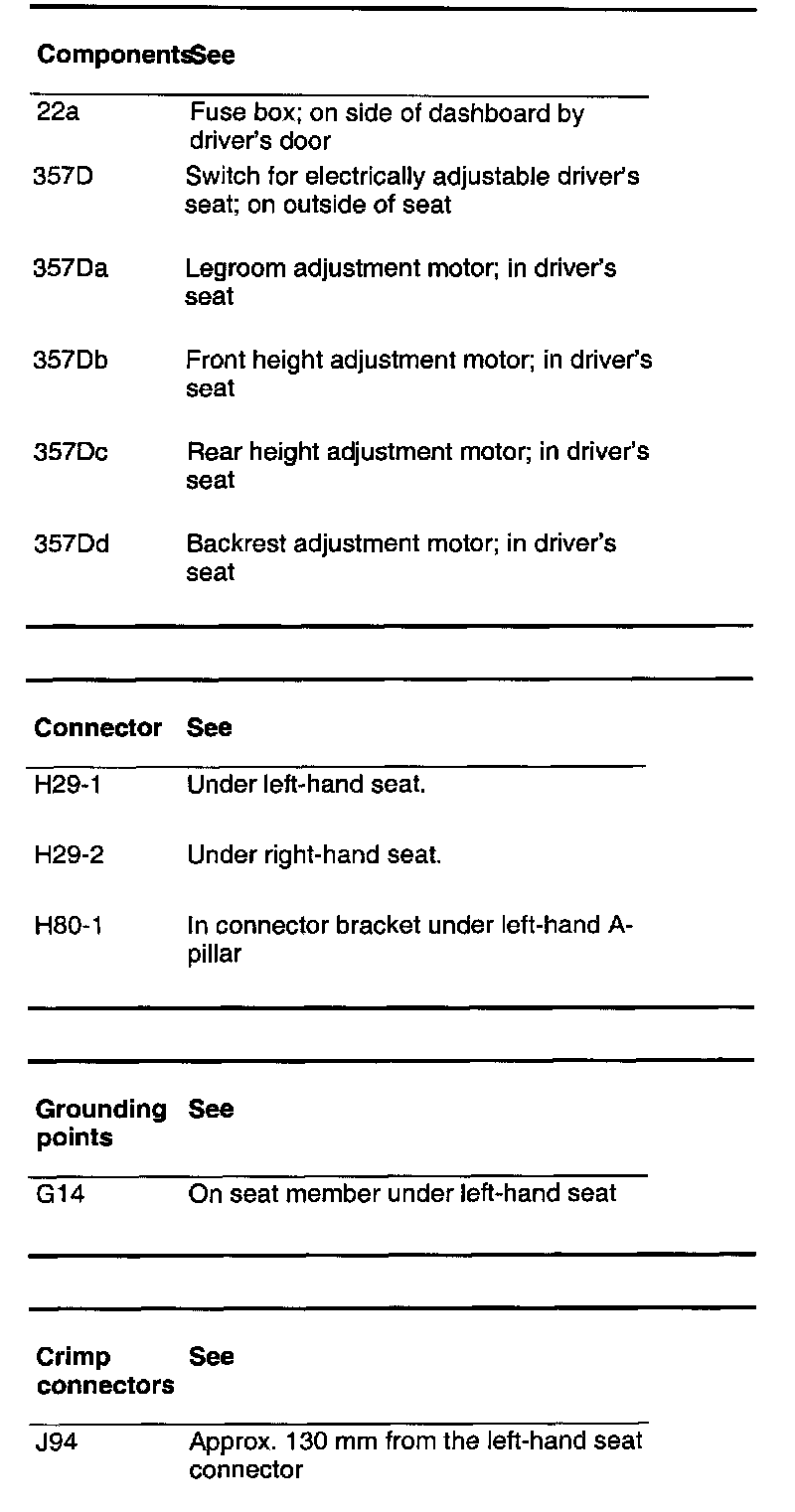

List Of Components, RHD:






Electrically adjustable passenger seat

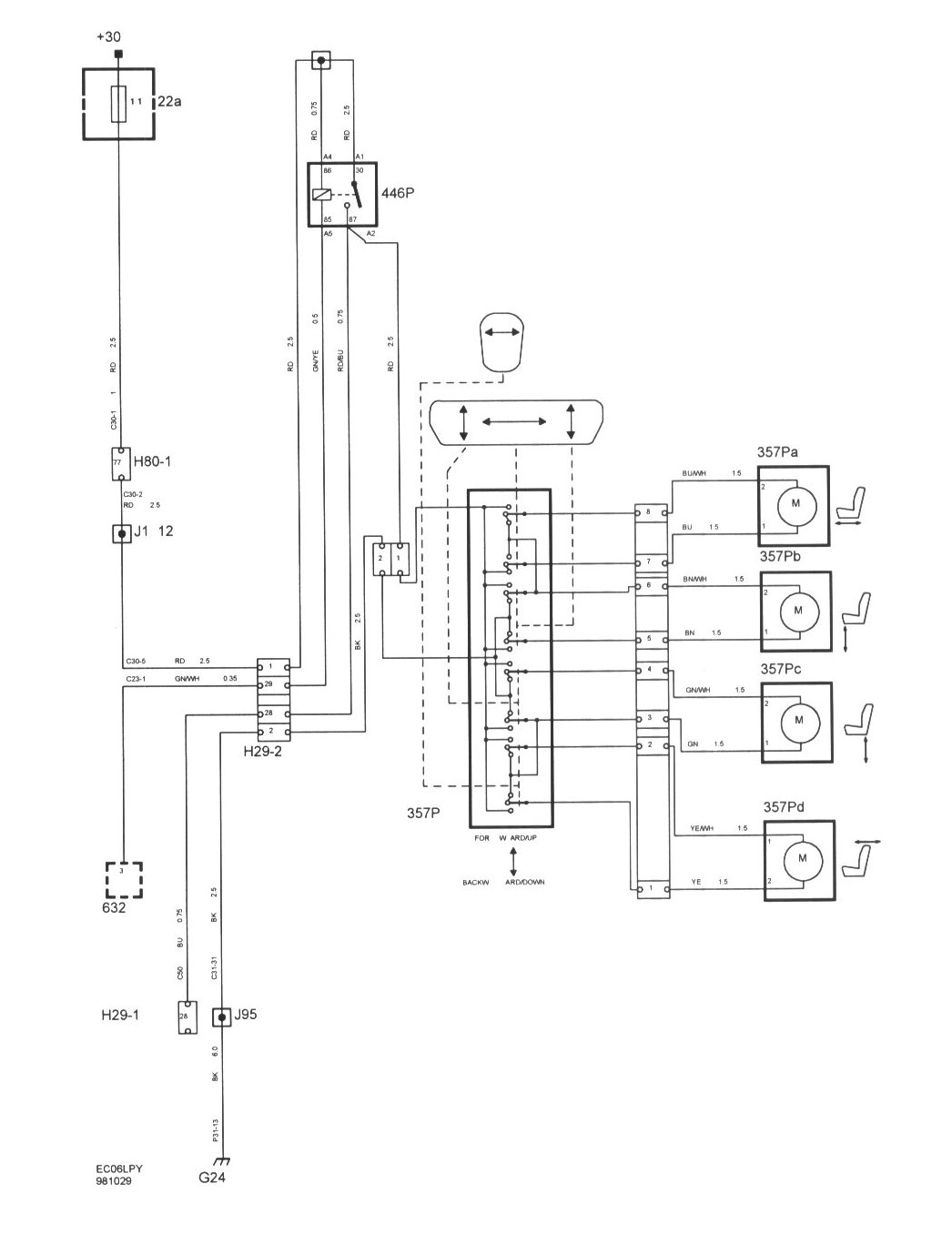

Diagram, LHD:

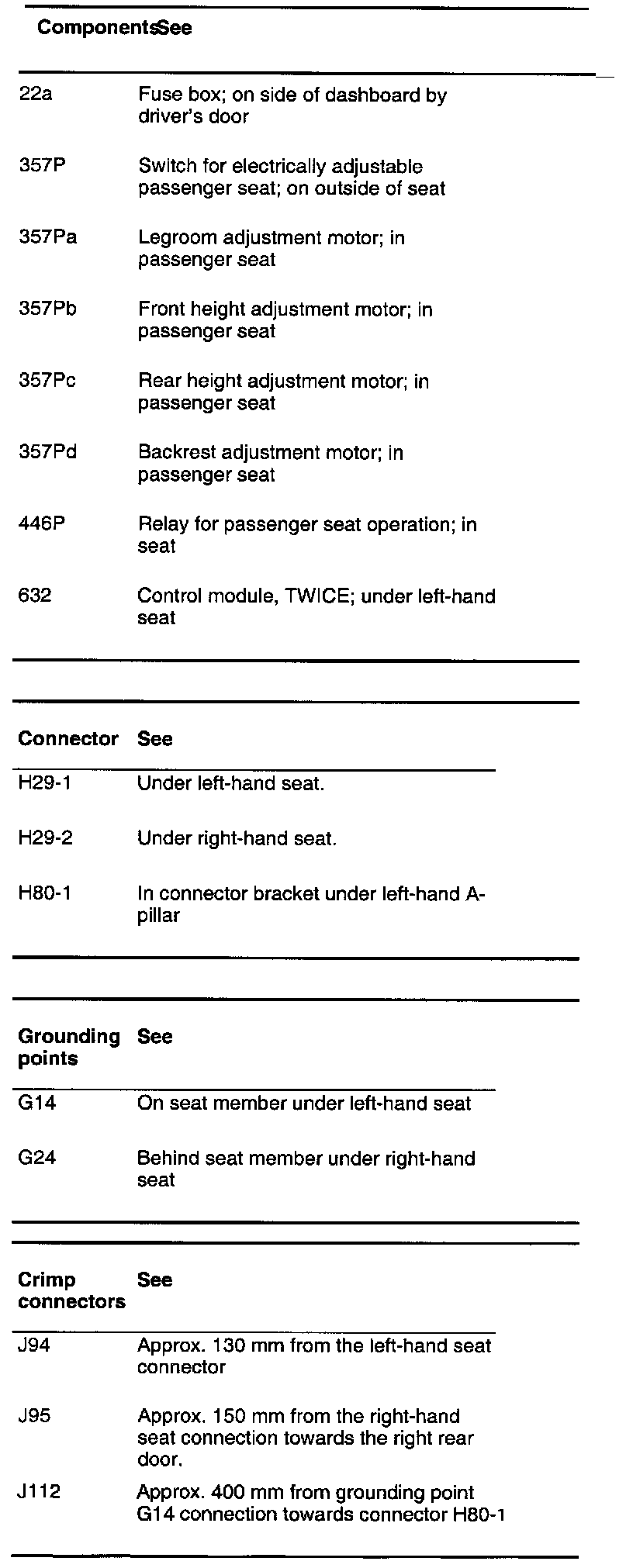

List Of Components, LHD:

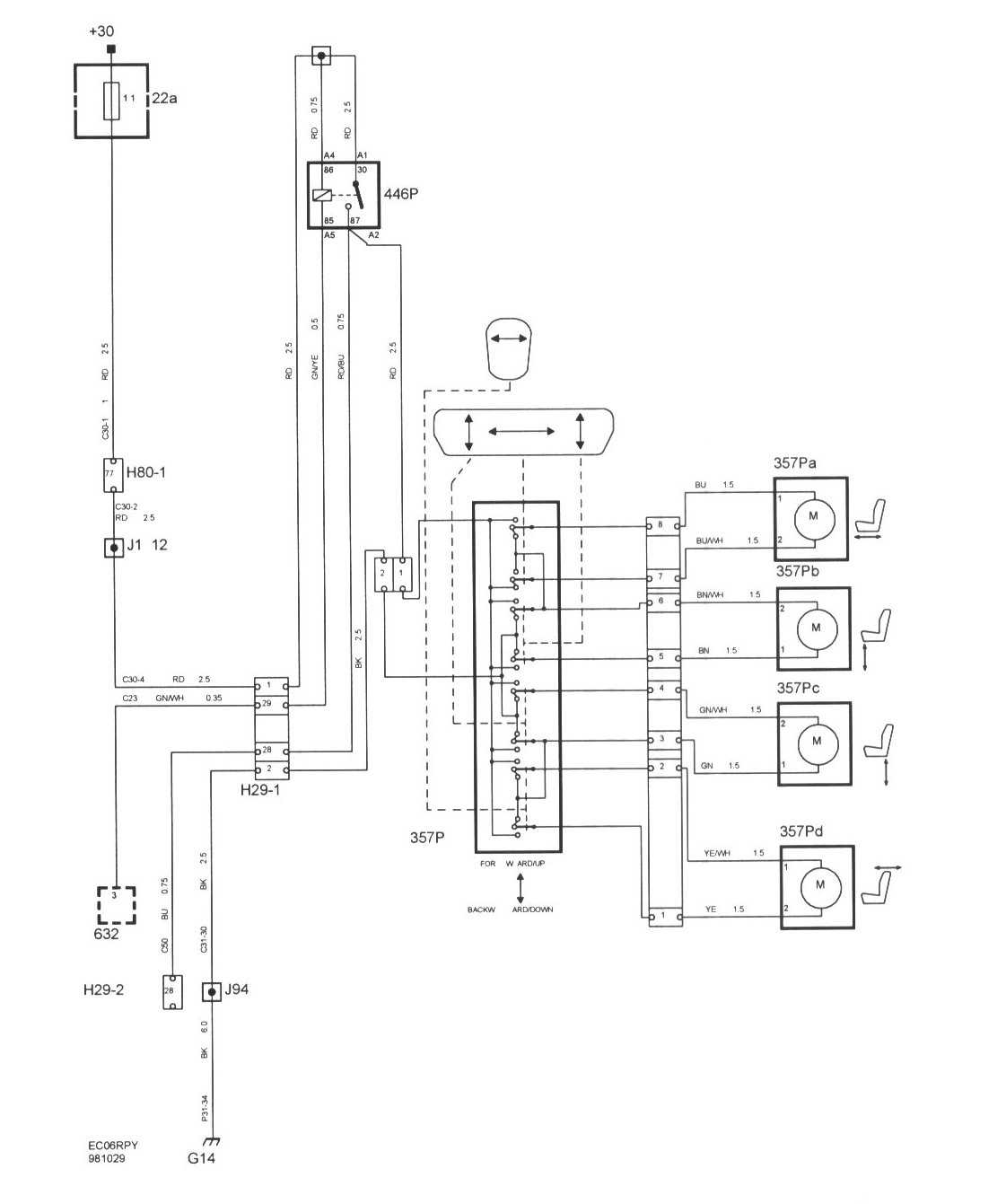

Diagram, RHD:

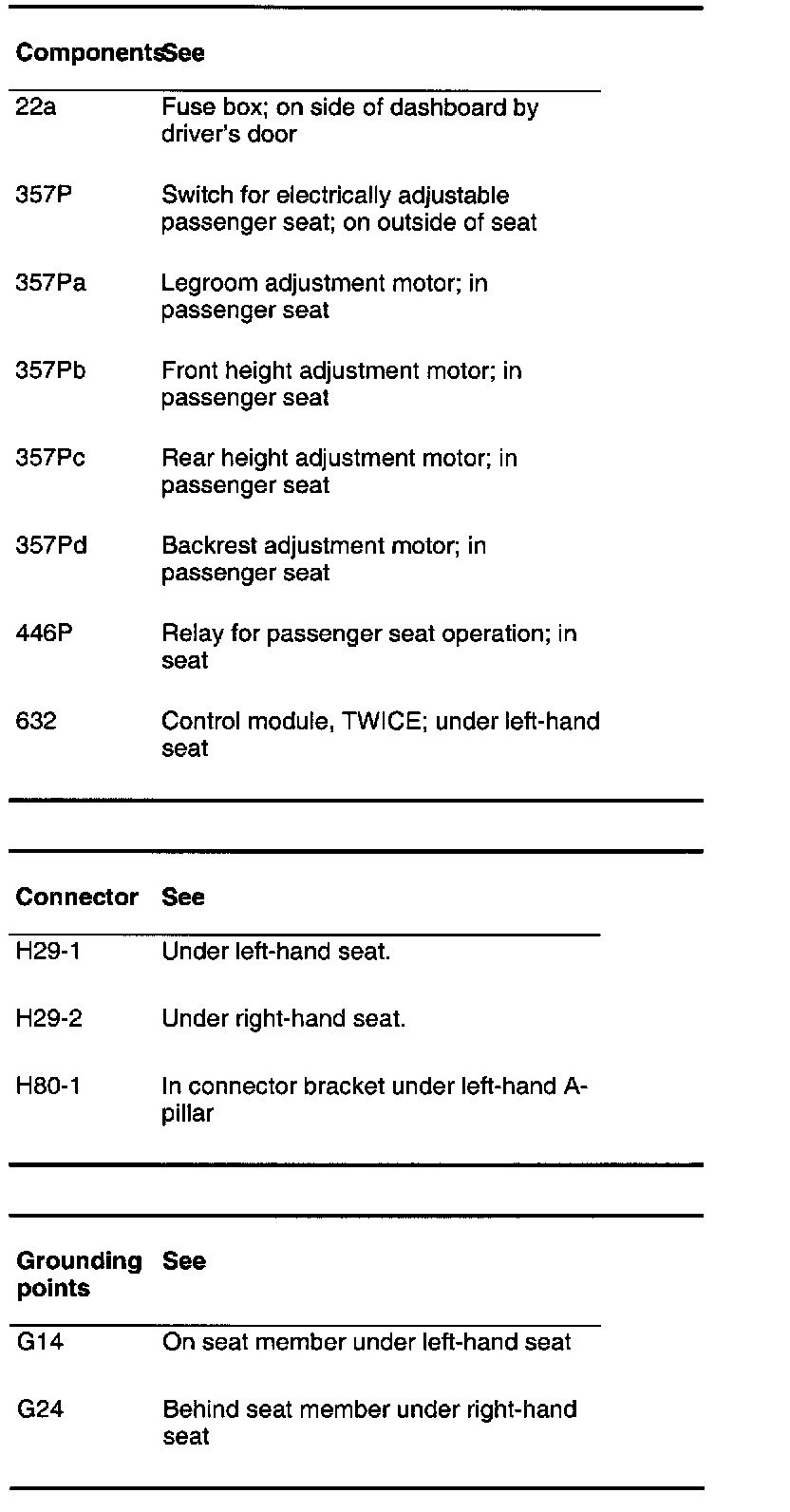

List Of Components, RHD, Part 1:

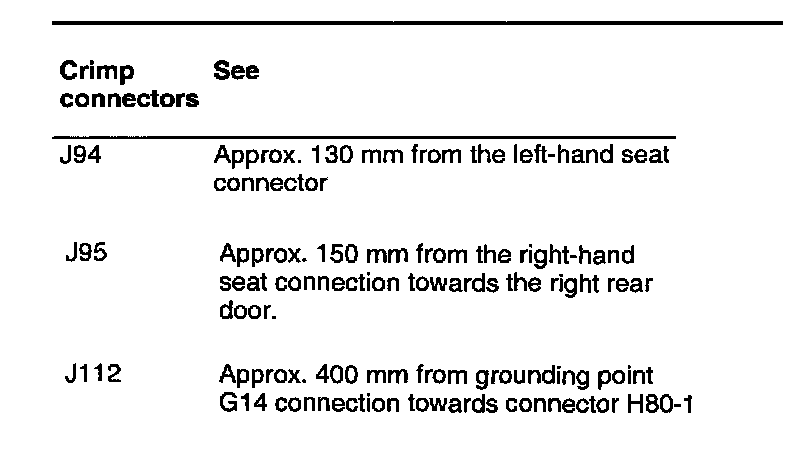

List Of Components, RHD, Part 2:
