Heated Rear Seats

Heated rear seat

List of components

16 Rheostat for instrument lighting; in light switch panel between steering wheel and driver's door
22a Fuse box; on dashboard short side at driver's door
25 Hazard light switch; on centre dashboard outlet
64RL Heating pad; in left-hand rear seat
64RR Heating pad; in right-hand rear seat
252R Switch for heated rear seat; in rear of centre console between seats
511 Relay, electrically heated rear seat, in main relay box in dashboard.
541 SID; dashboard centre
628 DICE control module; in dashboard relay box
632 TWICE control module; under left-hand seat

80-pin connectors
H80-1 In connector console under left-hand A-pillar

Grounding points
G5 Under left-hand corner of rear seat.
G41P Left grounding screw on centre knee protection bar (in passenger compartment)

Crimped connections
J43 (LHD) Approx. 140 mm from SID connection to grounding point G42.
J43 (RHD) Approx. 150 mm from SID connection to ignition switch.
J65 (LHD) Approx. 40 mm from MIU connection (20 pin contact) to its 12 pin contact
J65 (RHD) Approx. 120 mm from MIU connection (12 pin contact) to the radio switch
J88 (LHD) Approx. 10 mm from grounding point G41S connection to SID
J88 (RHD) Approx. 160 mm from grounding point G41S connection to MIU
J89 (LHD) Approx. 70 mm from grounding point G41S connection to radio switches
J89 (RHD) Approx. 85 mm from grounding point G41S connection to radio

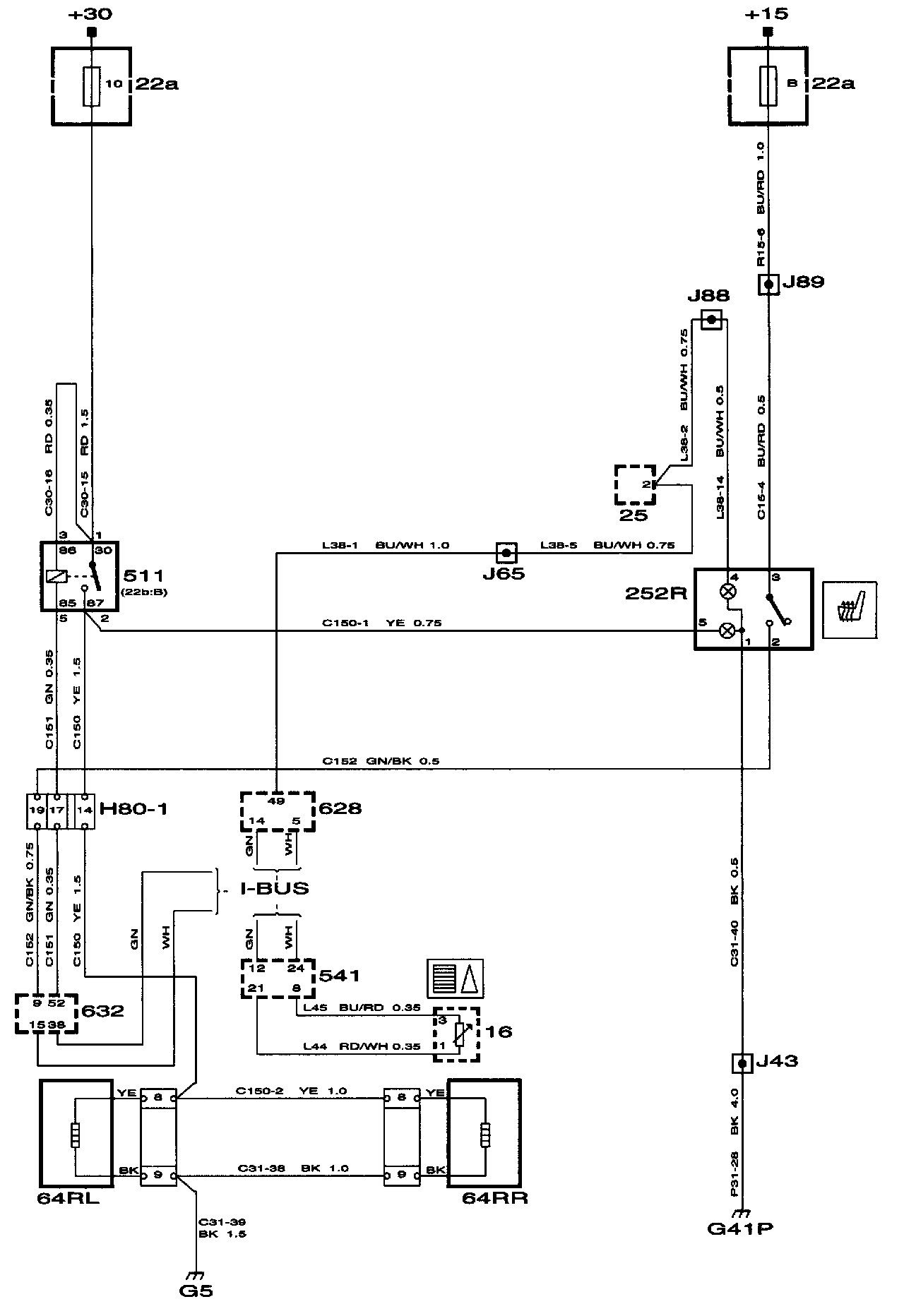

Heated Rear Seat, Wiring Diagram
