FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saab
>>
2000
>>
9-5 SE Sedan (9600) V6-3.0L Turbo (B308)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>

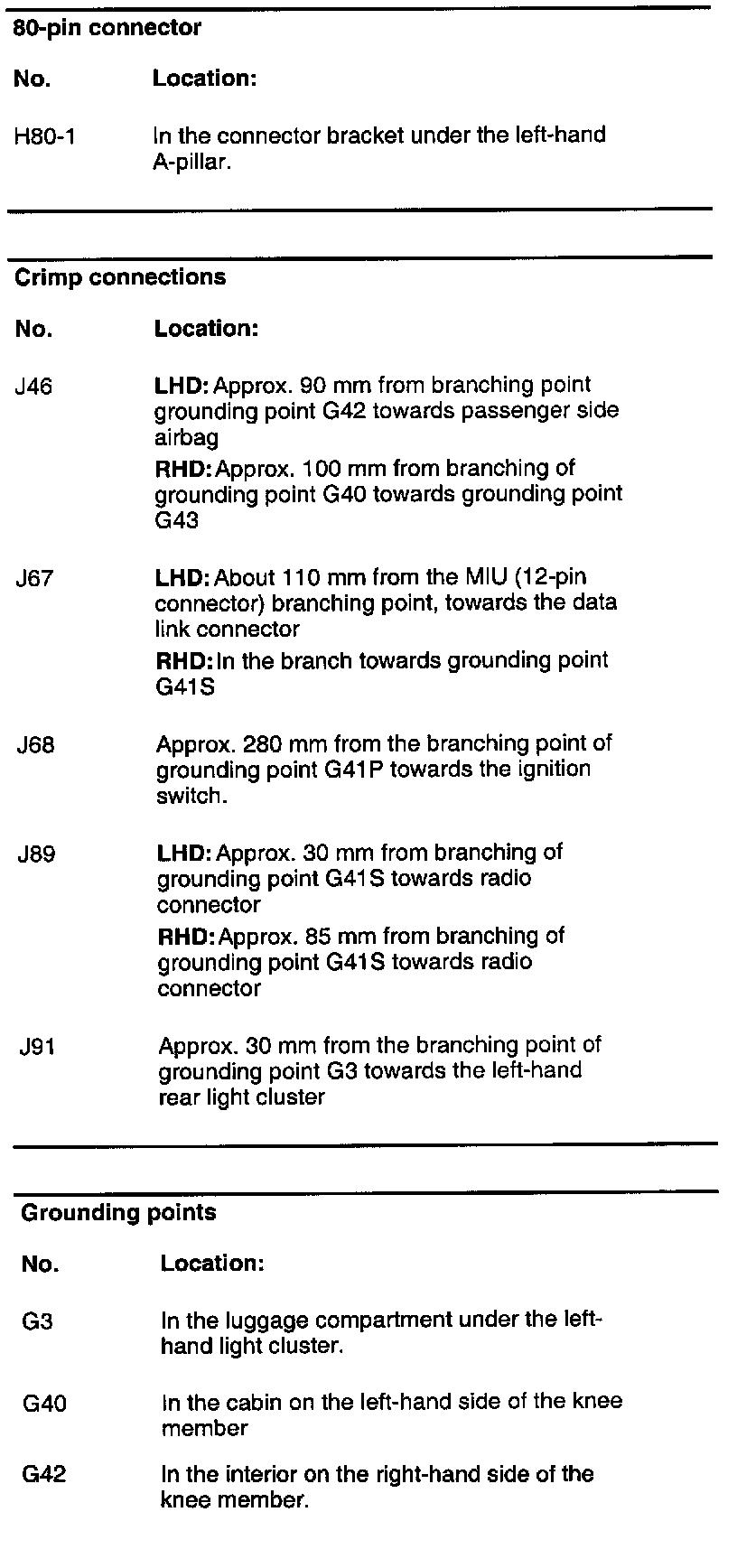

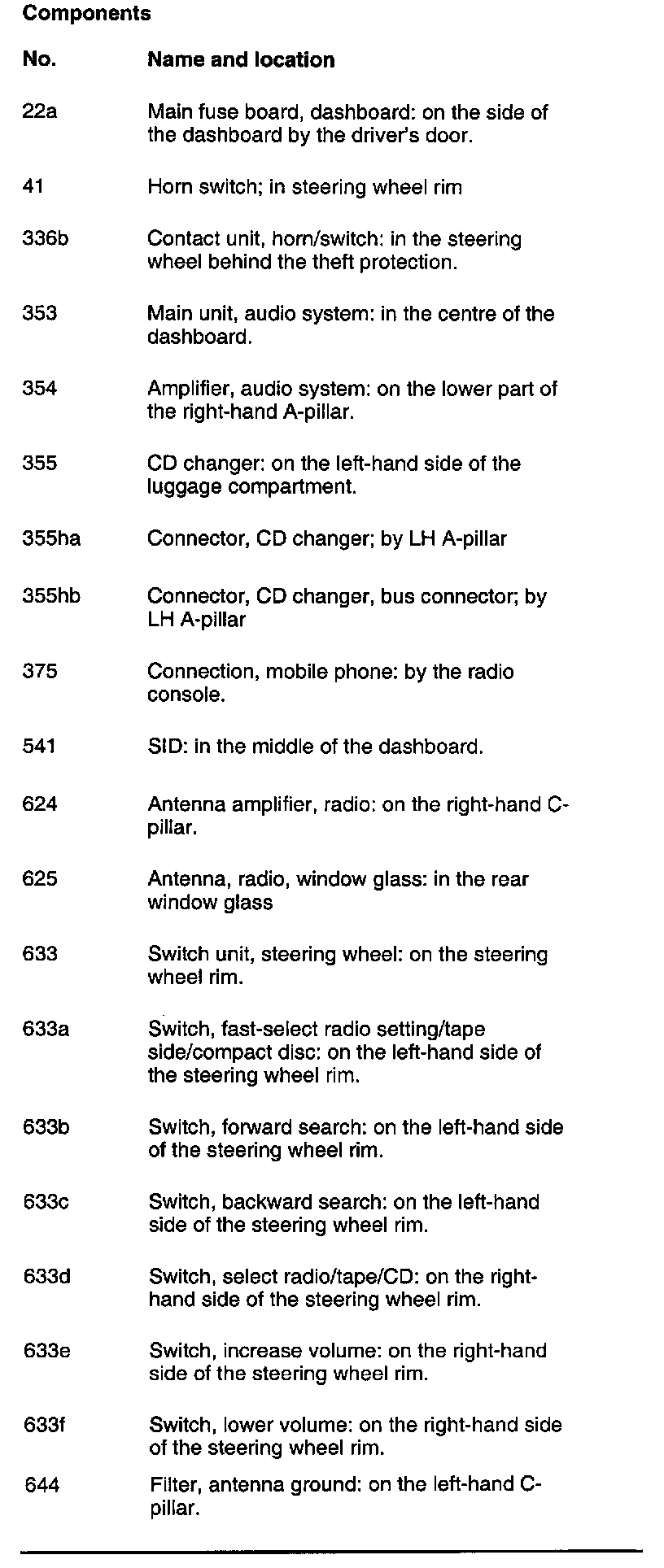

Integrated Main Unit (4D)
Integrated Main Unit (4D)
Integrated Main Unit (4D):
