Home >> Saab >> 2000 >> 9-5 SE Sedan (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Turn Signals >> Direction Indicators, Hazard Flashers, 4D, US/CA Market

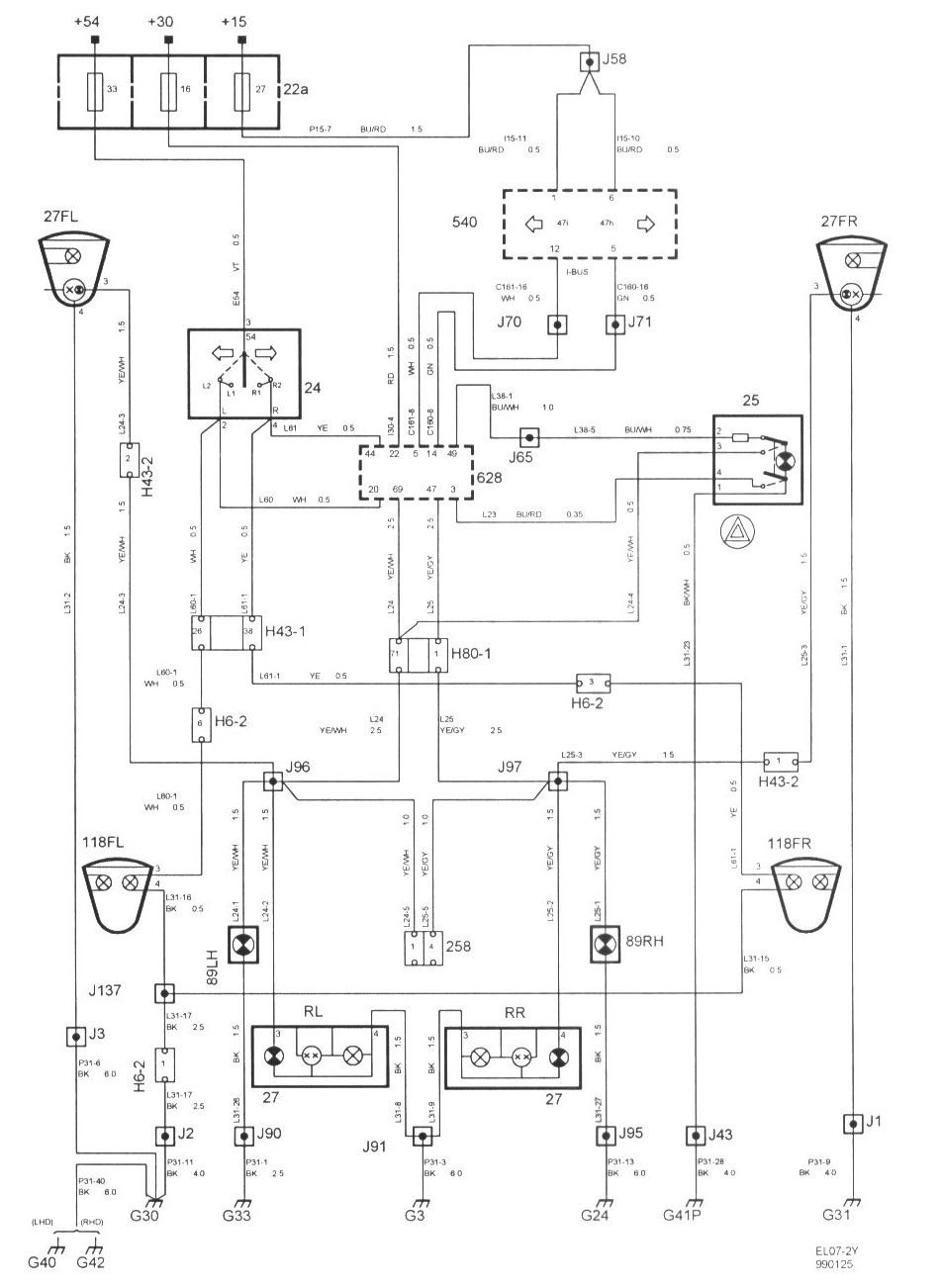

Direction Indicators, Hazard Flashers, 4D, US/CA Market
