TCS Off Warning Lamp Does Not Come on

Fault Systems
Lamp test is conducted when ignition is turned on. TCS OFF indicator lamp should be on for about 3 seconds. TCS OFF indicator lamp does not come on.

Conditions

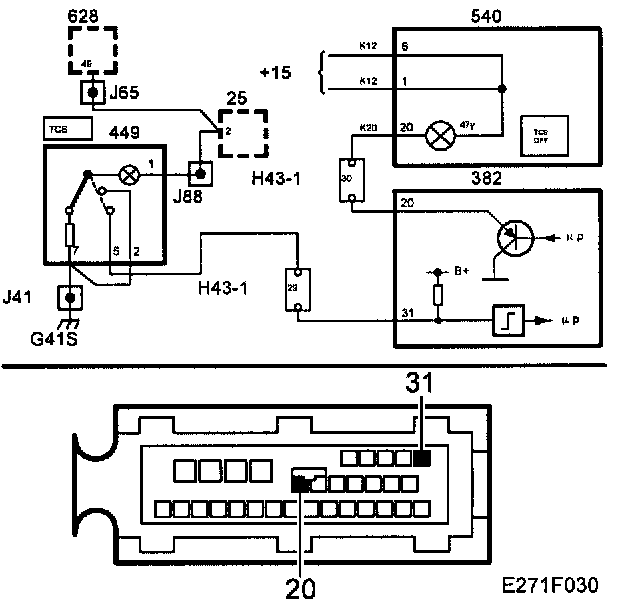

Fault in the circuit between TC/ABS control module pin 20 and main instrument unit pin 20 (K20).

Diagnostic help
The TCS OFF warning lamp can be activated with the diagnostic too].
^ Select "Activate"
^ Select "TCS OFF Lamp"
