TCS Lamp Does Not Come on

Fault Systems Lamp
test is conducted when ignition turned on. TCS indicator lamp should be on for about 3 seconds. TCS indicator lamp does not come on.

Conditions

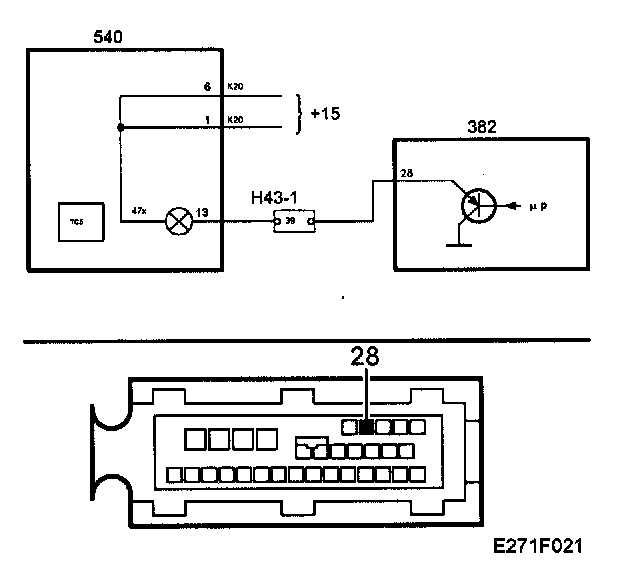

Fault in the circuit between TC/ABS control module pin 28 and main instrument unit pin 13 (K20).

Diagnostic help
The TCS lamp can be activated with the diagnostic tool.
^ Select "Activate"
^ Select "TCS Lamp"
