ABS Warning Lamp Does Not Come on

Fault Systems
Lamp test is conducted when the ignition is turned on. ABS warning lamp should light for about 3 seconds. ABS warning lamp does not come on.

Conditions

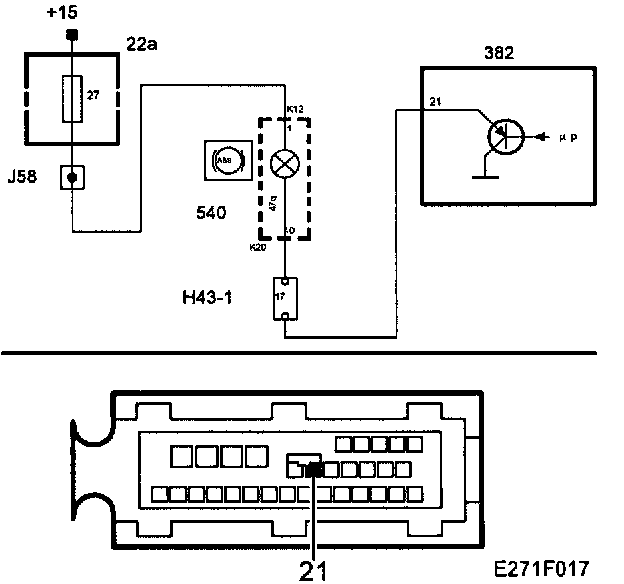

Fault in the circuit between TC/ABS control module pin 21 and the warning lamp in the main instrument unit.

Diagnostic help
The ABS warning lamp can be activated with the diagnostic tool.
^ Select "Activate"
^ Select "ABS lamp"
