ABS Warning Lamp Constantly on

Fault Systems
ABS warning lamp constantly on. No DTCs are set.

Conditions

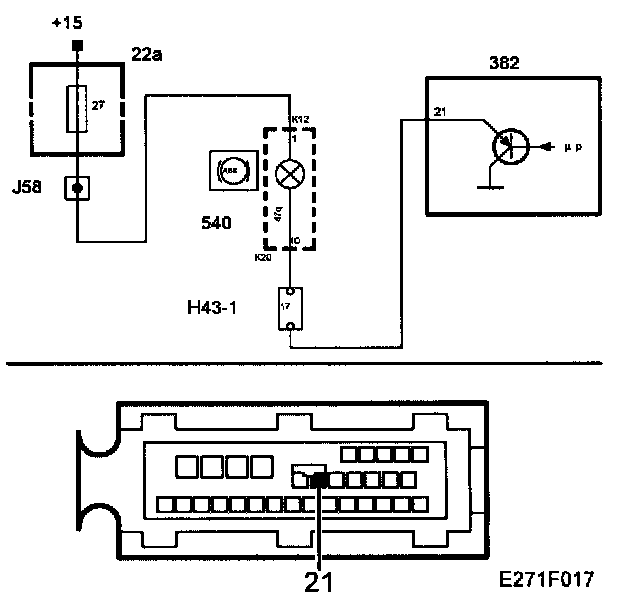

^ Shorting to ground in the lead between pin 21 of the TC/ABS control module and pin 10 of the main instrument unit (K20).
^ Short-circuit contact strip faulty.

Diagnostic help
The ABS warning lamp can be activated with the diagnostic tool.
^ Select "Activate"
^ Select "ABS lamp"
