Wheel-Speed Signal Absent

Fault Symptoms
Speedometer or cruise-control system not working.

Conditions

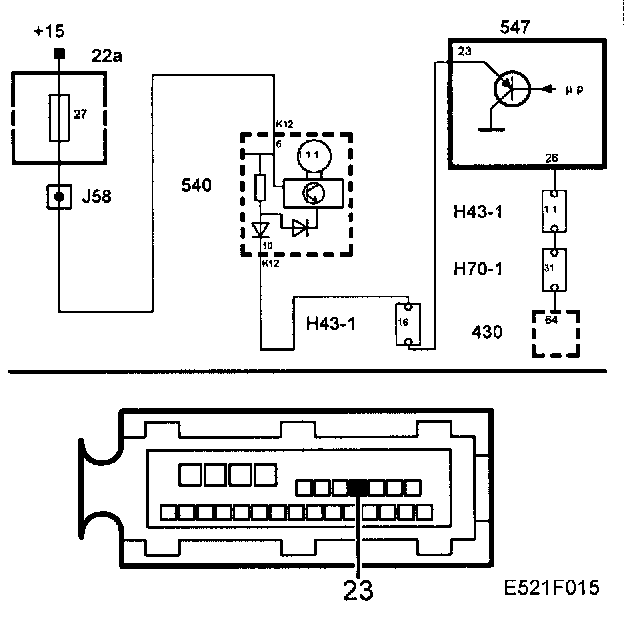

^ Open circuit or short-circuiting between pin 23 on the ABS control module and pin 10 on the MIU (K1 2).
^ Open circuit or short-circuiting between pin 26 on the ABS control module and pin 63 on the Trionic control module.

Diagnostic help
The wheel-speed reading can be obtained from both the ABS control module and the control module receiving the signal.
