TC/ABS 5.3 Wiring Diagram

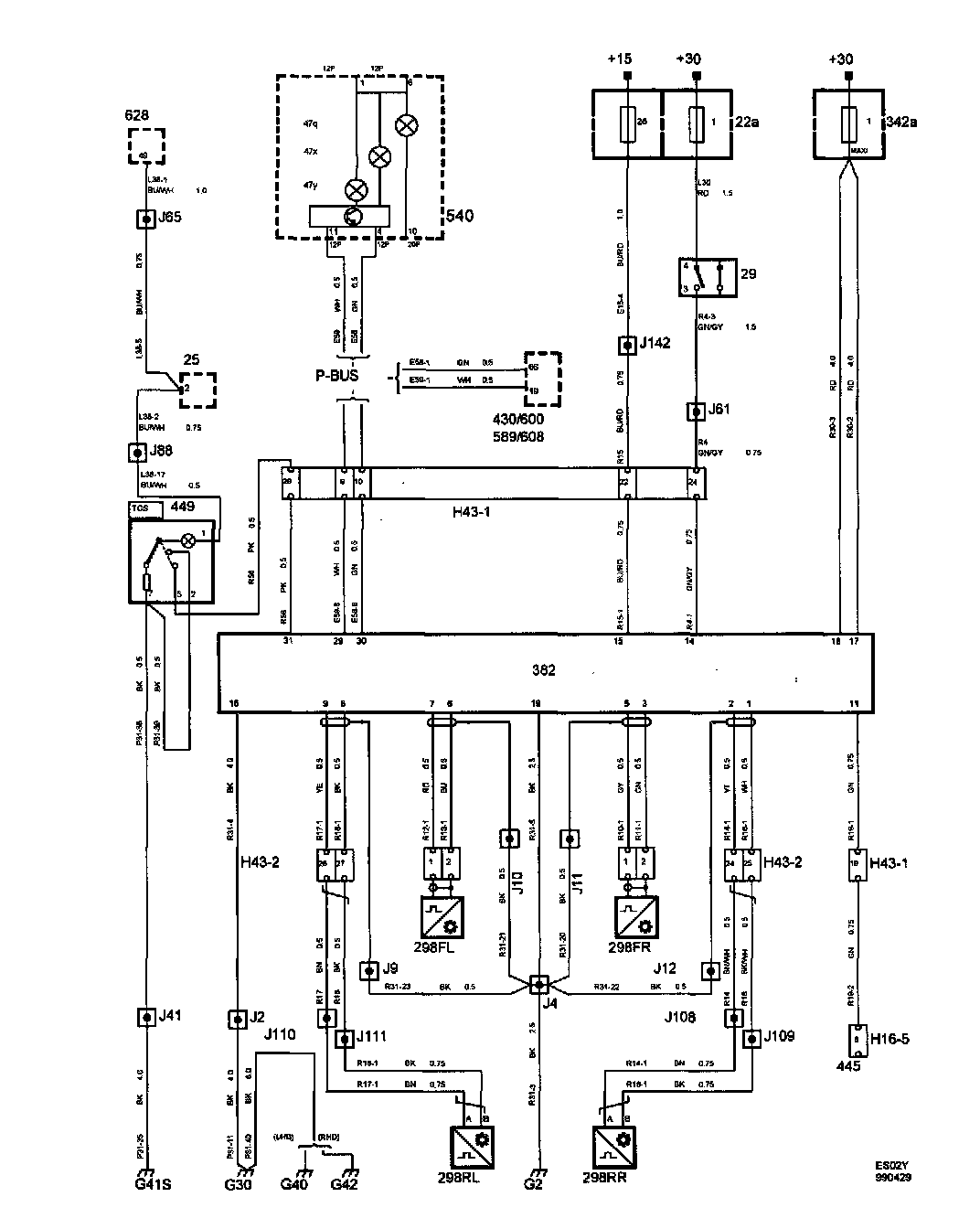

Part 1 Of 4 (Diagram):

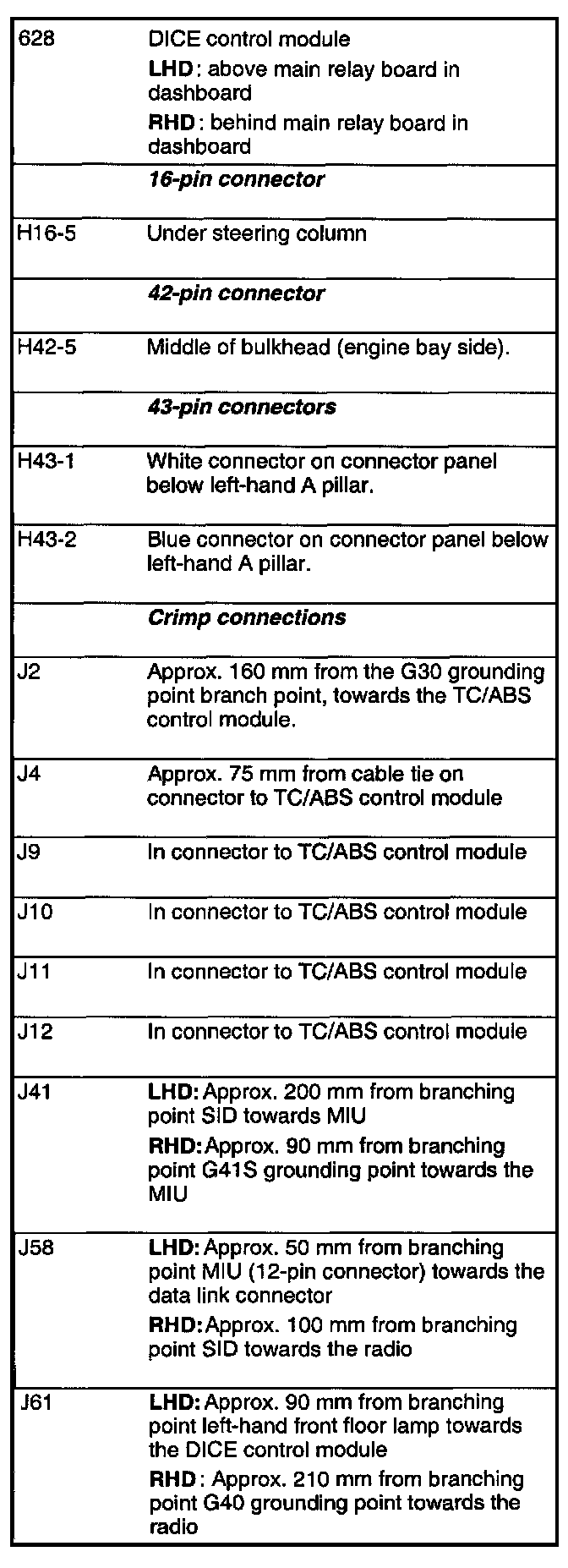

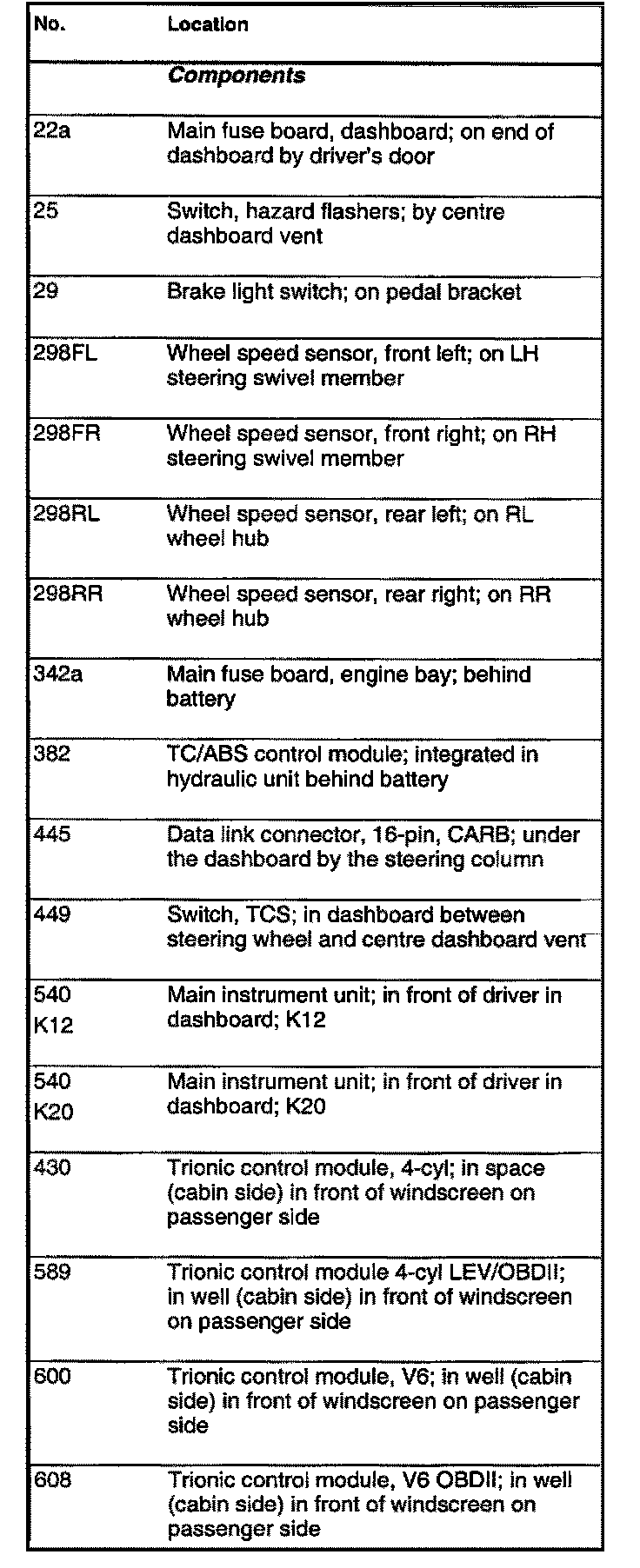

Part 2 Of 4 (Legend):





Part 3 Of 4 (Legend):





Part 4 Of 4 (Legend):
