Armrest, Rear Seat 4D, 5D

Armrest, rear seat 4D

To remove







1 Lower the armrest.

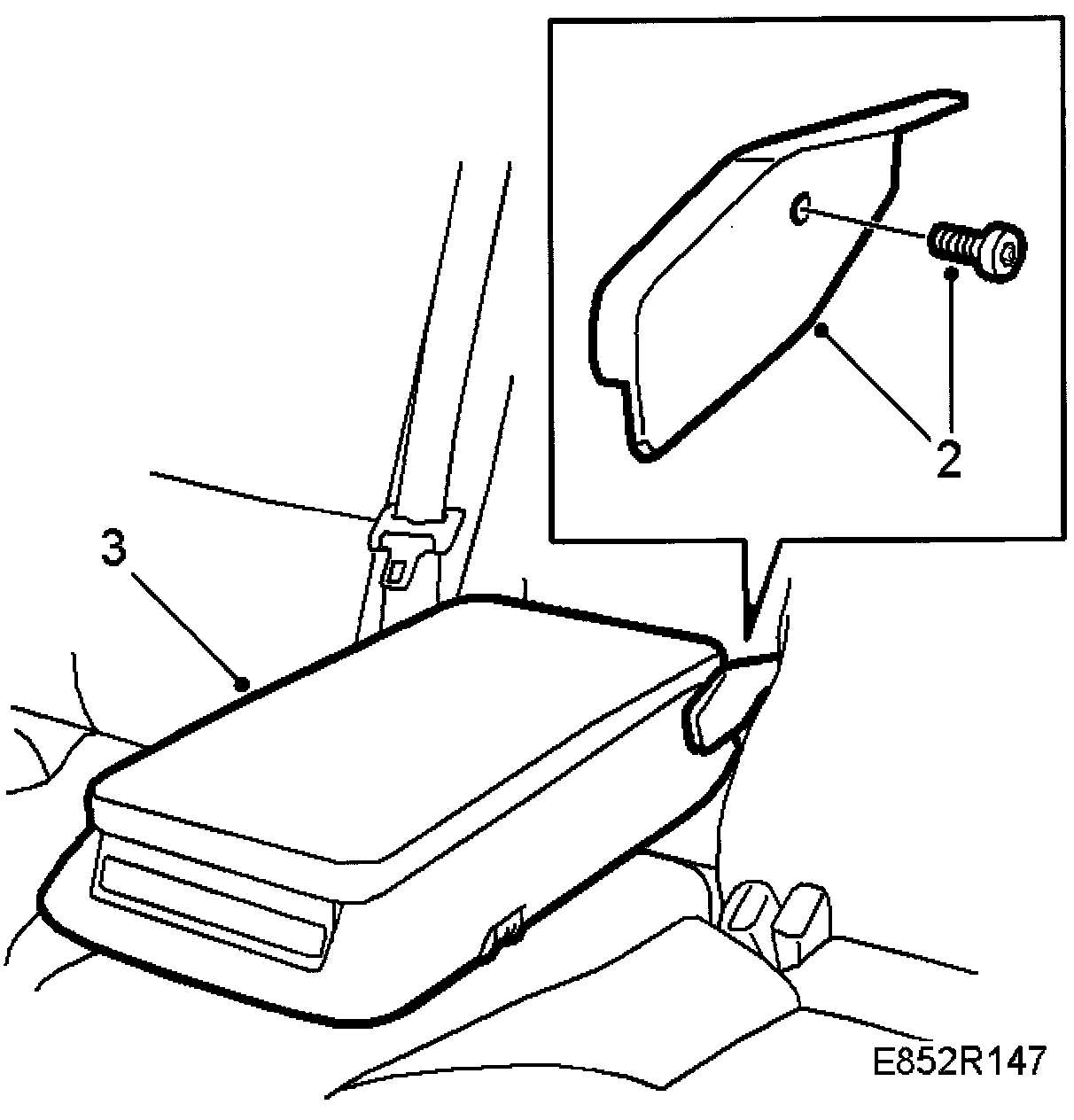

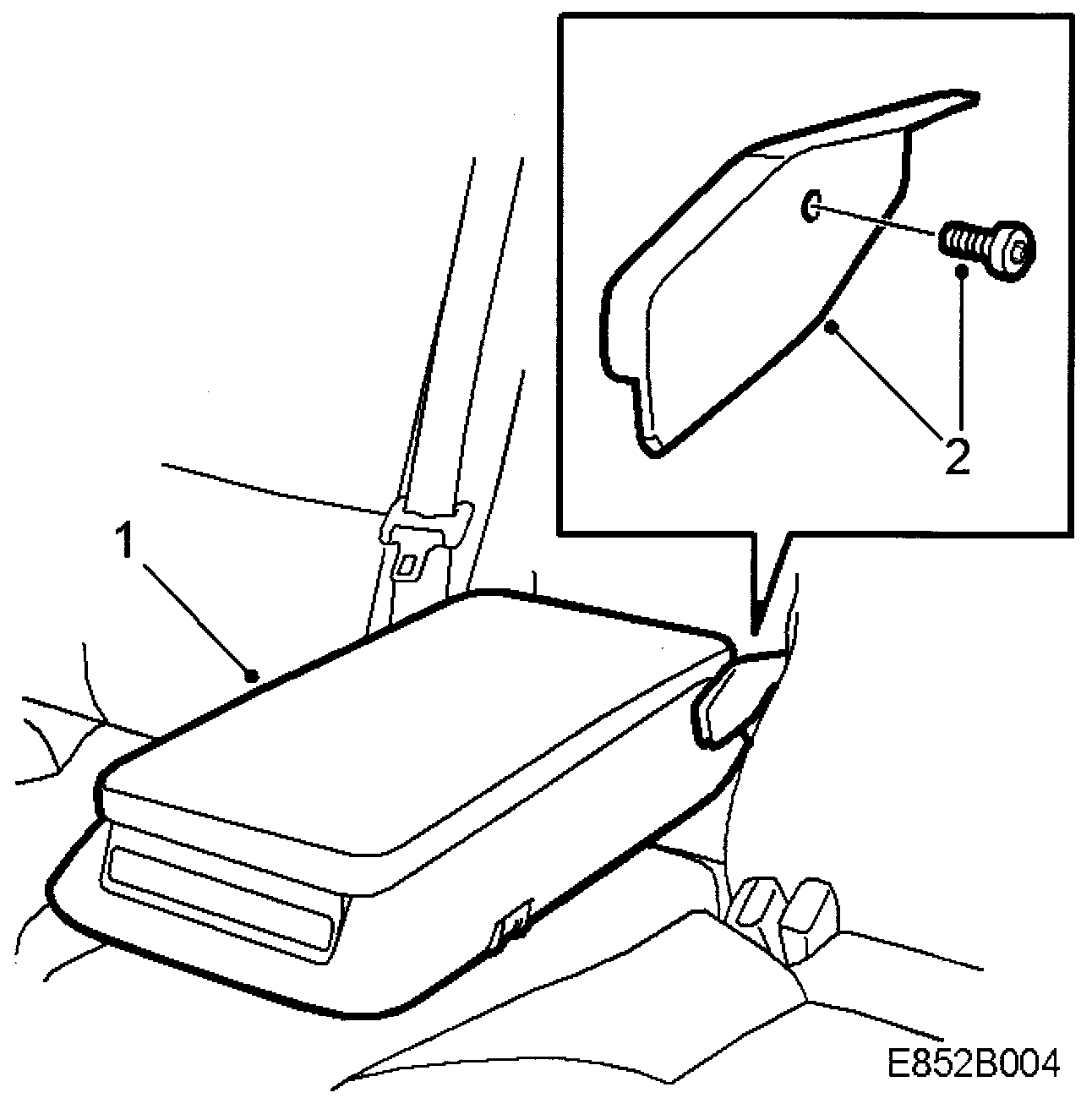

2 Remove the cover plates over the pivot arms.
3 Unscrew the bolts securing the pivot arms to the armrest. Remove the covers from the armrest upholstery.







To fit







1 Fit the covers to the armrest upholstery and screw the armrest to the pivot arms.
2 Fit the cover plates over the pivot arms.







3 Check the function and raise the armrest.

Armrest, rear seat 5D

To remove







1 Lower the armrest.

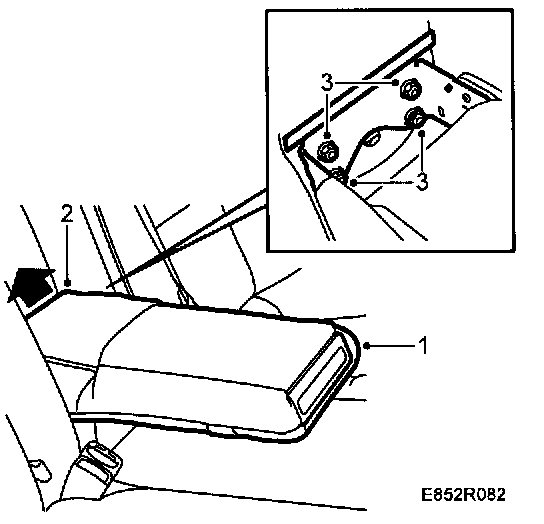

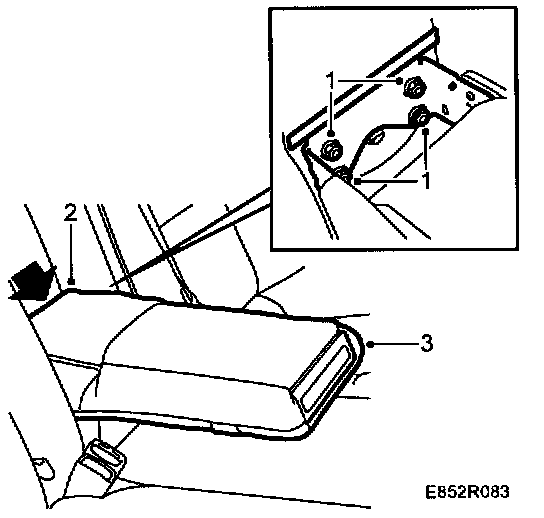

2 Lift off the upholstery tab from the edge of the plate.
3 Remove 4 nuts and lift oft the armrest.

To fit







1 Put the armrest in place over the bolts and tighten the 4 nuts.
2 Hook on the upholstery tabs over the edge of the plate.
3 Raise the armrest.
