Seat Cushion, Rear Seat Replacement

Seat cushion, rear seat

To remove

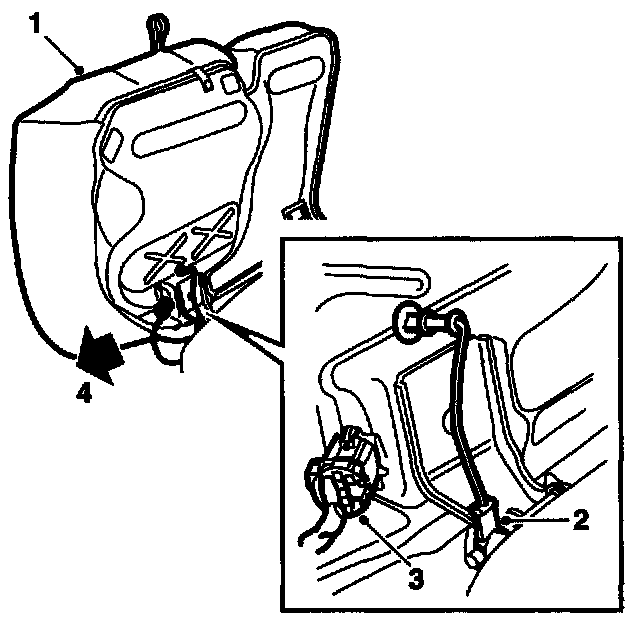

1 Fold the seat cushion up.
2 Release the clip locking the hinge in the side section.
3 Unplug the connector for the heating pad.
4 Pull the seat cushion aside and lift out.

To fit
Fit in reverse order.
