Seat Cushion, Rear Seat

To remove

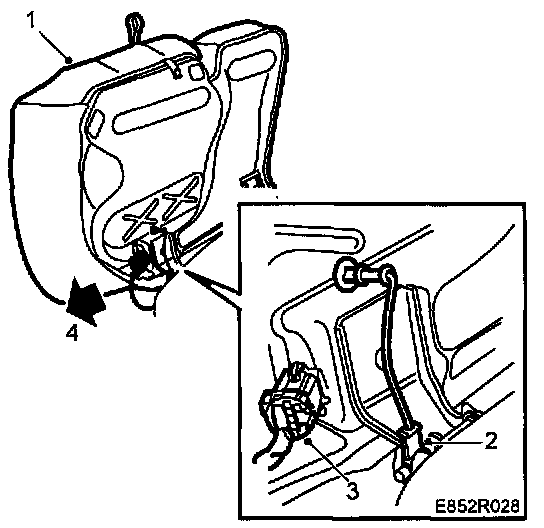

1 Fold up the seat cushion.
2 Release the clip securing the hinge transversely.
3 Unplug the connector for the heating pad.
4 Pull the seat cushion aside and lift it out.

To fit
Fit in reverse order.
