Power Mirror Motor: Service and Repair

Door Mirror, Motor

To remove

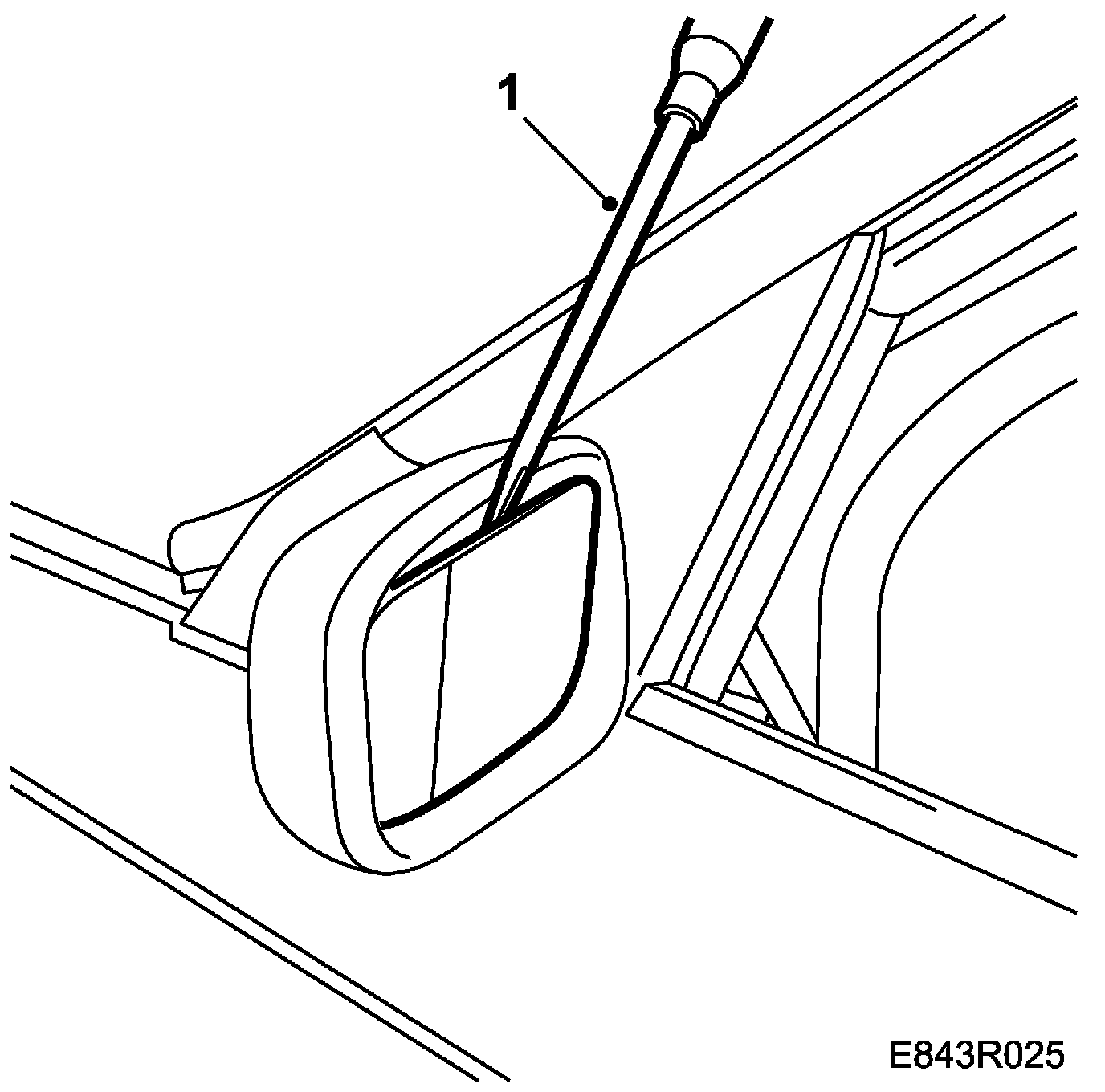

1. Remove the mirror glass with a large flat-headed screwdriver. Unplug the electrical connections.

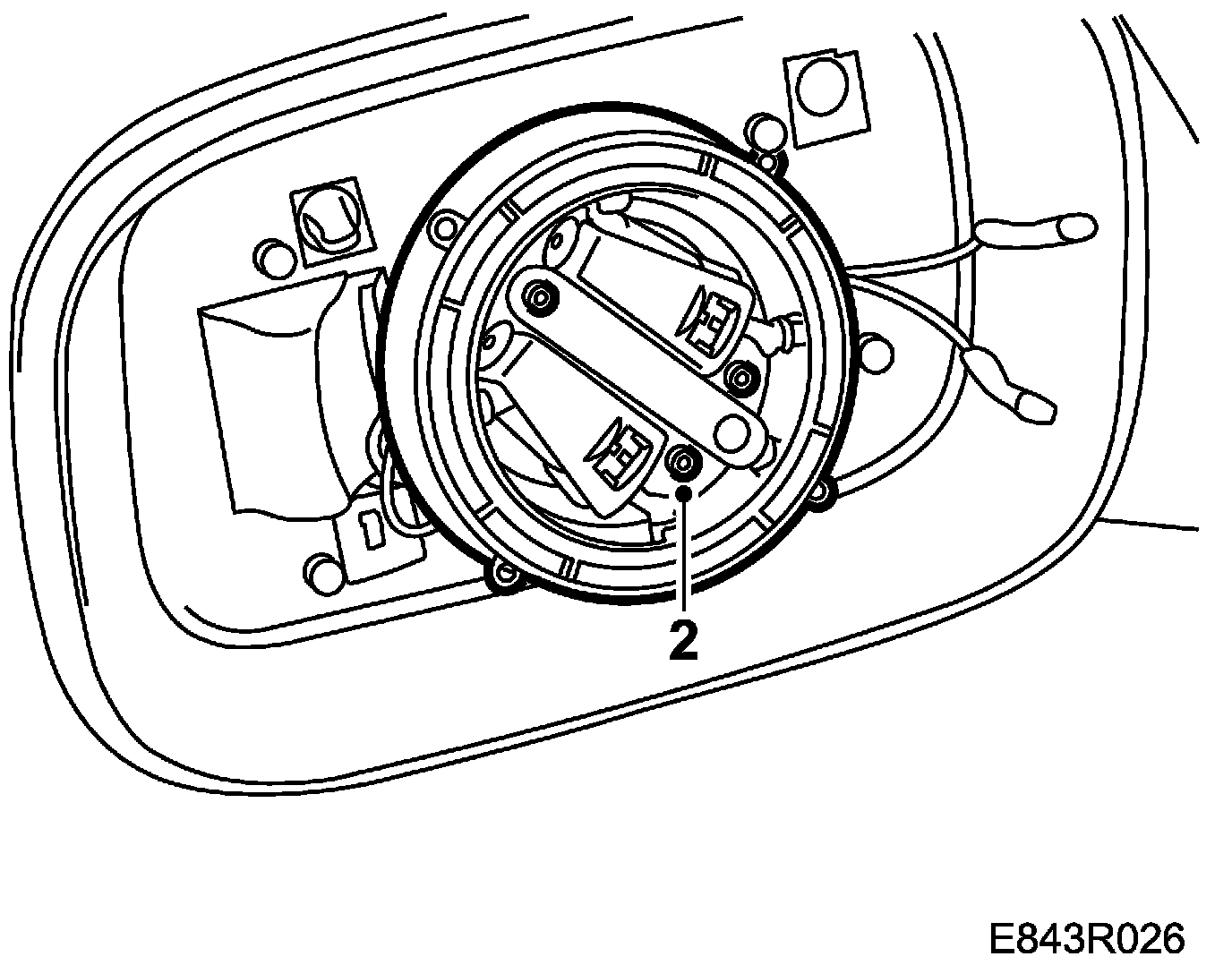

2. Undo the three retaining screws and lift out the motor.







3. Unplug the connectors to the motor.

To fit

1. Plug in the connector to the motor.
2. Lift in the motor and fit the 3 screws.
3. Connect the leads and press home the mirror glass.
