Electrically Heated Rear Window/Door Mirrors (Cars With MCC)

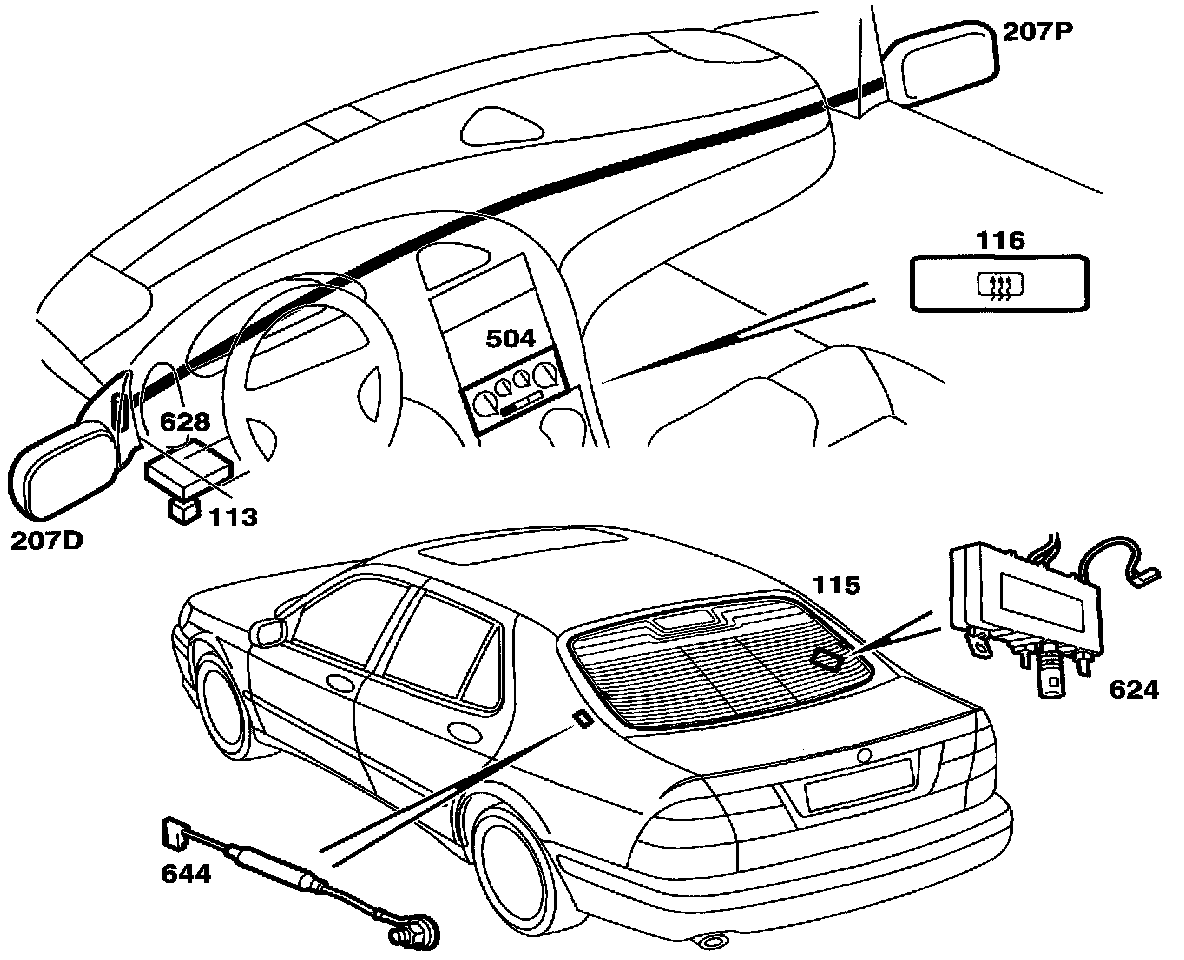

System Overview, Electrically Heated Rear Window and Door Mirrors (Cars With MCC)

^ Control module, DICE (628)
^ Electrically heated rear window, switch (116)
^ Electrically heated rear window, relay (113)
^ Electrically heated rear window, element (115)
^ Electrically heated door mirrors, elements (207)
^ Control panel, heating (504)
^ Aerial amplifier (624)
^ Aerial filter (644)
